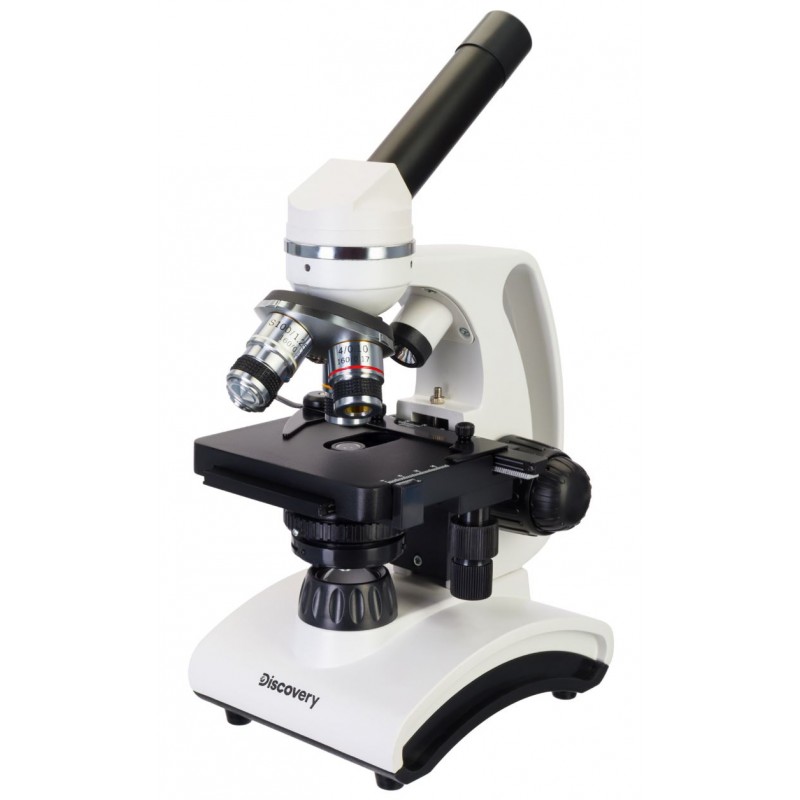

Discovery Atto Polar microscope with book

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

The Discovery Atto Polar microscope is designed for studying the microbial world with magnification settings of 40x to 1000x. Transmitted or reflected light are available as well as immersion oil. The device will be a handy assistant in hobbies, college studies and even laboratory experiments. A knowledge book, “The Invisible World”, is included in the kit.

The microscope is equipped with a rotating monocular head with a 45° incline, making long observations or group experiments more comfortable. When several people need to view the same specimen, the head can be turned accordingly without needing to move the whole unit.

Magnification includes settings from 40x to 1000x. The 10x wide-field eyepiece comes with a pointer. The achromatic objectives 4x, 10x, 40x and 100x are conveniently loaded in the revolving nosepiece enabling fast adjustment of magnification power. Objectives 40x and 100x are spring-loaded. In addition, both coarse and fine focusing are included.

The microscope stage is equipped with a mechanical stage for convenience. The Abbe condenser with iris diaphragm and a filter holder are located under the stage. The illumination system consists of two parts: upper and lower illumination with variable intensity. Illumination can be powered by batteries (not included) or plug-in (AC adapter in kit).

The book, “The Invisible World”, is a wonderful graphic scholastic that tells about microscopes and the microbial world. It includes scientific theories and practicable advice on how to conduct experiments in a home setting. It perfectly fits the Discovery Atto Polar microscope.

Features:

Biological microscope with magnification settings of 40x to 1000x

Achromatic objectives, wide-field eyepiece with center field pointer

Dual LED illumination with variable intensity

Stage with a mechanical stage, coarse and fine focusing

AC adapter or battery powered

Illustrated knowledge book included in kit

The kit includes:

• One microscope
• One eyepiece WF 10x with reticle
• Achromatic objectives 4x, 10x, 40x spring, 100x spring (immersion oil)
• One bottle with immersion oil
• One AC adapter and power cord
• One dust cover
• One book, “The Invisible World”
• User manual and warranty card

Specifications

• Product ID 77988
• Brand Discovery
• Warranty, years 10
• EAN 5905555013534
• Package size (LxWxH), cm 35x22x17
• Shipping Weight, kg 2.63
• Type biological, light/optical
• Head monocular
• Optics material optical glass
• Nozzle 360 ° rotatable
• Head inclination angle 45 °
• Magnification, x 40 – 1000
• Eyepiece tube diameter, mm 23.2
• Eyepieces WF10x with a pointer
• Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
• Revolving nosepiece for 4 objectives
• Stage, mm 105×95
• Stage moving range, mm 75/20
• Stage features mechanical double-layer
• Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
• Diaphragm iris
• Focus coaxial, coarse (0.5 mm) and fine (0.002 mm)
• Body metal
• Illumination LED
• Brightness adjustment ✓
• Power supply 110–240V, 3 AA batteries (not included)
• Power supply: batteries/built-in battery yes
• Light source type lower: 1W; higher 0.1W
• Operating temperature range,°C 5...+40
• Additional LED dimmer
• User level beginners, experienced users
• Assembly and installation difficulty level easy
• Application school/educational, laboratory/medical
• Illumination location dual
• Research method bright field
• Pouch/case/bag in set dust cover
