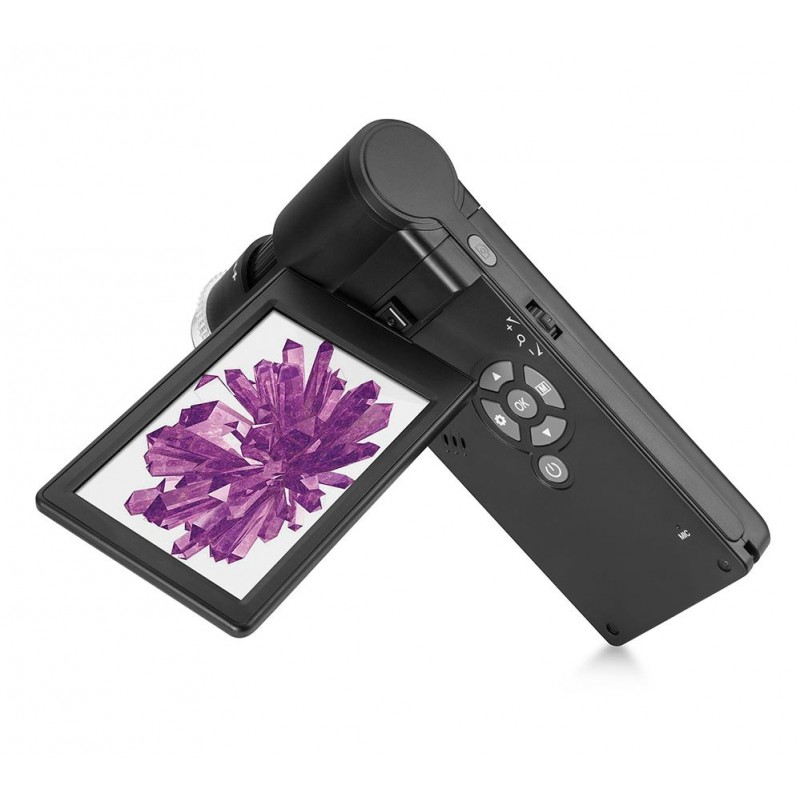

Levenhuk DTX 700 Mobi Digital Microscope

Levenhuk DTX 700 Mobi is a portable microscope that is practical to take with you. It easily fits in a backpack due to its design; it is convenient to hold the microscope with one hand. This microscope can be an excellent research tool for a kid due to the lightweight design. Yet the main application purpose of Levenhuk DTX 700 Mobi is assistance in professional activity. It is useful for studying artworks, minerals, coins, and sections of metals. It can also be used for quality assessment of soldering and repairing appliances. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.

An image is formed by a camera with a 5MP sensor. It transmits a high-resolution color image to a built-in LCD screen. A flip screen can be easily set in the most convenient position for work. In addition, the microscope can capture images and record videos (a memory card is required, which is purchased separately). It is performed by one button on the body. If necessary, Levenhuk DTX 700 Mobi can be connected to an external device: a monitor, a TV, or a computer. All of the necessary cables are already included in the kit.

Before connecting a microscope to a computer, do not forget to install the included software. It will give you access to extended features, allow for measuring linear and angular sizes of objects as well as apply texts and images on pictures.

The microscope allows for working with only non-transparent specimens; a LED illumination with adjustable brightness is used as a light source. There is a polarizing filter, which allows for reducing glare and parasite reflections during observing shiny objects. The magnification is smoothly variable in a range from 10x to 300x, a digital zoom allows for observing at up to 1200x magnification. The microscope is powered by a battery (which provides up to 2.5 hours of continuous work) or by an AC power supply.

Features:

Small portable microscope with a 5M camera

Rotatable color LCD screen, button-type control

LED illumination with adjustable brightness

Built-in polarizing filter

Ability to record videos and take pictures and transmit an image to an external screen

Image processing software with a measurement function

Powered by a battery or an AC power supply

The kit includes:

• Microscope
• Adapter (100–240 V, 50/60 Hz)
• Li-ion battery
• USB cable
• AV cable
• Tripod
• Pouch
• Software CD
• User manual and lifetime warranty

Recommendations on using the software: in order for the PortableCapture Plus program (and its other versions) to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220-240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Levenhuk DTX 700 Mobi Microscope is not compatible with external digital cameras.

Specifications

• Product ID 75076
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555004396
• Package size (LxWxH), cm 20.5x20x7
• Shipping Weight, kg 0.66
• Type digital, portable
• Head digital screen/PC monitor
• Optics material optical glass
• Nozzle 4" rotatable color LCD screen
• Magnification, x 10–300, with a digital zoom 10–1200
• Focus manual, 0–100mm
• Body plastic
• Illumination LED
• Brightness adjustment ✓
• Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
• Power supply: batteries/built-in battery yes
• Light source type 8 LEDs
• Operating temperature range,°C -10...+65
• Additional a tripod with adjustable height is included (0.5–3 cm), battery-operated work: 2.5 hours; charging time: 4 hours
• Megapixels 5.0
• Video recording yes
• Frame rate 30 frames per second
• Image format *.jpg
• Software, drivers photo and video processing software with objects measurement feature
• Output HDMI/TV, USB 2.0
• System requirements OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1GHz, 512MB RAM, 512MB video card, USB 2.0 port, CD-ROM
• Ability to connect additional equipment microSD card up to 32 GB (not included)
• computer: via an USB cable (included) TV: via an AV cable (included)
• User level beginners, experienced users
• Assembly and installation difficulty level easy
• Software language Chinese, English, French, German, Japanese, Russian, Spanish
• Video format *.avi
• Application for applied research
• Illumination location upper
• Research method bright field
• Pouch/case/bag in set pouch
