Levenhuk DTX 500 LCD Digital Microscope

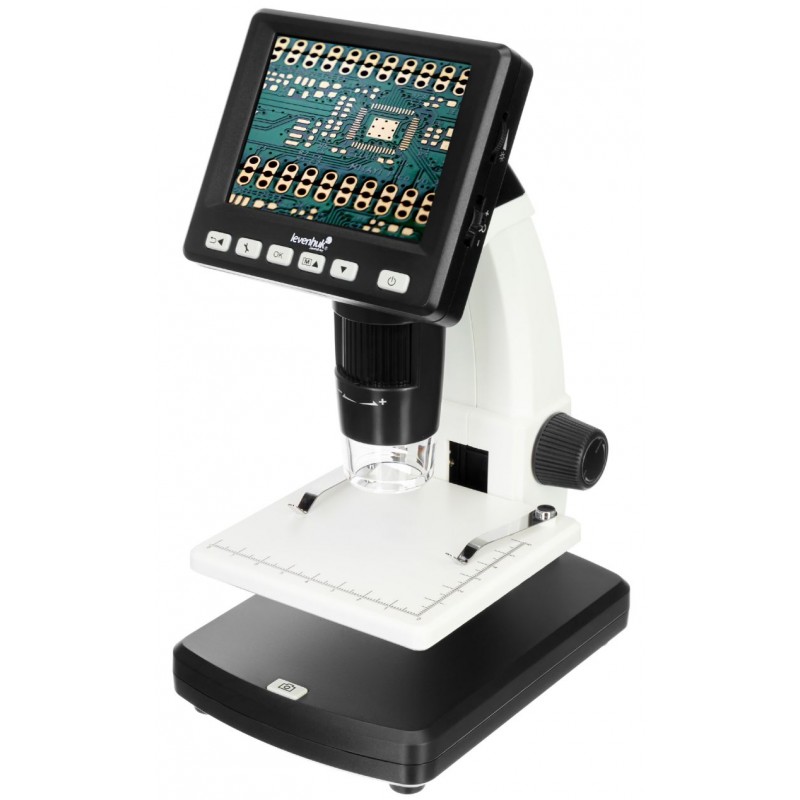

The Levenhuk DTX 500 LCD Digital Microscope enhances your microscopic exploration with its 3.5-inch LCD display. You can magnify your samples from 20x up to 500x, capturing the intricate details of everyday objects. With the capacity to save your observations in image or video format on a microSD card, your work is effortlessly preserved. This microscope is conveniently equipped with 8 built-in LED lights for a well-illuminated working surface, while ensuring energy efficiency. Its added feature of adjustable brightness caters to your specific lighting requirements. This tool makes scientific discovery more accessible, interesting and productive, perfect for hobbyists, educators and students alike.
305.66 $
Tax included

248.5 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Levenhuk DTX 500 LCD Digital Microscope with built-in 3.5-inch LCD display allows you to study samples under magnification of 20x to 500x and save results of your work in image or video format to a microSD card. 8 built-in LED lights evenly light the working surface and ensure minimal energy consumption. The illumination system also features a brightness adjustment.

The stage of this microscope is equipped with a measuring scale (8 cm along the x-axis, 6 cm along the y-axis) and two clips to secure the sample under the camera.

The high-quality LCD panel provides crystal-clear images and has buttons that allow you to quickly change brightness, exposure and color balance. You can easily connect the Levenhuk DTX 500 LCD to your PC using the USB cable included in the kit and copy all the files created during your observations to your hard drive. This amazing model also features an AV output to transfer observed images to a TV screen or projector in real time.

Levenhuk DTX 500 LCD Digital Microscope is powered by the Li-ion battery included in the kit, which provides for up to 2 hours of standalone work. The microscope may also be powered via the USB port of your PC.

Features:

3.5" color LCD display

Support of microSD cards with capacity up to 32 Gb

PC connection via USB 2.0 interface

AV output for connecting to TV or projector

Able to take photos/videos

Automatic exposure and white balance

8 white LEDs with adjustable brightness

4x digital zoom

Li-ion rechargeable battery

Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples

Сompatible with Windows and Mac OS

The kit includes:

  • Levenhuk DTX 500 LCD Microscope
  • Adapter*
  • Li-ion rechargeable battery
  • USB cable
  • AV cable
  • Cleaning wipe
  • Calibrating scale
  • Software CD
  • User manual and lifetime warranty

Recommendations on using the software:

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Levenhuk DTX 500 LCD Digital Microscope is not compatible with external digital cameras.

* Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Specifications

  • Product ID 61024
  • Brand Levenhuk, Inc., USA
  • Warranty, years lifetime
  • EAN 5905555004334
  • Package size (LxWxH), cm 20x14x33
  • Shipping Weight, kg 1.4
  • Type digital
  • Head digital screen/PC monitor
  • Optics material optical glass
  • Nozzle 3.5" color LCD screen (fixed)
  • Magnification, x 20 – 500
  • Stage, mm 95x98
  • Stage moving range, mm 0–40, vertical
  • Stage features with a measuring scale, with clips
  • Focus manual, 0–150mm
  • Body plastic
  • Illumination LED
  • Brightness adjustment ✓
  • Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
  • Power supply: batteries/built-in battery yes
  • Additional battery-operated work: 2 hours; charging time: 2 hours
  • Megapixels 5 (with interpolation up to 12)
  • Video recording yes
  • Frame rate 30 frames per second
  • Image format *.jpg
  • Software, drivers photo and video processing software with objects measurement feature
  • Output USB 2.0
  • System requirements OS Windows 7/8/10, Mac 10.6 ~ 10.15; 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM
  • Ability to connect additional equipment supports microSD memory cards up to 32GB (not included)
  • User level beginners, experienced users
  • Assembly and installation difficulty level easy
  • Video format *.avi
  • Application for applied research
  • Illumination location upper
  • Research method bright field
  • Maximum resolution 12MP, 8MP, 5MP, 3MP, 1.3MP, VGA
