Discovery Artisan 512 Digital Microscope
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.
We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

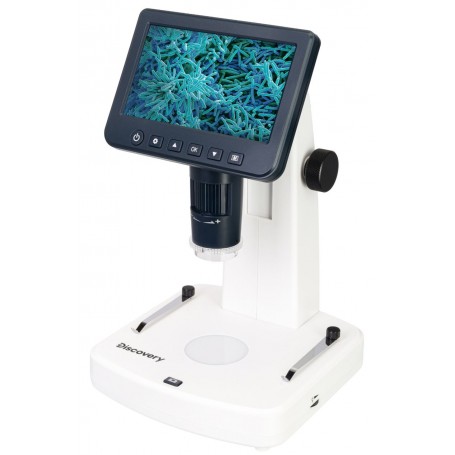

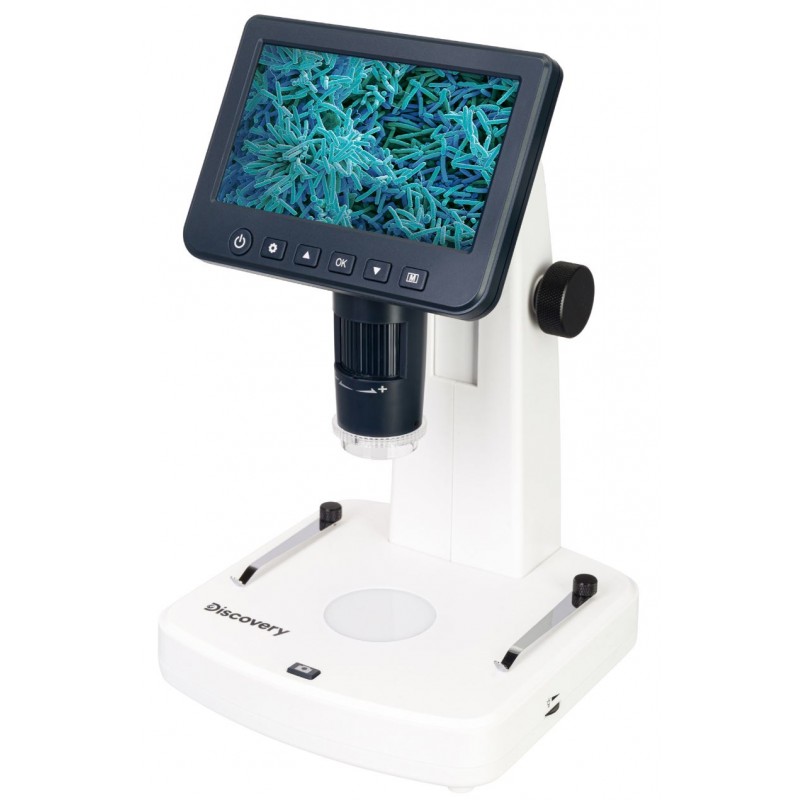

The Discovery Artisan 512 digital microscope is suitable for working with precious metals, jewelry, circuit boards, clock restoration, minerals, and biological samples. Due to the polarizing filter, it is convenient to use even for observing objects with shiny surfaces, as the filter reduces stray reflections. The built-in camera allows for capturing images and shooting videos. This option can be helpful for maintaining digital archives of observations.
The produced images are taken by a 5Mpx microscope camera. The brightness of the LED illumination can be adjusted to provide the best lighting for the work area. The optical magnification ranges from 10 to 300x; and thanks to the digital zoom, it allows for observing objects at magnifications up to 1200x. The colorful and detailed image is displayed on the 5'' built-in LCD screen. The display makes it easier to use the device for a longer time, as it is much more convenient to look at the screen than through the eyepiece of a classical microscope. The color display has a higher resolution.
The microscope can be connected to an external monitor, a TV, or a computer. The kit includes all of the necessary cables. Therefore, you don't need to buy them separately. A memory card is used to record photos and videos (not included). MicroSD cards with a capacity up to 32GB are supported. The microscope comes with software that should be installed on a computer, providing measuring objects and many other functions. You can measure the radius, diameter, three-point angle, line length, and much more.
The microscope is powered by an AC supply or the built-in battery that provides up to three hours of continuous work.
Features:
Built-in 5" LCD screen
Can be connected to a computer or TV
Built-in polarizing filter for studying shiny objects
Magnification: 10–300x (with a digital zoom: 10–1200x)
LED illumination with brightness adjustment
Photo and video recording, objects measurement
Powered by an AC power supply or the built-in battery
The kit includes:
- Microscope
- Adapter (100–240 V, 50/60 Hz)
- USB cable
- AV cable
- Calibration scale
- Software CD
- User manual and warranty card
Recommendations on using the software.
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Note: Remember that the power supply in the US and Canada is 110V, and it is 220-240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110V device into a 220V outlet and vice versa without using a converter.
The Discovery Artisan 512 digital microscope is not compatible with external digital cameras.
Specifications
- Product ID 78164
- Brand Discovery
- Warranty, years 10
- EAN 5905555012056
- Package size (LxWxH), cm 32x20.5x19
- Shipping Weight, kg 1.585
- Type digital
- Head digital screen/PC monitor
- Optics material optical glass
- Nozzle 5'' color LCD screen (fixed)
- Magnification, x 10 – 1200
- Magnification, x 10–300, with a digital zoom 10–1200
- Stage, mm ø45
- Stage moving range, mm fixed
- Stage features with clips
- Focus manual, 5–70mm
- Body plastic
- Illumination LED
- Brightness adjustment ✓
- Power supply 100–240V, 50/60Hz, 5V, 2A output, built-in 3.7V/2500mAh Li-ion battery
- Power supply: batteries/built-in battery yes
- Light filters polarizing
- Operating temperature range,°C -10...+65
- Additional battery-operated work: 3 hours; charging time: 7 hours
- Megapixels 5.0
- Video recording yes
- Frame rate 30 frames per second
- Image format *.jpg
- Software, drivers photo and video processing software with objects measurement feature
- Output HDMI/TV, USB 2.0
- System requirements OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1GHz, 512MB RAM, 512MB video card, USB 2.0 port, CD-ROM
- Ability to connect additional equipment microSD card up to 32 GB (not included)
- computer: via an USB cable (included) TV: via an AV cable (included)
- User level beginners, experienced users
- Assembly and installation difficulty level easy
- Software language Chinese, English, French, German, Japanese, Russian, Spanish
- Video format *.avi
- Application for applied research
- Illumination location dual
- Research method bright field
- Maximum resolution images: 12Mpx, 10Mpx, 8Mpx, 5Mpx, 3Mpx, 2Mpx video: 1080p, 720p
