Discovery Femto Polar Digital Microscope with Book

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

Check out a brief comparison of the Discovery microscope series »

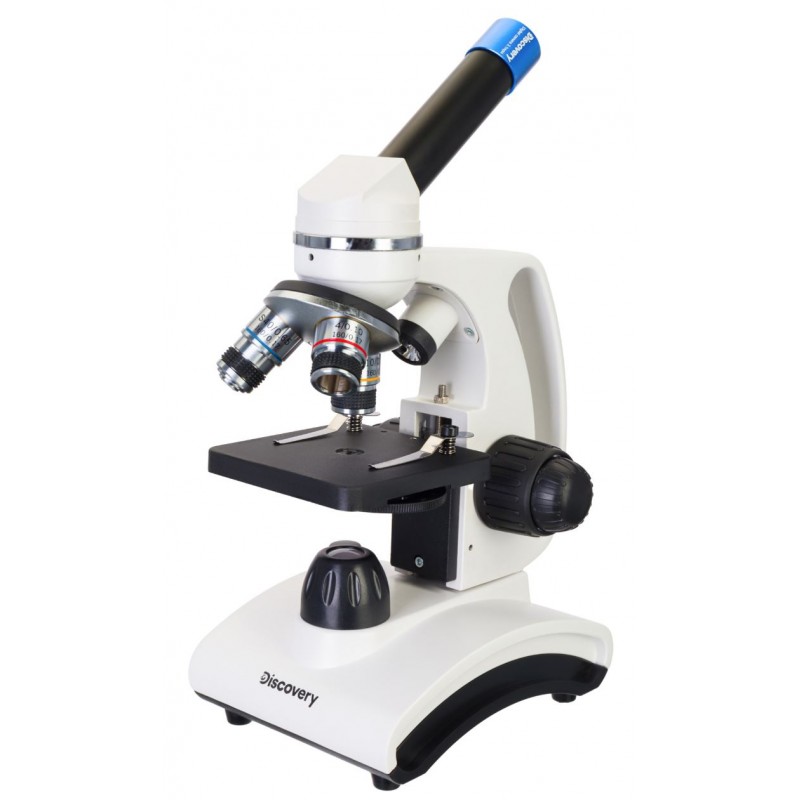

The Discovery Femto Polar digital microscope enables you to examine the microbial world as well as record specimens as pictures or videos. The 3Mpx camera can keep an archive of recordings and display an image of the specimen on the main screen. The microscope operates easily, creates clear and contrast images, and includes suits hobbyists and students. An illustrated knowledge book about the microbial world, entitled "The Invisible World", is included in the kit.

Achromatic optics with 40x to 400x magnification

The microscope is equipped with a monocular head that can be rotated 360°. It’s comfortable to use in groups, especially when needing to share images with others. Instead of moving the entire device, the head can be turned accordingly. The head is inclined at 45°, making it comfortable for long periods of use. The microscope’s optics are made out of glass: the wide-field eyepiece and achromatic objectives. The 40x objective is layered with a protective lens and spring action that make it more protected against possible damage. The device can be adjusted with coarse and fine focusing.

Dual LED illumination with brightness adjustment

Stage with clips, a disc diaphragm under the stage for controlling luminous flux from lower illumination. Adjustable, dual illumination. Illumination can be plugged into the wall with the provided AC adapter or battery-powered (not included).

The kit includes a 3Mpx camera for pictures and video recording

The digital camera 3Mpx can take pictures with 2048x1536 pixel resolution that enables the visibility of numerous minor specimen details. It has a video recording function. To use the camera, attach it onto the ocular tube in place of the eyepiece, connect it to a computer with a USB cord, and open the program (see software installation CD). The image processing function is available for both pictures and videos.

An illustrated knowledge book, "The Invisible World", is a delightful addition to the kit. It is written with easy-to-understand language and illustrations. It provides a lot of interesting information such as how to adjust the microscope to see inside a drop of water or how to conduct experiments at home. This wonderful scholastic book enhances the experimentation experience.

Features

Biological microscope with a 3Mpx digital camera

Inclined, monocular head 360° rotatable

Achromatic optics, 40x to 400x magnification

LED illumination with brightness adjustment, cord or battery powered

Coarse and fine focusing, metal body

Illustrated knowledge book included in the kit

The kit includes:

• One microscope
• One eyepiece WF 10x
• Three achromatic objectives 4x, 10x, 40x
• One digital 3Mpx camera
• One USB 2.0 cable
• Software CD
• One AC adapter and power cord
• One dust cover
• One illustrated knowledge book, "The Invisible World"
• User manual and warranty card

Specifications

• Product ID 77985
• Brand Discovery
• Warranty, years 10
• EAN 5905555013589
• Package size (LxWxH), cm 35x22x17
• Shipping Weight, kg 2.42
• Type biological, light/optical, digital
• Head monocular
• Optics material optical glass
• Nozzle 360 ° rotatable
• Head inclination angle 45 °
• Magnification, x 40 – 400
• Eyepiece tube diameter, mm 23.2
• Eyepieces WF10x
• Objectives achromatic: 4x, 10x, 40xs (spring)
• Revolving nosepiece for 3 objectives
• Stage, mm 90x90
• Stage moving range, mm 0–10, vertical
• Stage features with clips
• Condenser N.A. 0.65
• Diaphragm diaphragm disc (6 apertures)
• Focus coaxial, coarse (0.5 mm) and fine (0.002 mm)
• Body metal
• Illumination LED
• Brightness adjustment ✓
• Power supply 110–240V, 3 AA batteries (not included)
• Power supply: batteries/built-in battery yes
• Light source type lower: 0.2W, upper: 0.1W
• Operating temperature range,°C -5...+40
• Megapixels 3.0
• Sensor element 1/2.7" CMOS
• Pixel size, μm 2.2х2.2
• Video recording yes
• Frame rate 3@2048x1536, 5@1600x1200, 7.5@1280x1024
• Usage location ocular tube, instead of the eyepiece
• Image format *.jpg, *.bmp, *.png, *.tif and others
• Spectral range, nm 380–650 (built-in IR filter)
• Method of exposure ERS (Electronic Rolling Shutter)
• White balance automatic/manual
• Exposure control automatic
• Software, drivers LevenhukLite
• Programmable options brightness, image size
• Output USB 2.0
• System requirements Windows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux; processor up to 2.8GHz Intel Core 2 or higher, USB 2.0 port, CD-ROM
• Camera power supply via USB cable
• User level beginners
• Assembly and installation difficulty level easy
• Software language Chinese, English, French, German, Polish, Russian, Turkish
• Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
• Application school/educational
• Illumination location dual
• Research method bright field
• Digital camera included ✓
• Maximum resolution 2048x1536
• Pouch/case/bag in set dust cover
