Discovery Artisan 1024 Digital Microscope

Discovery Channel informs, entertains and inspires its audiences around the globe about the world in all its wonder, diversity and amazement. Offering millions of people the chance to discover, and satisfy their curiosity, Discovery offers a compelling mix of stories across genres including science and technology, exploration, adventure, history and in depth behind-the-scenes glimpses at the people, places and organisations that shape and share the world we live in.

We proudly present the Discovery optics series that is produced by Levenhuk and endorsed by Discovery.

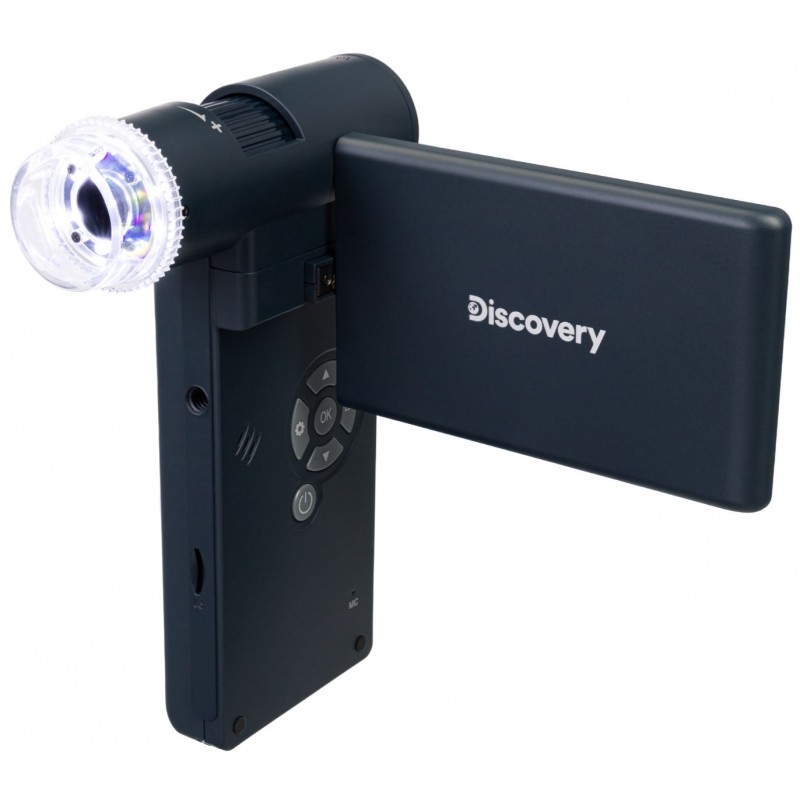

Discovery Artisan 1024 is a portable microscope with a 5Mpx digital camera. This device can be powered by an AC power supply or a battery so that you can take it wherever you like. It is convenient to take it when going to a client or studying specimens in the field. It will also be useful for presentations and group observations, as it is compatible with external devices. The capabilities of the device will be helpful for various specialists: jewelers, geologists, numismatists, workers of repair shops, appraisers, and many others. A handheld microscope is often used to check the quality of goods in stores and detect any possible mold growing on fruit and vegetables.

The microscope features a 4″ color LCD screen that can be rotated. The picture under the objective is displayed on the screen in real time. The microscope can capture images and record videos in high resolution. A memory card is required, which is purchased separately. MicroSD cards with a capacity up to 32GB are supported. If necessary, the microscope can be connected to an external device: a monitor, a TV, or a computer. All of the necessary cables are already included in the kit. Before connecting a microscope to a computer, do not forget to install the included software. It will give you access to extended features and allow for measuring linear and angular sizes of objects.

The microscope features an LED Illumination system with brightness adjustment. LEDs are located around the objective so that all observations are carried out in reflected light. There is a polarizing filter that allows for reducing glare and parasite reflections during observing shiny objects. The magnification is smoothly variable in a range from 10x to 300x and a digital zoom allows for observing at up to 1200x magnification.

The kit includes a small tripod that enables you to carry out stationary observations. The pouch for carrying and storing is also included.

Features:

• Magnification: 10–300x (with a digital zoom: 10–1200x)
• 4″ rotatable color LCD screen
• Upper LED illumination with brightness adjustment
• Built-in polarizing filter
• Can be connected to a computer or TV
• Ability to record videos and take pictures and transmit an image to an external screen
• Image processing software with a measurement function
• Portable design; powered by a battery or an AC power supply

The kit includes:

• Microscope
• Adapter (100–240V, 50/60Hz)
• Li-ion rechargeable battery
• USB cable
• AV cable
• Tripod
• Pouch
• Software CD
• User manual and warranty card

Recommendations on using the software.

In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.

Note: Remember that the power supply in the US and Canada is 110V, and it is 220–240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110V device into a 220V outlet and vice versa without using a converter.

The Discovery Artisan 1024 digital microscope is not compatible with external digital cameras.

Specifications

• Product ID 78165
• Brand Discovery
• Warranty, years 10
• EAN 5905555012063
• Package size (LxWxH), cm 21x20x7
• Shipping Weight, kg 0.685
• Type digital, portable
• Head digital screen/PC monitor
• Optics material optical glass
• Nozzle 4" rotatable color LCD screen
• Magnification, x 10 – 1200
• Magnification, x 10–300, with a digital zoom 10–1200
• Focus manual, 0–100mm
• Body plastic
• Illumination LED
• Brightness adjustment ✓
• Power supply 100–240V, 50/60Hz, 5V, 1A output, Li-ion battery 3.7V/1050mAh
• Power supply: batteries/built-in battery yes
• Light source type 8 LEDs
• Light filters polarizing
• Operating temperature range,°C -10...+65
• Additional a tripod with adjustable height is included (0.5–3 cm), battery-operated work: 2.5 hours; charging time: 4 hours
• Megapixels 5.0
• Video recording yes
• Frame rate 30 frames per second
• Image format *.jpg
• Software, drivers photo and video processing software with objects measurement feature
• Output HDMI/TV, USB 2.0
• System requirements OS: Windows 7/8/10, Mac 10.14 and later, minimum P2 1GHz, 512MB RAM, 512MB video card, USB 2.0 port, CD-ROM
• Ability to connect additional equipment microSD card up to 32 GB (not included), computer: via an USB cable (included), TV: via an AV cable (included)
• User level beginners, experienced users
• Assembly and installation difficulty level easy
• Software language Chinese, English, French, German, Japanese, Russian, Spanish
• Video format *.avi
• Application for applied research
• Illumination location upper
• Research method bright field
• Pouch/case/bag in set pouch
• Maximum resolution images: 12Mpx, 10Mpx, 8Mpx, 5Mpx, 3Mpx, 2Mpx, video: 1080p, 720p
