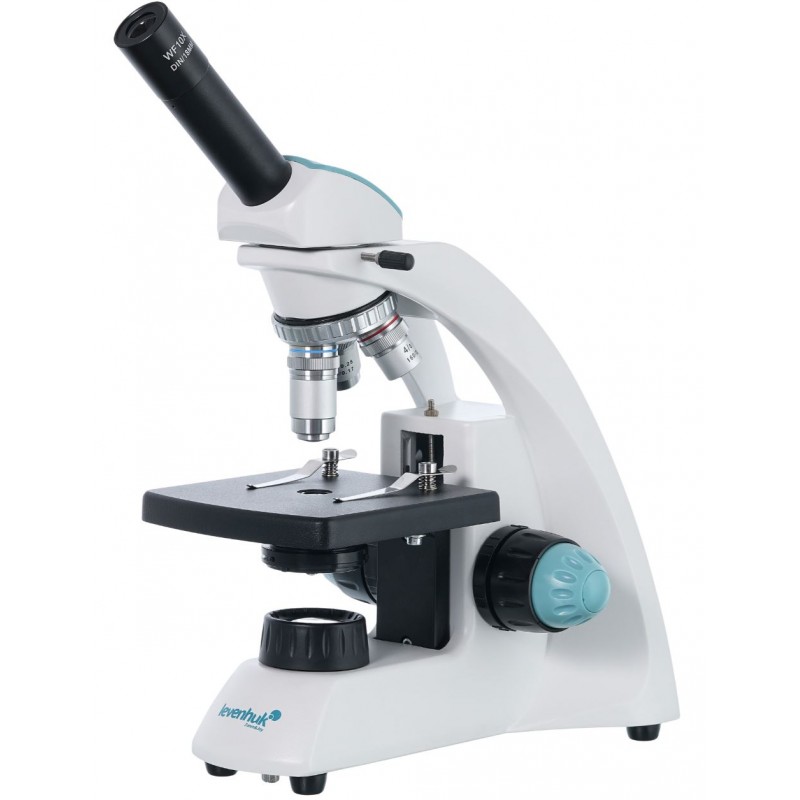

Levenhuk 500M Monocular Microscope

The Levenhuk 500M laboratory microscope is a perfect choice for work in the field of histology or any other microscopy research that requires staining samples. Due to halogen lighting, the microscope delivers brighter colors and makes observed microscope slides more contrasted. This microscope is excellent for any bright field microbiological research in incident light.

A monocular head is conveniently inclined at 45° and is 360° rotatable. A wide-field eyepiece with 10x magnification provides a good view. The achromatic objectives magnify 4, 10, and 40 times. The 40x objective is also equipped with a protective spring-loaded front lens frame. The microscope magnification varies from 40 to 400 times, which is excellent for studying large and medium-sized structures.

The microscope stage is equipped with standard clips. Next to the stage, there are coarse and fine focusing knobs. The lighting unit is located at the bottom, right under the bright field condenser with an iris diaphragm and a filter holder. The lighting consists of a halogen bulb with a collector; the brightness is adjustable. The lighting is powered by an AC power supply.

Features:

Rotatable monocular head inclined at 45°

Wide-field achromatic optics with 40–400x magnification

Lower halogen lighting with a collector and brightness adjustment

AC power supply

Reliable metal body

Slot for installing an analyzer (an analyzer is not included)

The kit includes:

• Microscope
• 4x, 10x, 40xs achromatic objectives
• WF10x/18mm eyepiece (1 pc.) with a pointer
• Condenser N.A. 0.65 with an iris diaphragm and a filter holder
• Filters: blue, green, yellow
• Fuse
• Power cord
• Dust cover
• User manual and lifetime warranty

Specifications

• Product ID 75424
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555005294
• Package size (LxWxH), cm 42x26x33
• Shipping Weight, kg 3.9
• Type biological, light/optical
• Head monocular
• Optics material optical glass
• Nozzle 360 ° rotatable
• Head inclination angle 45 °
• Magnification, x 40 – 400
• Eyepiece tube diameter, mm 23.2
• Eyepieces WF10x/18mm
• Objectives achromatic: 4x, 10x, 40xs (spring)
• Revolving nosepiece for 3 objectives
• Stage, mm 110x110
• Stage moving range, mm fixed
• Stage features with clips
• Condenser N.A. 0.65 with an iris diaphragm and filter holder
• Diaphragm iris
• Focus coaxial, coarse (30mm) and fine (0.002mm)
• Body metal
• Illumination halogen
• Brightness adjustment ✓
• Power supply 110–220V
• Light source type with a collector, halogen 6V/20W
• Light filters blue, green, yellow
• Ability to connect additional equipment a slot for installing an analyzer (an analyzer is not included)
• User level experienced users
• Assembly and installation difficulty level easy
• Application laboratory/medical
• Illumination location lower
• Research method bright field
• Pouch/case/bag in set dust cover
