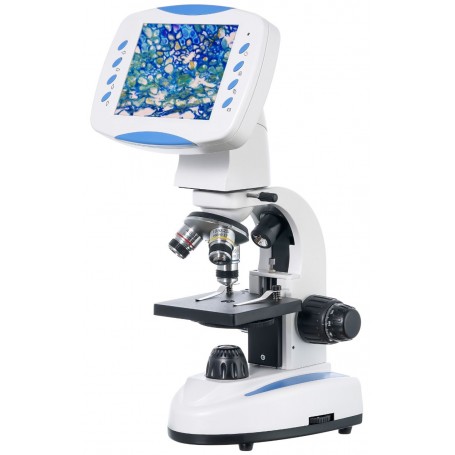

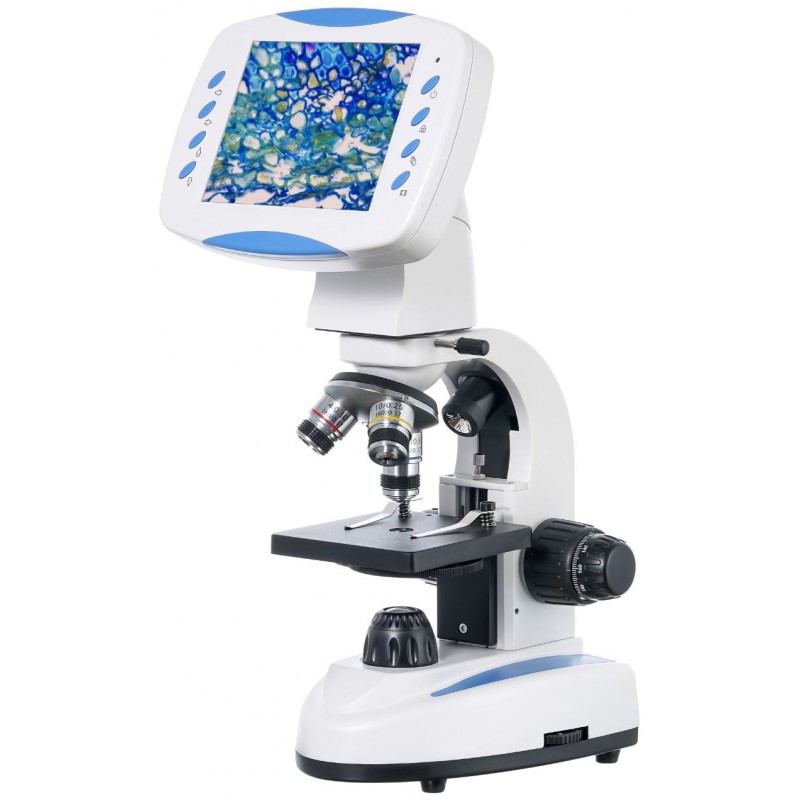

Levenhuk D80L LCD Digital Microscope

Levenhuk D80L LCD is a digital microscope with a 2MP camera and an LCD screen. The microscope can be used for visual observations and creating photo and video archives. The image is transmitted to the screen in real-time mode, it can be saved to a memory card or transmitted to external devices. The microscope is suitable for studying transparent, semi-transparent, and opaque samples in a bright field.

Instead of a standard ocular tube, there is a head with a screen. This is a more comfortable option for lengthy observations since it reduces eyestrain as well as rotator cuff strain. Microscopes with an LCD screen are suitable for home use as well as for laboratory studies. Next to the screen, there are control buttons for operating the digital camera, and on the back, there are slots for connecting a memory card, power source, and other devices.

The digital camera works in tandem with achromatic objectives, the overall magnification of the microscope is from 40x to 1600x. The stage is equipped with standard clips, the illumination is located at the top and bottom; its brightness is adjustable. Directly under the stage, there is a condenser with a diaphragm disk, which is used for more precise lighting adjustment.

All of the optical elements in the microscope are made of glass. The body is made of metal.

Features:

Digital camera for photo and video records

Image is displayed on an LCD screen in a real time mode

Achromatic optics, magnification: 40–400x (optical), up to 1600x (digital)

Dual LED light with brightness adjustment

Power supply is variable: by batteries or AC power supply

The kit includes:

• Microscope with a 2MP digital camera and an LCD screen
• 4x, 10x, 40xs achromatic objectives
• N.A. 0.65 condenser with a diaphragm disk
• Power cord
• Software CD
• USB cable
• 16GB SD memory card
• Adapter and power cord for a camera
• Dust cover
• User manual and lifetime warranty

Specifications

• Product ID 75433
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555005393
• Package size (LxWxH), cm 36x33x38
• Shipping Weight, kg 3.38
• Type biological, light/optical, digital
• Head digital screen/PC monitor
• Optics material optical glass
• Nozzle 5.6" rotatable color LCD screen
• Magnification, x 40 – 1600
• Objectives achromatic: 4x, 10x, 40xs (spring)
• Revolving nosepiece for 3 objectives
• Stage, mm 90x90
• Stage moving range, mm 70/30
• Stage features with clips
• Condenser N.A. 0.65
• Diaphragm diaphragm disc (6 apertures)
• Focus coaxial, coarse (15mm) and fine (0.002mm)
• Body metal
• Illumination LED
• Brightness adjustment ✓
• Power supply 3 AA batteries (not included) or 110–240V, via AC adapter (included)
• Power supply: batteries/built-in battery yes
• Light source type with a collector, 0.2W LED
• Megapixels 2.0
• Sensor element 1/3"
• Pixel size, μm 2.8x2.8
• Sensitivity, V/lux-sec@550nm 1.0
• Video recording yes
• Frame rate 30 frames per second
• Usage location microscope stand
• Image format *.jpg
• Spectral range, nm 400–950
• White balance automatic
• Exposure control automatic
• Output AV, SD card slot, mini-USB, power cable slot
• System requirements Windows 7 and below
• Camera power supply 5V, 1A, via a network adapter
• User level beginners, experienced users
• Assembly and installation difficulty level easy
• Video format *.avi
• Application school/educational
• Illumination location dual
• Research method bright field
• Digital camera included ✓
• Pouch/case/bag in set dust cover
• Maximum resolution 1600x1200
