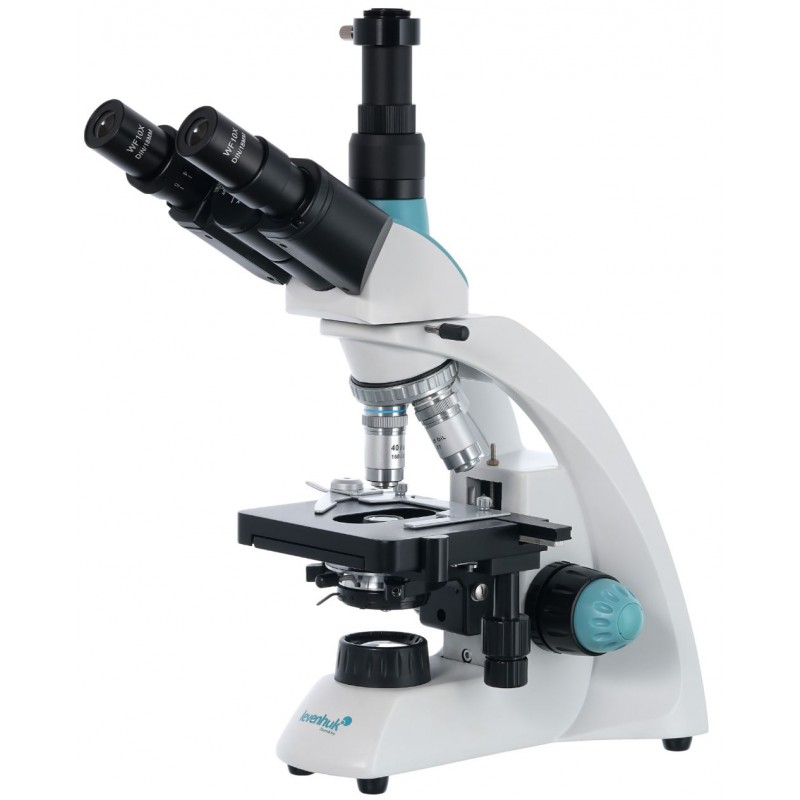

Levenhuk 500T Trinocular Microscope

Levenhuk 500T is a trinocular laboratory microscope with a magnification range from 40x to 1000x. It is equipped with the wide-field achromatic optics, which deliver clear and sharp images. Since halogen light is used as illumination, the image looks true-to-life, and all of the colors and details of the samples seem crisp and clear. The microscope is a true treasure for working in a research laboratory, medical center, or veterinary office.

The head consists of an inclined visual unit and a vertical tube for installing a digital camera in it (not included). The head can be rotated 360°. The kit includes two wide-field eyepieces and four achromatic objectives with various magnification. The sharpness of the optics is adjusted using coarse and fine focusing knobs located on the base of the microscope. This microscope is designed for bright field observations. A 100x objective can be used for observations using the oil immersion method. To protect the front lens, the 40x and 100x objectives are equipped with spring-loaded frames.

A mechanical scale is installed on the stage: it helps you quickly place the sample exactly under the objective. Under the stage, there is a bright field Abbe condenser with adjustable height. There is an iris diaphragm and filter holder. The lighting system consists of a halogen bulb with a collector. The powerful bulb provides uniform and bright lighting of the working area. The light brightness is adjustable. AC power is used for the power supply.

Features:

Trinocular rotatable head with a tube for installing a digital camera

Wide-field achromatic optics with a 40–1000x magnification range

Halogen lighting with a collector, brightness adjustment, an AC power supply

Condenser with an iris diaphragm, with adjustable height

Coarse and fine focusing, metal body

Slot for installing an analyzer (an analyzer is not included)

The kit includes:

• Microscope
• 4x, 10x, 40xs, 100xs (oil) achromatic objectives
• WF10x/18mm eyepieces (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Filters: blue, green, yellow
• Fuse
• C-mount
• Bottle of immersion oil
• Power cord
• Dust cover
• User manual and lifetime warranty

Specifications

• Product ID 75426
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555005317
• Package size (LxWxH), cm 41.5x32.5x26
• Shipping Weight, kg 5.12
• Type biological, light/optical
• Head trinocular
• Optics material optical glass
• Nozzle 360 ° rotatable
• Head inclination angle 30 °
• Magnification, x 40 – 1000
• Eyepiece tube diameter, mm 23.2
• Eyepieces WF10x/18mm (2 pcs.)
• Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
• Revolving nosepiece for 4 objectives
• Interpupillary distance, mm 48 – 75
• Stage, mm 115x125
• Stage moving range, mm 70/30
• Stage features mechanical double-layer
• Eyepiece diopter adjustment, diopters ±5
• Condenser Abbe condenser N.A. 1.25 with an iris diaphragm and filter holder, with adjustable height
• Diaphragm iris
• Focus coaxial, coarse (16mm) and fine (0.002mm)
• Body metal
• Illumination halogen
• Brightness adjustment ✓
• Power supply 110–220V
• Light source type with a collector, halogen 6V/20W
• Light filters blue, green, yellow
• Ability to connect additional equipment a slot for installing an analyzer (an analyzer is not included)
• User level experienced users
• Assembly and installation difficulty level easy
• Application laboratory/medical
• Illumination location lower
• Research method bright field
• Pouch/case/bag in set dust cover
