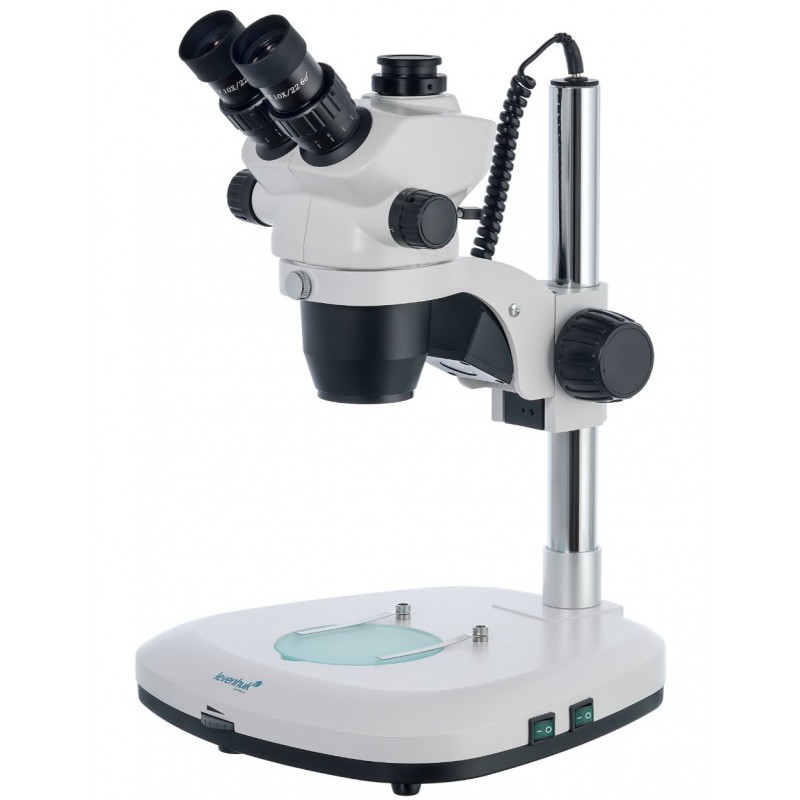

Levenhuk Zoom 1T Trinocular Microscope
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Levenhuk Zoom 1T Trinocular Microscope

The Levenhuk ZOOM 1T Trinocular Microscope stands out as a high-quality tool ideally suited for observing three-dimensional objects such as jewelry, coins, clock mechanisms, textiles, and even biological materials. Featuring a notable large working distance, it can accommodate ample sizes including larger samples comfortably. This instrument offers smooth variable magnification, enabling users to select the appropriate power from a wide range, enhancing detail visibility. A sophisticated blend of utility and versatility, the Levenhuk ZOOM 1T microscope not only caters to professional needs but is also an excellent pick for hobbyists.
775.17 $
Tax included

630.22 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Levenhuk ZOOM 1T trinocular microscope is designed for studying three-dimensional samples: coins, jewelry, minerals, clockwork mechanisms, textiles, and biological materials. A large working distance allows for studying even very large samples. The smooth variable magnification allows for choosing the most convenient magnification power in a wide range. Levenhuk ZOOM 1T microscope is a great choice for work and hobbies as well.

The microscope features a trinocular head that has a special vertical tube for installing a digital camera in it. The camera is not included in the kit. However, you can purchase it to use the microscope not only for visual observations but also for photo and video recording of research. The microscope's optics enable you to work with samples at magnification from 7 to 45 times and provide a good angle of view. A coarse focusing adjustment is available.

The lighting system consists of upper and lower LEDs with adjustable brightness. The light is powered by an AC power supply. The microscope body is made of robust metal, which is why the Levenhuk ZOOM 1T is a reliable and long-lasting optical instrument.

Features:

Stereoscopic (3D) image

Smooth variable magnification in the range from 7 to 45 times

Rotatable trinocular head inclined at 45°

Large working distance: 235mm

Dual LED light with brightness adjustment and an AC power supply

The kit includes:

  • Microscope
  • Wf10x eyepieces with eyecups (2 pcs)
  • Zoom objective: 0.7–4.5x
  • Stage made of matte glass
  • Black-and-white double-sided plate
  • Power cord with an AC adapter
  • Dust cover
  • User manual and lifetime warranty

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Levenhuk Zoom 1T Microscope is compatible with Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in an eyepiece tube instead of an eyepiece.

Specifications

  • Product ID 76057
  • Brand Levenhuk, Inc., USA
  • Warranty, years lifetime
  • EAN 5905555005386
  • Package size (LxWxH), cm 45x34.5x37
  • Shipping Weight, kg 5.76
  • Type stereo/instrumental
  • Head trinocular
  • Optics material optical glass
  • Nozzle 360 ° rotatable
  • Head inclination angle 45 °
  • Magnification, x 7 – 45
  • Eyepiece tube diameter, mm 23.2 mm (third vertical tube), 30mm (binocular head)
  • Eyepieces WF10x/22mm (2 pcs.)
  • Objectives 0.7–4.5x (zoom)
  • Working distance, mm 235
  • Interpupillary distance, mm 48 – 75
  • Stage, mm Ø95
  • Stage moving range, mm fixed
  • Stage features two plates: black and white double-sided and matte glass, with clips
  • Eyepiece diopter adjustment, diopters ±5
  • Focus coarse (50mm)
  • Body metal
  • Illumination LED
  • Brightness adjustment ✓
  • Power supply 220V/50Hz
  • Light source type upper: 3W LED, lower: 2W LED
  • Operating temperature range,°C 5...+35
  • Ability to connect additional equipment compatible with any microscope digital camera
  • User level beginners, experienced users
  • Assembly and installation difficulty level easy
  • Application for applied research
  • Illumination location dual
  • Research method bright field
  • Pouch/case/bag in set dust cover
