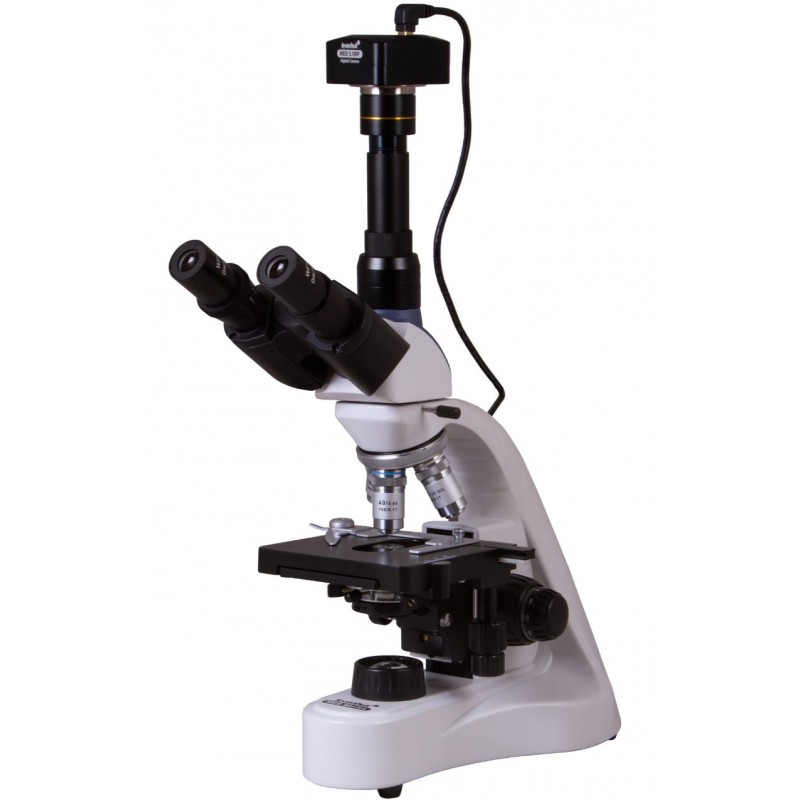

Levenhuk MED D10T Digital Trinocular Microscope

Levenhuk MED D10T Digital Microscope is a classic trinocular model with a digital camera in the kit. It is a great assistant in studying the micro world at magnifications in a range from 40x to 1,000x and recording observations in photo- or video mode. The microscope is suitable for holding lectures and seminars, conducting professional biological, clinical and diagnostic research as well as research in various scientific fields. The achromatic microscope optics is excellent for high-precision work with specimens.

A practical rotatable head

The trinocular head consists of a binocular visual part (it is intended for observations) and an ocular tube (for installing a digital camera in it). Due to that, you can study a specimen and transmit an image to an external screen simultaneously. This microscope design makes it a perfect choice for group research, when several people observe the same specimen. A visual part has 30° inclination. It is convenient to use during lengthy observations and, moreover, it reduces tension on the neck muscles and shoulder girdle. What’s more, this head is 360° rotatable.

High-class optics

The revolving nosepiece is designed for four objective lenses. The kit includes objective lenses of various magnification; the 40x and 100x objective lenses are equipped with spring-loaded frames for protecting the optics from accidental damage. A 100x objective lens is suitable for observations using oil immersion (a bottle with immersion oil is included in the kit). Wide-field eyepieces provide a good view and provide 10x magnification. All of the optical elements of the microscopes have an anti-fungal coating.

Digital capabilities

The 5.1MP digital camera is installed in the vertical ocular tube of the microscope. The camera can work in a photo and video mode. The camera is connected to a computer with a pre-installed image processing software (a software CD and USB cable are included in the kit). The camera makes working in a laboratory easier and more practical for an explorer: there is no need to strain your eyes when observing slides through eyepieces, as everything can be seen on a computer screen. This special program allows for the simple processing of photos and videos, setting up shooting parameters, and saving data for further work. The software allows for adjusting the size, image brightness and contrast, exposure time, calibrating a camera and objective lenses as well as measuring specimens or structures (several measurement units are available). High image quality allows for using them for professional research.

Convenient work with microscope slides

A stage is moveable along two axes, and it comes with a mechanical scale. The microscope lighting system is located underneath. It consists of a bright 5W LED light and an Abbe condenser with an iris diaphragm and filter holder (three light filters are included). The light is powered by an AC supply. The illumination system also features a brightness adjustment. Coarse and fine focusing adjustments are used for sharpness adjustment.

Features:

Laboratory microscope with 40–1000x magnification

360° rotatable trinocular head, inclined at 30°

Achromatic optics with an anti-fungal coating

Lower 5W LED light with brightness adjustment

Powered by an AC power supply

5.1MP digital camera is included in the kit

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head
• Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with an anti-fungal coating
• Wide-field eyepieces: WF10x/18mm with an anti-fungal coating (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder
• Filters: blue, green, yellow
• Bottle of immersion oil
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover
• 5.1MP digital camera
• Camera adapter
• USB cable for connecting and powering camera
• Software CD and drivers
• User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Levenhuk MED D10T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.

Specifications

• Product ID 73986
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555004884
• Package size (LxWxH), cm 47.5x38.5x24
• Shipping Weight, kg 5.8
• Type biological, light/optical, digital
• Head trinocular
• Optics material optical glass with anti-fungal coating
• Nozzle 360 ° rotatable
• Head inclination angle 30 °
• Magnification, x 40 – 1000
• Eyepiece tube diameter, mm 23.2
• Eyepieces WF10x/18mm, wide-field with diopter adjustment (2 pcs.)
• Objectives achromatic: 4x, 10x, 40xs, 100xs (oil immersion)
• Revolving nosepiece for 4 objectives
• Interpupillary distance, mm 48 – 75
• Stage, mm 125х130
• Stage moving range, mm 70/50
• Stage features mechanical double-layer
• Eyepiece diopter adjustment, diopters ±5
• Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
• Diaphragm iris
• Focus coaxial, coarse (30mm) and fine (0.002mm)
• Body metal
• Illumination LED
• Brightness adjustment ✓
• Power supply 100–240V
• Light source type 5W
• Light filters blue, green, yellow
• Megapixels 5.1
• Sensor element 1/2.5"
• Pixel size, μm 2.2х2.2
• Sensitivity, V/lux-sec@550nm 0.53
• Video recording yes
• Frame rate 7@2592x1944, 27@1280x960, 90@640x480
• Dynamic range, dB 66
• Usage location the third 23.2mm ocular tube of the microscope
• Image format *.jpg, *.bmp, *.png, *.tif and others
• Spectral range, nm 380–650
• White balance automatic/manual
• Exposure control 0.294–2000μs
• Software, drivers LevenhukLite
• Programmable options brightness, image size, shutter time
• Output USB 2.0
• System requirements Windows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux; processor up to 2.8GHz Intel Core 2 or higher, USB 2.0 port, CD-ROM
• User level experienced users, professionals
• Assembly and installation difficulty level complicated
• Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)
• Application laboratory/medical
• Illumination location lower
• Research method bright field
• Digital camera included ✓
• Pouch/case/bag in set dust cover
• Maximum resolution 2048x1536
