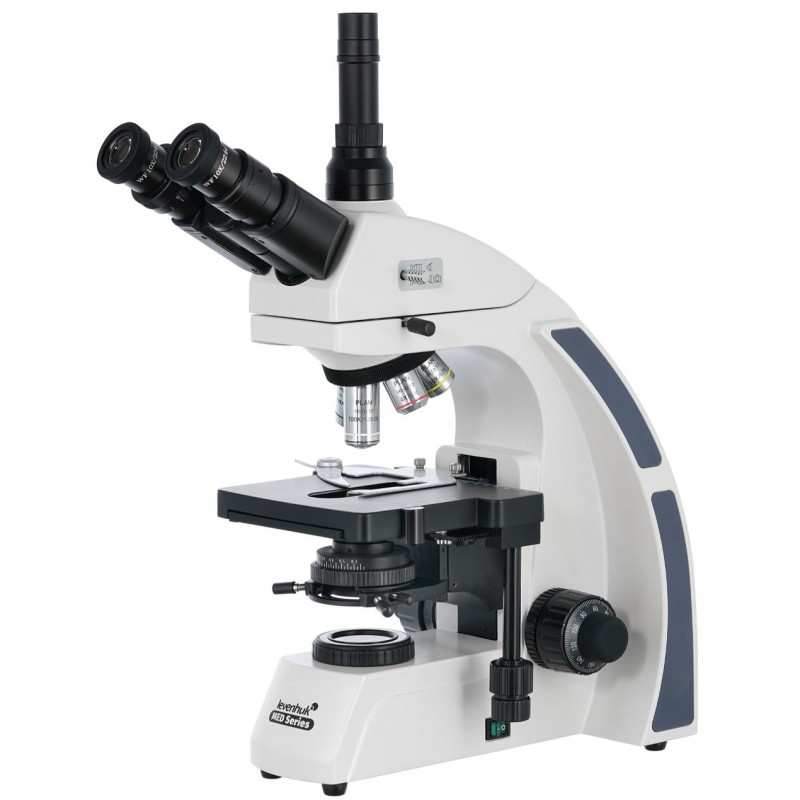

Levenhuk MED 40T Trinocular Microscope

The Levenhuk MED 40T is a trinocular microscope with an infinity-corrected plan achromatic optical system that can be used for professional 40x to 1000x microscopic studies. The microscope produces a clear and high-contrast image without any distortions and enables studying small structures on a fully flattened field. It will be a perfect choice for a professional of a clinical diagnostic laboratory, employee of a scientific research center, or educational institution.

Plan achromatic infinity-corrected optics

The microscopes in the Levenhuk MED 40 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 40 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

A rotatable head with a beam splitter

The trinocular head enables you to simultaneously observe samples in a traditional way and display pictures on an external screen online. The head consists of a binocular visual part and a separate tube where a camera can be fitted (the camera is not included in the kit). The visual module is inclined by 30°, which prevents tensing your neck muscles. The tube for a digital camera is vertical. For comfortable group observations, the head can be rotated by 360°. There is a beam splitter.

Capabilities of the optical system

The optical system consists of two wide-field eyepieces and five plan achromatic objective lenses. Observations can be made by a standard or immersion method (a 100x objective lens is used for oil immersion). Eyepieces have 10x magnification and diopter adjustment. Three objectives with the maximum magnification are fitted with spring rims that protect the optics from incidental damage. All optic surfaces of accessories are protected with anti-fungal coating. Coarse and fine focusing is available.

Convenient work with microscope slides

Under the optical system, there is a stage with a mechanical scale. Underneath, there is an Abbe condenser with an iris diaphragm. Specimens are illuminated from the bottom with a bright 5W LED. Köhler illumination is available.

The light requires an AC power supply. The light brightness is adjustable.

Features:

Infinity-corrected plan achromatic optics

Trinocular head with a beam splitter, magnification range of 40x to 1000x

Bright LED light

Köhler illumination is available

Powered by an AC power supply, adjustable light brightness

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head
• Infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil) with anti-fungal coating
• Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)
• Abbe condenser N.A. 1.25 with an iris diaphragm
• Filters: blue, green, yellow
• Bottle of immersion oil
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover
• Camera mount
• User manual and lifetime warranty

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Levenhuk MED 40T Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.

Specifications

• Product ID 74005
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555005126
• Package size (LxWxH), cm 50x44x28
• Shipping Weight, kg 9.98
• Type biological, light/optical
• Head trinocular
• Optics material optical glass with anti-fungal coating
• Nozzle 360 ° rotatable, with switching (dividing) luminous flux
• Head inclination angle 30 °
• Magnification, x 40 – 1000
• Eyepiece tube diameter, mm 23.2 mm (third vertical tube), 30mm (binocular head)
• Eyepieces WF10x/22mm, wide-field with diopter adjustment (2 pcs.)
• Objectives infinity-corrected plan achromatic objective lenses: 4x, 10x, 40xs, 60xs, 100xs (oil)
• Revolving nosepiece for 5 objectives
• Interpupillary distance, mm 48 – 75
• Stage, mm 180x150
• Stage moving range, mm 75/50
• Stage features mechanical double-layer
• Eyepiece diopter adjustment, diopters ±5
• Condenser Abbe N. A. 1.25 with an iris diaphragm
• Diaphragm iris
• Focus coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion
• Body metal
• Illumination LED
• Brightness adjustment ✓
• Power supply 100–240V
• Light source type 5W, 85–230 V AC
• Light filters blue, green, yellow
• Additional Köhler illumination, collector lens
• User level experienced users, professionals
• Assembly and installation difficulty level complicated
• Application laboratory/medical
• Illumination location lower
• Research method bright field
• Pouch/case/bag in set dust cover
