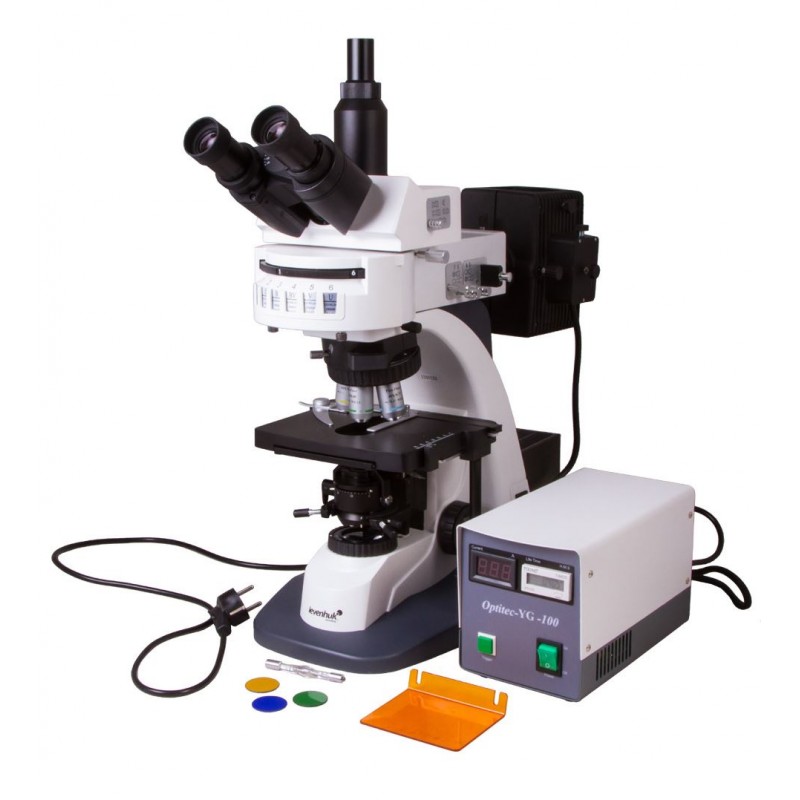

Levenhuk MED PRO 600 Fluo Microscope

Levenhuk MED PRO 600 Fluo is a professional laboratory microscope for observing in a bright field or conducting research using the fluorescent method. It is excellent for studying living microorganisms at the molecular, cellular, and subcellular levels. The Levenhuk MED PRO 600 Fluo fluorescence microscope is a good choice for retrofitting a medical or research laboratory.

Semi-apochromatic optics and wide-field eyepieces render a clear, detailed, and bright image. You can use this microscope for classic "dry" observations. In addition, it allows for observations using immersion methods. To enhance the image contrast, light filters are recommended (three filters are included). The trinocular head is inclined at 30°. The trinocular head consists of a binocular visual part and an ocular tube for installing a digital camera in it (purchased separately).

The illumination system consists of a bright halogen lamp that features a brightness adjustment, and a removable condenser. The fluorescence unit includes filter units, a mercury lamp and radiation shield. The light is powered by an AC supply (adapter included). The microscope features coarse and fine focusing. A stage is moveable along two axes, and it also features a mechanical scale. The interpupillary distance is adjustable.

Features:

For observations using a fluorescence method

Semi-apochromatic infinity-corrected optics

The microscope revolving nosepiece is designed for six objectives (two sockets for additional objectives)

Adjusting illumination system

Abbe condenser N.A. 1.25

AC power supply

The kit includes:

• Microscope
• Semi-apochromatic objectives: 4x, 10x, 20x, 40x
• Wide-field eyepieces: WF 10x/22mm (2 pcs)
• Filters: blue, green, yellow
• UV-reflection unit
• AC adapter
• User manual and lifetime warranty

Caution: Remember that the power supply in the US and Canada is 110V, and it is 220-240V in most European countries. Please refer to the specifications table for the correct voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.

Specifications

• Product ID 73383
• Brand Levenhuk, Inc., USA
• Warranty, years lifetime
• EAN 5905555005102
• Package size (LxWxH), cm 70x50x42
• Shipping Weight, kg 19.22
• Type biological, light/optical
• Head trinocular
• Optics material optical glass
• Nozzle 360 ° rotatable, with switching (dividing) luminous flux
• Head inclination angle 30 °
• Magnification, x 40 – 400
• Eyepiece tube diameter, mm 23.2 mm (third vertical tube), 30mm (binocular head)
• Eyepieces WF10x/22mm (2 pcs.)
• Objectives infinity-corrected semi-apochromatic fluorescence objectives: 4x, 10x, 20x, 40x
• Revolving nosepiece for 6 objectives
• Interpupillary distance, mm 50 – 75
• Stage, mm 180x160
• Stage moving range, mm 85/50
• Stage features mechanical double-layer
• Condenser Abbe N.A. 1.25 with an iris diaphragm and filter holder
• Diaphragm iris, field
• Focus coaxial, coarse and fine (0.002mm)
• Body metal
• Illumination halogen
• Brightness adjustment ✓
• Power supply 110–220V, 50/60Hz
• Light source type halogen lamp: 12V/30W
• Adapter AC adapter
• Light filters blue, green, yellow
• User level experienced users, professionals
• Assembly and installation difficulty level complicated
• Fluorescent module "G", "B", "BV", "V", "U" filters; mercury lamp (100W) with an external power supply; radiation shield
• Application laboratory/medical
• Illumination location lower
• Research method bright field, fluorescence
• Pouch/case/bag in set dust cover
