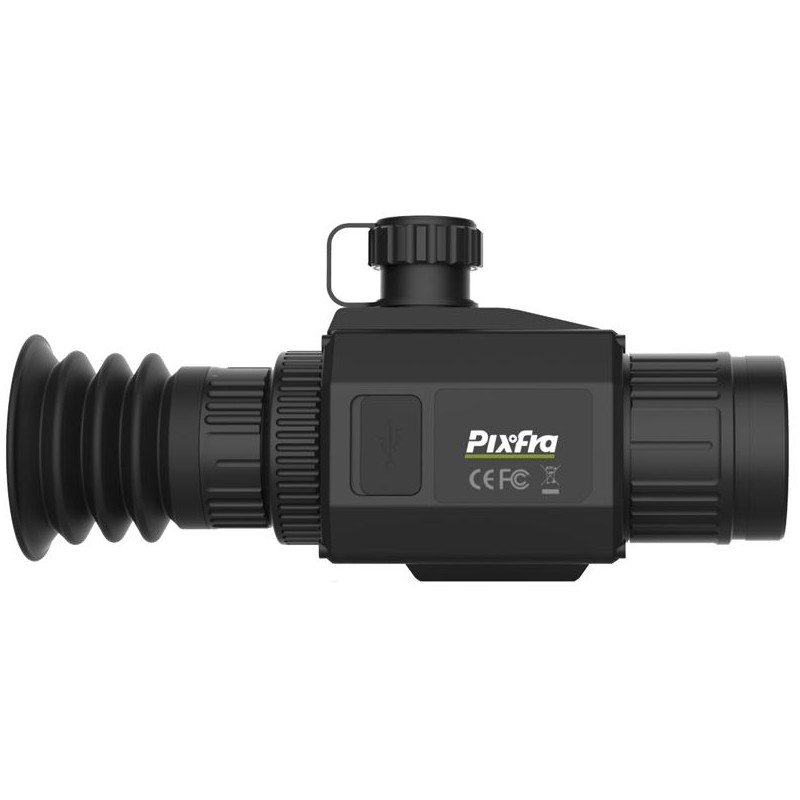

Pixfra PFI-C425 Thermal Scope Chiron Series

High Shock Resistance

The rugged structure is designed to withstand a maximum recoil of over 6,000 joules, perfect for a variety of rifle with calibers of 12 gauge, 9.3x64, .375H&H, etc.

Better Zeroing Experience

Chiron supports one-shot zeroing. It supports the configuration of 5 x 6 reticles, and has more than 10 reticle types with a variety of colors optional. It also supports picture-in-picture mode or picture freeze mode when you zero, to help you zero faster.

Pro-grade Image Sensor

All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

Easy on Your Hand, Simplified Operation

The Chiron series has a rotary knob design to help you quickly operate the menu for a more convenient and fast operating experience.

Ultra-low Latency

Hunting is all about “The moment,” so there must be no error between what you see on your device‘s display and where your target actually is. PIPS（ Pixfra Imaging Processing Solution ） allows image latency of less than 20ms, compared to 60ms with conventional image solutions, which will help you to accurately aim at the target.

Pre For the Magic Moment

Chiron supports Recoil Activated Recording (RAR), it automatically records key moments as you shoot, so you don't miss any of the highlights. With the Pixfra APP, you can also quickly share videos with your friends.

Product parameters

• Product Model PFI-C425
• Detector Type Vanadium oxide uncooled focal plane detector
• Effective Pixels 384 (H) × 288 (V)
• Pixel Pitch 12 μm
• Spectral Range 8μm～14μm
• Sensitivity (NETD) ≤30 mK@f/1.0
• Frame Rate 50 Hz
• Focal Length 25 mm
• Field of View H: 11.0°; V: 8.2°
• Thermal Focus Control Manual
• Close Focus Distance 2 m (6.56 ft)
• Aperture F1.0
• Detection Range 1,300 m (4,265.09 ft)
• Digital Zoom 1 ×; 2 ×; 4 ×; 8 ×
• Magnification 2.1X
• Color Palettes 6 (white hot/black hot /iron red/ alarm/amber/emerald)
• Display Screen Dimensions 0.41 inch, OLED
• Storage Built-in EMMC (16 GB);
• Uniformity Correction Auto, manual
• PIP YES
• Reticle+D57 YES
• Audio Recording YES
• Recoil-activation Recording YES
• Max. Recoil 1000g/ 1ms
• Cold/Hot Spot Trace Yes
• Wi-Fi Yes
• Power Supply 5 VDC/1 A, USB Type-C
• Battery Type 1 rechargeable Lithium batteries
• Battery Capacity 3,200 mAh
• Overvoltage Protection Yes
• Battery Operating Life ≥7.5h
• Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
• Storage Temperature –30 °C to +65 °C (–22 °F to +149 °F)
• Protection IP67
• Product Dimensions 180.8 mm × 64.1 mm × 87.7 mm (7.12
• Packaging Dimensions 267 mm × 227 mm × 116 mm (10.51
• Net Weight ≤460 g (1.01 lb) (battery excluded)
