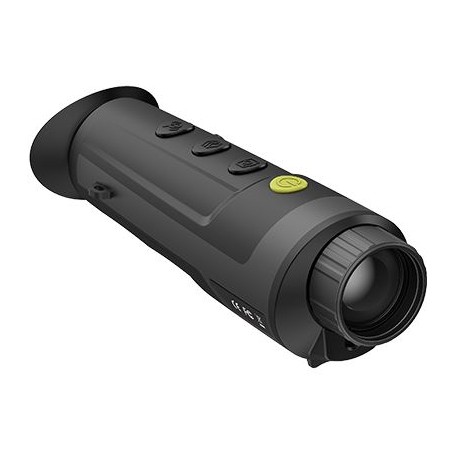

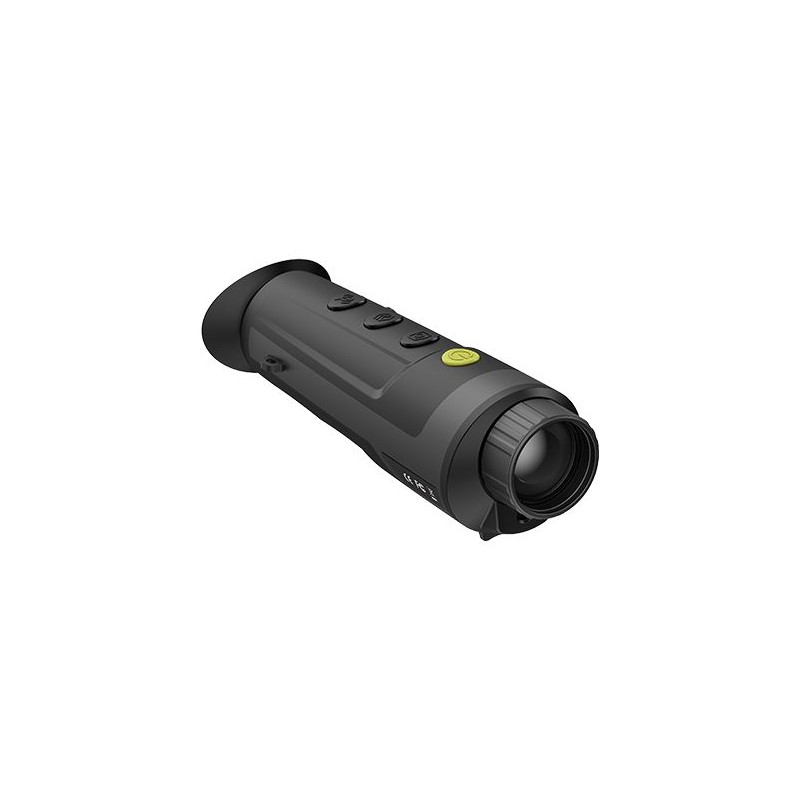

Pixfra PFI-R435 Thermal Monocular Ranger Series

Pro-grade Image Sensor

All models adopt 12μm detector, up to 640×512 resolution, detector sensitivity < 30mk, even in heavy rain, fog or cold harsh environment, can perfectly present details, clearly observe the target feature details.

Vivid Scene is in the Screen

The Ranger series monocular is equipped with high-resolution OLED, which brings the picture quality experience such as contrast and color to a new level. Compared with 1024×768 resolution, the 1440×1080 resolution has doubled the number of pixels, making it clearer and more detailed.

Extend Your Sight Edge

Ranger has a maximum 50mm lens, which can realize the detection distance of 2600m, helping you break through the visual boundary of human eyes at night.

Six Color Palettes

Support white hot, black hot, alarm, iron red, jade, amber color mode, to meet your observation needs in different scenarios.

Long Battery Life

Support more than 7.5 hours of battery life, also support manual and automatic standby mode, to meet your outdoor observation needs all day.

Strong Protection Ability

Ranger supports IP67 protection and can be used after soaking in water for half an hour. The minimum operating temperature is -30℃, which can follow you to harsh environments.

Product parameters

• Product Model PFI-R435
• Detector Type Vanadium oxide uncooled focal plane detector
• Effective Pixels 384 (H) × 288 (V)
• Pixel Pitch 12 μm
• Spectral Range 8μm～14μm
• Sensitivity (NETD) ≤30 mK@f/1.0
• Frame Rate 50 Hz
• Focal Length 35mm
• Field of View H: 17.4°; V: 14.0°
• Thermal Focus Control Manual
• Detection Range 1,800 m (5,905.51 ft)
• Magnification 3.27 ×
• Color Palettes 6 (white hot/black hot /iron red/ alarm/amber/emerald)
• Close Focus Distance 2 m (6.56 ft)
• Aperture F1.0
• Digital Zoom 1 ×; 2 ×; 4 ×; 8 ×
• Display Screen Dimensions 0.41 inch, OLED
• Screen Resolution 1440 (H) × 1080 (V)
• Diopter -4D to +5D
• Eye Relief 25mm
• Uniformity Correction Auto; manual
• Storage Built-in EMMC (32 GB)
• Cold/Hot Spot Trace Yes
• Wi-Fi Yes
• Analog Output Yes, type-C.
• Power Supply 5 VDC/2 A, USB Type-C
• Battery Type 1 rechargeable Lithium batteries
• Battery Capacity 3,200 mAh
• Battery Operating Life ≥7.5h
• Operating Temperature –30 °C to +50 °C (–22 °F to +122 °F)
• Storage Temperature –30 °C to +65 °C (–22 °F to +149 °F)
• Protection IP67
• Product Dimensions 199.8 mm × 64.7 mm × 69.6 mm (7.87" × 2.55" × 2.74") (L × W × H)
• Packaging Dimensions 299 mm × 152 mm × 114 mm (11.77" × 5.98" × 4.49") (L × W × H)
• Net Weight ≤400 g (0.88 lb)
