Pixfra PFI-M20-B7-G Thermal Monocular Mile Series
456.15 CHF net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

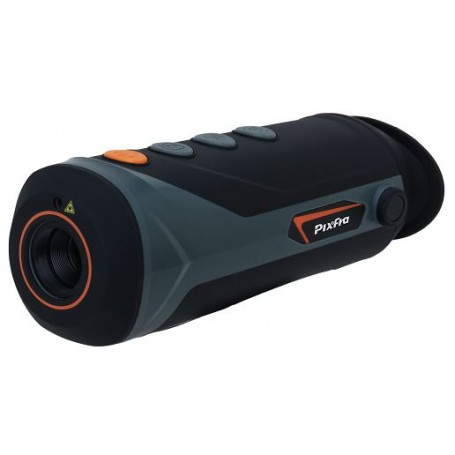

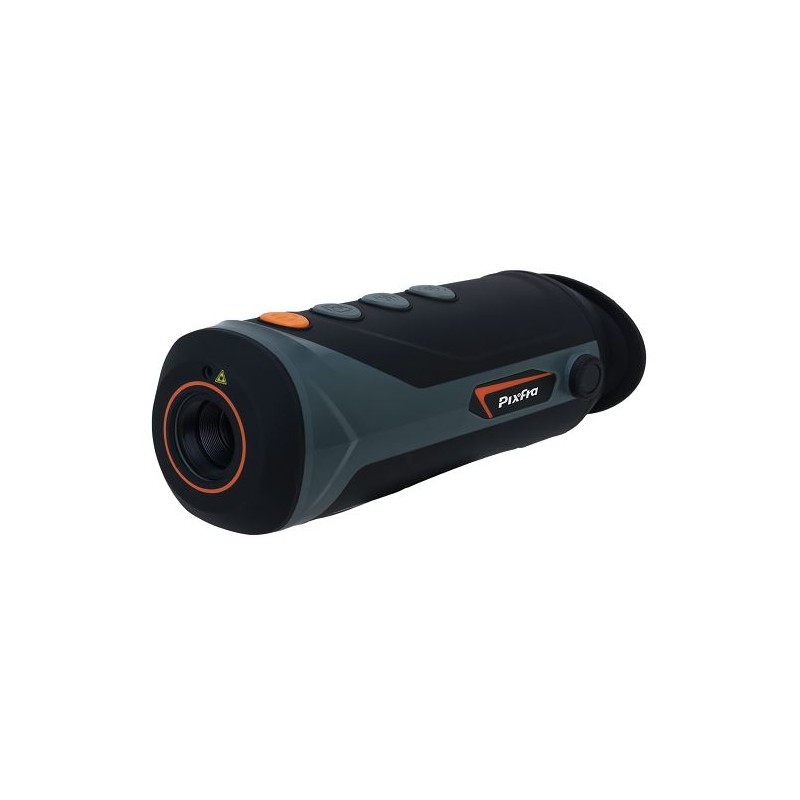

Pixfra Mile Series PFI-M20-B7-G Thermal Monocular
The Pixfra Mile Series PFI-M20-B7-G Thermal Monocular is a versatile and compact thermal imaging device designed for outdoor enthusiasts, forest management personnel, and anyone needing reliable thermal detection and measurement capabilities.
Key Features
Fire Detection
This thermal imaging camera excels in automatic fire detection, making it an essential tool for forest management. It can identify fires up to a distance of 1 km, with a detectable fire size of 2m x 2m, allowing for quick response and management.
Distance Measurement
With its distance measurement function, users can easily estimate the distance to a target by selecting the target type and aligning the measurement line on the target's top and bottom.
Long Battery Life
The Mile Series offers an impressive battery life of up to 9 hours. It also supports USB cable power supply, ensuring continuous operation in the field.
WiFi Hotspot & APP Integration
Equipped with a built-in WiFi hotspot module, this monocular allows you to connect to your smartphone for real-time image viewing via the dedicated app.
Smart Standby Mode
Featuring a built-in distance sensor, the device enters smart standby mode if not in use for a set period, conserving battery life while keeping other functions active. Quickly restart with the press of a button.
Compact and Durable Design
The ergonomic design of the Mile Series ensures a comfortable grip. It meets the IP67 protection rating, withstands a 2-meter drop test, and is ready for any environment.
Product Specifications
- Product Model: M20
- Detector: Uncooled Vox focal plane array
- Effective Pixels: 256 × 192
- Focal Length: 7mm
- Color Modes: White hot, black hot, rainbow, iron red, alarm (5 pseudo color options)
- Fire Detection: Yes
- Hot Tracking: Yes
- Wi-Fi: Yes
- USB Port: Micro USB
- Power Supply Mode: 5 VDC, 0.3A or built-in battery powered
- Operating Time: ≥8 hours
- Operating Temperature: -20℃ to +50℃
- Protection Class: IP67
- Product Size: 170.9mm × 57.6mm × 58.6mm (L x W x H)
- Net Weight: ≤350g
- Installation Mode: Tripod
Data sheet
