Pixfra PFI-M20-B7-Y Thermal Monocular Mile Series
957.81 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description

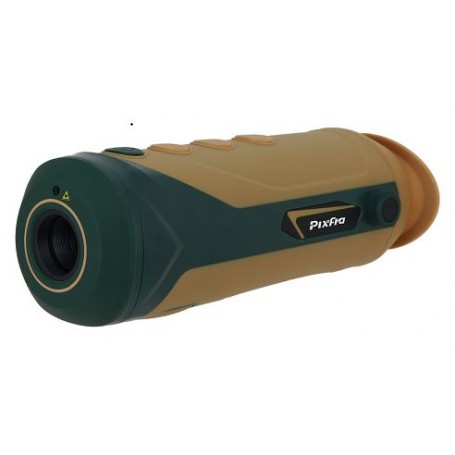

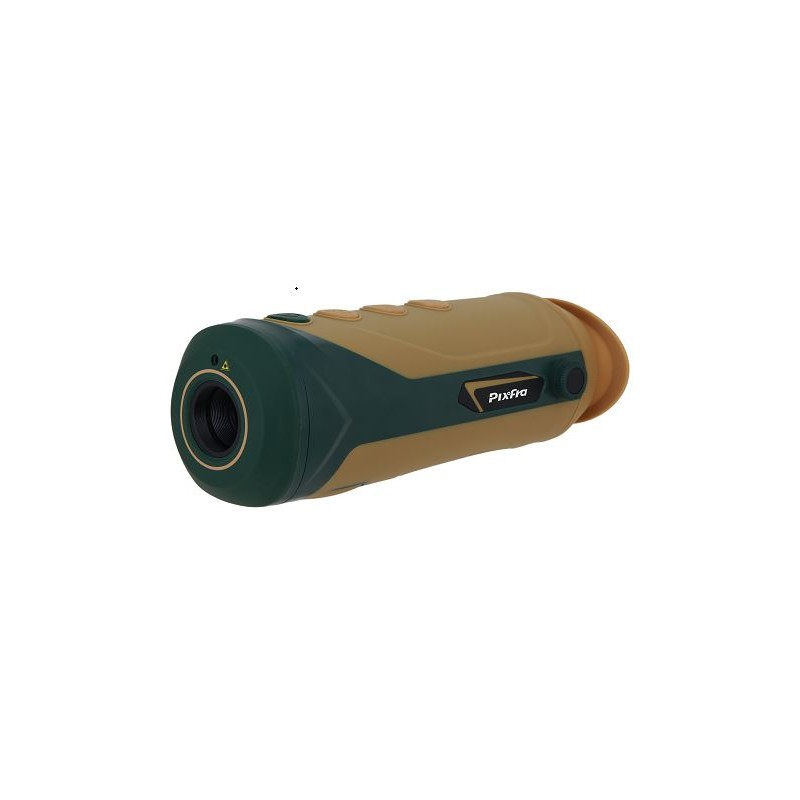

Pixfra Mile Series PFI-M20-B7-Y Thermal Imaging Monocular
The Pixfra Mile Series PFI-M20-B7-Y is a state-of-the-art thermal imaging monocular designed for versatility and reliability in various environments. Perfect for professionals in fields like forest management and emergency response, this monocular combines advanced features with ease of use.
Key Features
Fire Detection
Equipped with automatic fire detection, the Pixfra Mile Series can identify fires up to 1 km away, even with a fire size as small as 2m x 2m. This makes it an invaluable tool for forest management personnel to quickly locate and respond to fires.
Distance Measurement
The monocular includes a distance measurement feature. By selecting the target type and aligning the measurement line, you can determine the approximate distance to the target efficiently.
Long Battery Life
Enjoy up to 9 hours of uninterrupted use with the built-in battery. It also supports USB power supply, ensuring that your device remains operational during extended fieldwork.
WiFi Hotspot & APP Connectivity
With a built-in WiFi hotspot module, you can connect the monocular to your smartphone. This allows you to view real-time images on the companion app, enhancing your monitoring capabilities.
Smart Standby Mode
The monocular features a smart standby mode that conserves battery life. If no activity is detected for a set period, the display turns off while other functions remain active. Reactivate quickly with the push of a button.
Durable & Compact Design
Engineered with an ergonomic structure, the Pixfra Mile Series offers a comfortable grip. It meets the IP67 protection rating, passes a 2-meter drop test, and is built to withstand challenging environments.
Product Specifications
- Product Model: M20
- Detector: Uncooled Vox focal plane array
- Effective Pixels: 256 × 192
- Focal Length: 7mm
- Color Mode Options: White hot, black hot, rainbow, iron red, alarm (5 types of pseudo color)
- Fire Detection: Yes
- Hot Tracking: Yes
- Wi-Fi: Yes
- USB Port: Micro USB
- Power Supply: 5 VDC, 0.3A or built-in battery powered
- Operating Time: ≥8 hours
- Operating Temperature: -20℃ to +50℃
- Protection Class: IP67
- Dimensions: 170.9mm x 57.6mm x 58.6mm (L x W x H)
- Net Weight: ≤350g
- Installation Mode: Tripod
Data sheet
