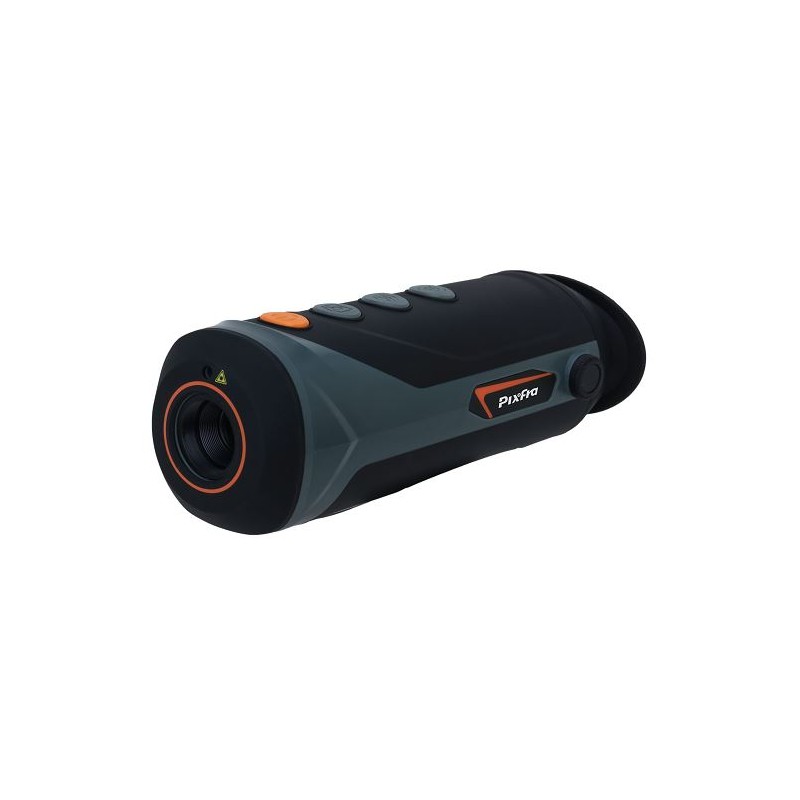

Pixfra PFI-M20-B10-G Thermal Monocular Mile Series

Discover the Pixfra PFI-M20-B10-G Thermal Monocular Mile Series, a top-tier device offering superior thermal imaging and precision. Perfect for hunting, exploring, or night navigation, it delivers clear, detailed images in complete darkness with advanced heat detection technology. Enjoy its substantial detection range and compact, portable design. Renowned for its robust build, this monocular ensures efficient and reliable performance. Key features include high-power infrared illumination and convenient digital zoom. Elevate your nighttime adventures with the Pixfra PFI-M20-B10-G.
1246.37 BGN
Tax included

1013.31 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Pixfra Mile Series PFI-M20-B10-G Thermal Monocular

Discover the cutting-edge Pixfra Mile Series PFI-M20-B10-G Thermal Monocular, a sophisticated tool designed for enhanced fire detection and distance measurement in challenging environments. Perfect for forest management and outdoor activities, this monocular offers a range of advanced features to support your needs.

Key Features

Fire Detection

Equipped with automatic fire detection capabilities, this thermal imaging camera can identify fires up to 1 km away (for fires sized 2m x 2m). It's an essential tool for forest management personnel to quickly locate and respond to fires.

Distance Measurement

The Pixfra Mile Series supports distance measurement by allowing users to select the measurement target type and position lines on the target, providing an approximate distance estimation.

Long Battery Life

With up to 9 hours of battery life and the option for USB cable power supply, this device ensures consistent operation, ideal for prolonged use in the field.

WiFi Hotspot & APP Connectivity

Featuring a built-in WiFi hotspot module, the monocular allows real-time image transmission to your smartphone through a dedicated app, enhancing your user experience.

Smart Standby Mode

A built-in distance sensor automatically turns off the display when not in use to conserve battery life while keeping other functions active. Simply press a button to quickly reactivate the device.

Ergonomic and Durable Design

Designed with a compact and ergonomic structure, the Pixfra Mile Series monocular provides a comfortable grip. It meets IP67 protection standards, withstands a 2-meter drop test, and is ready to accompany you in any environment.

Product Specifications

  • Product Model: M20
  • Detector: Uncooled Vox focal plane array
  • Effective Pixels: 256 × 192
  • Focal Length: 10mm
  • Color Mode: White hot, black hot, rainbow, iron red, alarm (5 adjustable pseudo colors)
  • Fire Detection: Yes
  • Hot Tracking: Yes
  • Wi-Fi: Yes
  • USB Port: Micro USB
  • Power Supply Mode: 5 VDC, 0.3A or built-in battery
  • Operating Time: ≥8 hours
  • Operating Temperature: -20℃ to +50℃
  • Protection Class: IP67
  • Product Size: 170.9mm x 57.6mm x 58.6mm (L x W x H)
  • Net Weight: ≤350g
  • Installation Mode: Tripod compatible

Enhance your field operations with the Pixfra Mile Series PFI-M20-B10-G Thermal Monocular, the perfect blend of technology and design for your demanding outdoor needs.
