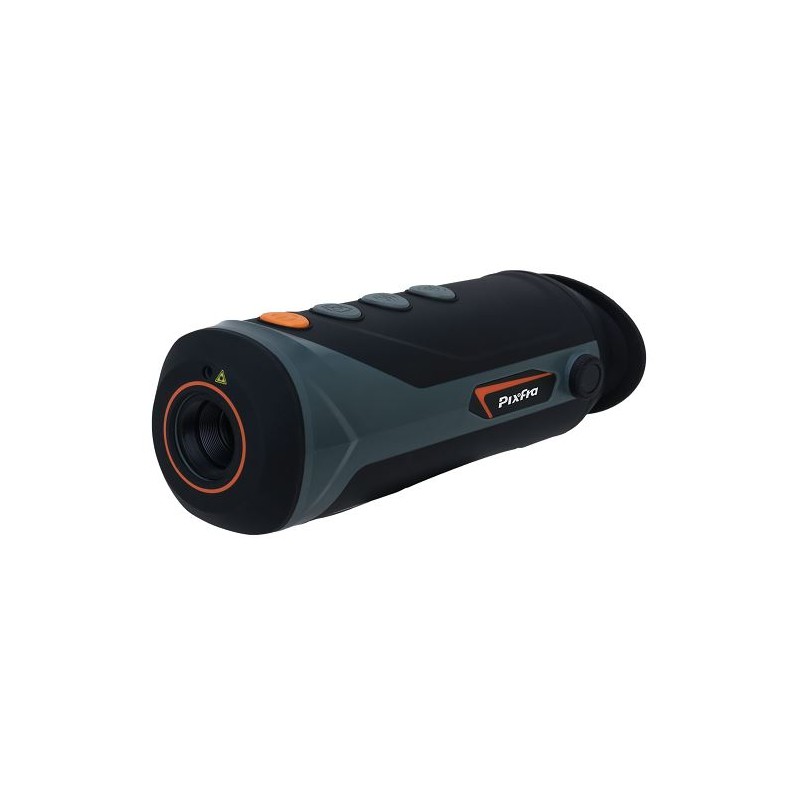

Pixfra PFI-M20-B15-G Thermal Monocular Mile Series

Discover the Pixfra PFI-M20-B15-G Thermal Monocular from the renowned Mile Series, engineered for superior thermal imaging in extreme low-light conditions. This rugged device is perfect for demanding outdoor activities, including wildlife observation, security, search and rescue, and hunting. With multiple viewing modes and easy-focus eyepieces, it combines advanced thermal technology with user-friendly design. Experience unmatched clarity and reliability in harsh environments with the Pixfra PFI-M20-B15-G, your ultimate partner for precision and performance.
32737.78 ₴
Tax included

26616.08 ₴ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Pixfra Mile Series PFI-M20-B15-G Thermal Monocular

Discover the unparalleled capabilities of the Pixfra Mile Series PFI-M20-B15-G Thermal Monocular, designed for precision and reliability in the field. This advanced thermal imaging device is packed with features that make it an essential tool for outdoor enthusiasts, security personnel, and forest management teams.

Key Features

Fire Detection

The Mile Series offers an automatic fire detection feature, crucial for forest management. It allows personnel to quickly locate fires, facilitating timely responses. Detect fires up to 1 km away (Fire size: 2m x 2m).

Distance Measurement

Equipped with a distance measurement function, this monocular provides approximate target distances by selecting the target type and aligning measurement lines on the target.

Long Battery Life

  • Enjoy up to 9 hours of battery life.
  • Supports USB cable power supply for continuous use in the field.

WiFi Hotspot & Mobile App

With a built-in WiFi hotspot module, connect your monocular to your smartphone to receive real-time images via the dedicated app.

Smart Standby Mode

The device features a built-in distance sensor that detects inactivity, turning off the display to conserve battery while keeping other functions online. Quickly reactivate by pressing a button.

Compact Structure Design

  • Ergonomic design for comfortable handling.
  • IP67 protection rating and passes a 2-meter drop test, ensuring durability in any environment.

Technical Specifications

  • Product Model: M20
  • Detector: Uncooled Vox focal plane array
  • Effective Pixels: 256 × 192
  • Focal Length: 15mm
  • Color Mode: Supports white hot, black hot, rainbow, iron red, alarm with 5 adjustable pseudo colors
  • Fire Detection: Yes
  • Hot Tracking: Yes
  • Wi-Fi: Yes
  • USB Port: Micro USB
  • Power Supply Mode: 5 VDC, 0.3A or built-in battery powered
  • Operating Time: ≥8 hours
  • Operating Temperature: -20℃ to +50℃
  • Protection Class: IP67
  • Product Size: 170.9mm × 57.6mm × 58.6mm (L x W x H)
  • Net Weight: ≤350g
  • Installation Mode: Tripod
This revised description provides a structured and detailed overview of the Pixfra Mile Series PFI-M20-B15-G Thermal Monocular, highlighting its features and technical specifications for an online store.
