Pixfra PFI-M40-B13-Y Thermal Monocular Mile Series
352428.36 Ft net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

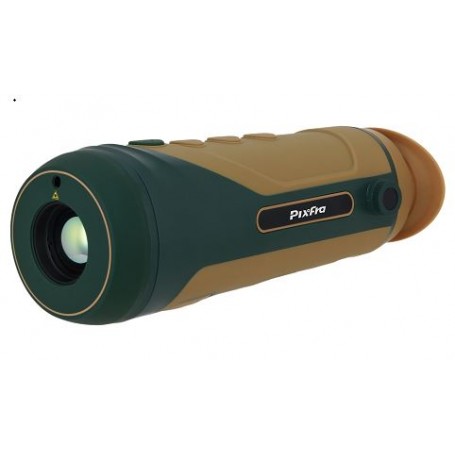

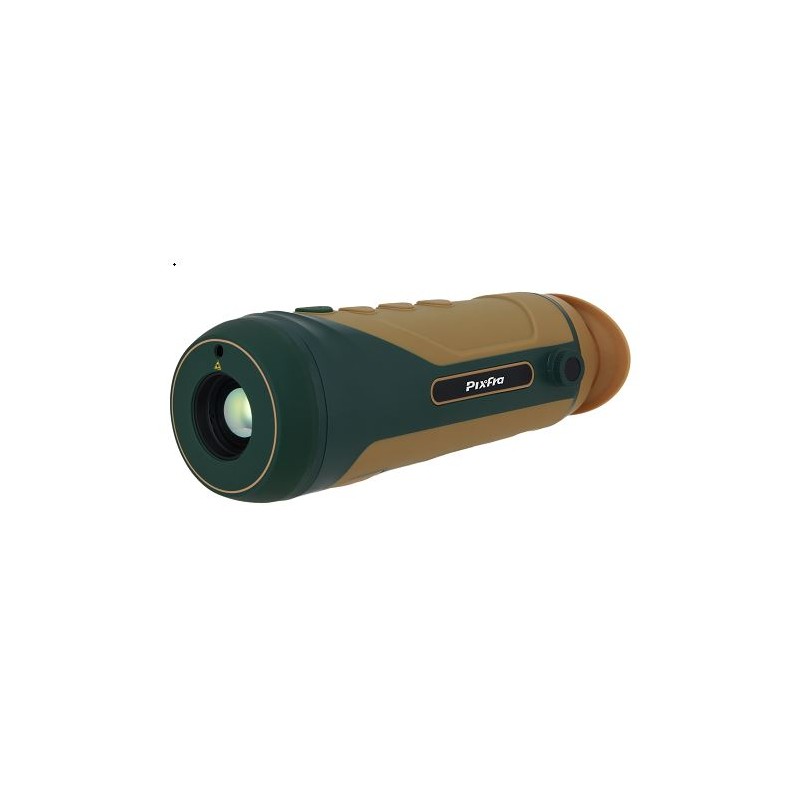

Pixfra PFI-M40-B13-Y Thermal Monocular Mile Series: Advanced Thermal Imaging Solution
The Pixfra PFI-M40-B13-Y Thermal Monocular, part of the Mile Series, is designed for those who require precision and reliability in thermal imaging. Ideal for applications such as fire detection, distance measurement, and rugged field use, this monocular offers a comprehensive set of features to meet your needs.
Key Features:
Fire Detection
This thermal imaging camera is equipped with an automatic fire detection system. It enables forest management personnel to perform inspections and quickly identify fires, supporting prompt deployment of resources. Capable of detecting fires up to a distance of 1 km with a fire size of 2m x 2m.
Distance Measurement
Utilize the distance measurement function to estimate target distances. Simply select the target type and align the measurement lines to gain an approximate distance reading.
Long Battery Life
Experience up to 9 hours of battery life with the Mile Series monocular. It also supports USB cable power supply, ensuring your device is always ready for use in the field.
WiFi Hotspot & Mobile App Connectivity
The built-in WiFi hotspot allows you to connect the monocular to your smartphone, providing real-time images via the accompanying mobile app.
Smart Standby Mode
Featuring a built-in distance sensor, the device conserves battery life by powering down the display when inactive, while other functions remain operational. Reactivate the display quickly with a button press.
Durable and Ergonomic Design
Engineered with an ergonomic structure, the Mile Series monocular offers a comfortable grip. It meets the IP67 protection rating, has passed a 2-meter drop test, and is suited for various environments.
Product Specifications:
- Product Model: M40
- Detector: Uncooled Vox focal plane array
- Effective Pixels: 400 × 300
- Focal Length: 13mm
- Color Modes: White hot, black hot, rainbow, iron red, alarm (5 adjustable pseudo colors)
- Fire Detection: Yes
- Hot Tracking: Yes
- Wi-Fi: Yes
- USB Port: Micro USB
- Power Supply Mode: 5 VDC, 0.3A or built-in battery
- Operating Time: ≥6 hours
- Operating Temperature: -20℃ to +50℃
- Protection Class: IP67
- Product Size: 187.5mm x 66.5mm x 68.5mm (L x W x H)
- Net Weight: ≤450g
- Installation Mode: Tripod
Data sheet
