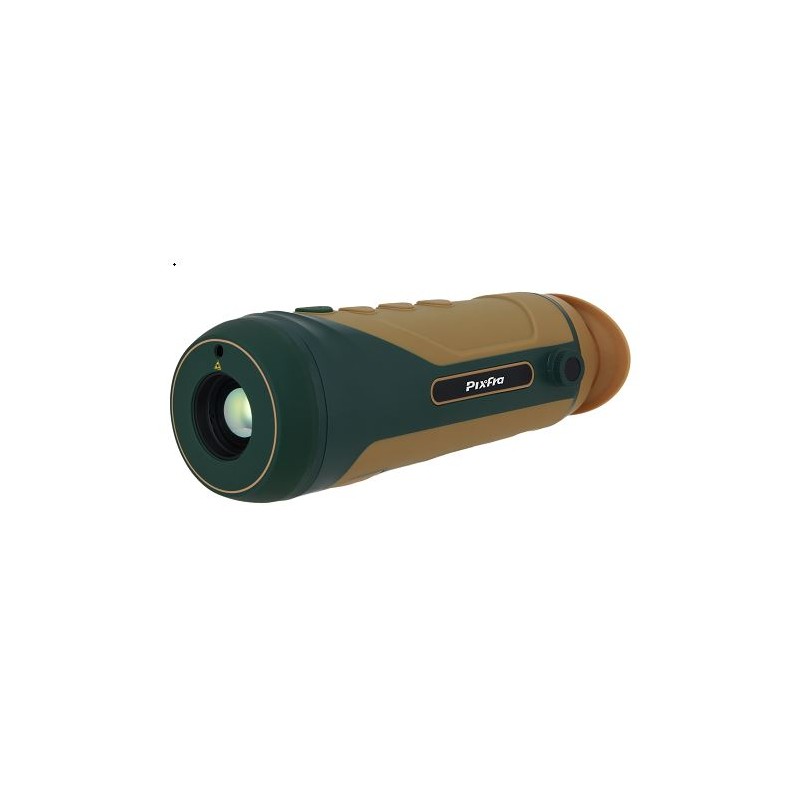

Pixfra PFI-M40-B19-Y Thermal Monocular Mile Series

Fire Detection

As a thermal imaging camera, M Series also offers automatic fire detection. Forest management personnel can use it to conduct inspection, so as to quickly find fires and arrange personnel to deal with the fire in time. Supports fire detection up to 1 km. (Fire size: 2m*2m).

Distance Measurement

It supports distance measurement function. By selecting the measurement target type and placing the measurement line on the top and bottom of the target, the approximate distance of the target can be obtained.

Long Battery Life

Mile series supports up to 9 hours of battery life, and support USB cable power supply, to ensure that you are in the field, it can always be available.

WiFi Hotspot & APP

Mile series monoculars are equipped with a Built-in WiFihotspot module. By connecting your monocular to your smartphone via WiFihotspot, you can get real-time images on the APP.

Smart Standby Mode

The device has built-in distance sensor, and if it detects that no one is useing it for a set period of time, the device will turn off the display for longer battery life, while other functions remain online. You can start quickly by pressing the button.

Compact Structure Design

Mile series monocular adopts ergonomic structure design, with appropriate hand feel. It meets the IP67 protection rating, passes the 2-meter drop test, and can follow you to any environment.

Product parameters

• Product Model M40
• Detector Uncooled Vox focal plane array
• Effective Pixels 400 × 300
• Focal Length 19mm
• Color Mode Support white hot, black hot, rainbow, iron red, alarm 5 kinds of pseudo color adjustable
• Fire Detection YES
• Hot Tracking YES
• Wi-Fi YES
• USB Port Micro USB
• Power Supply Mode 5 VDC, 0.3A or built-in battery powered
• Operating Time ≥6h
• Operating Temperature -20℃~+50℃
• Protection Class IP67
• Product Size 187.5mm×66.5mm×68.5mm(L x W x H)
• Net Weight ≤450g
• Installation Mode Tripod
