Pixfra PFI-M40-B25-G Thermal Monocular Mile Series
11797.77 kr net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

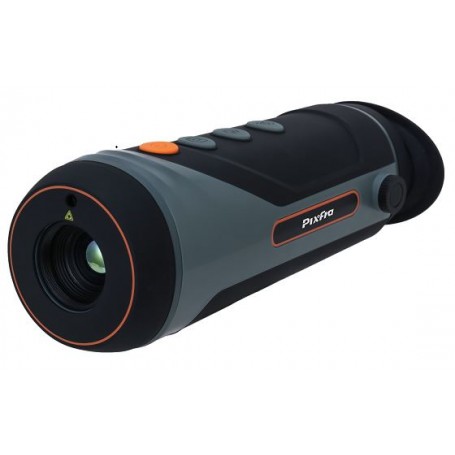

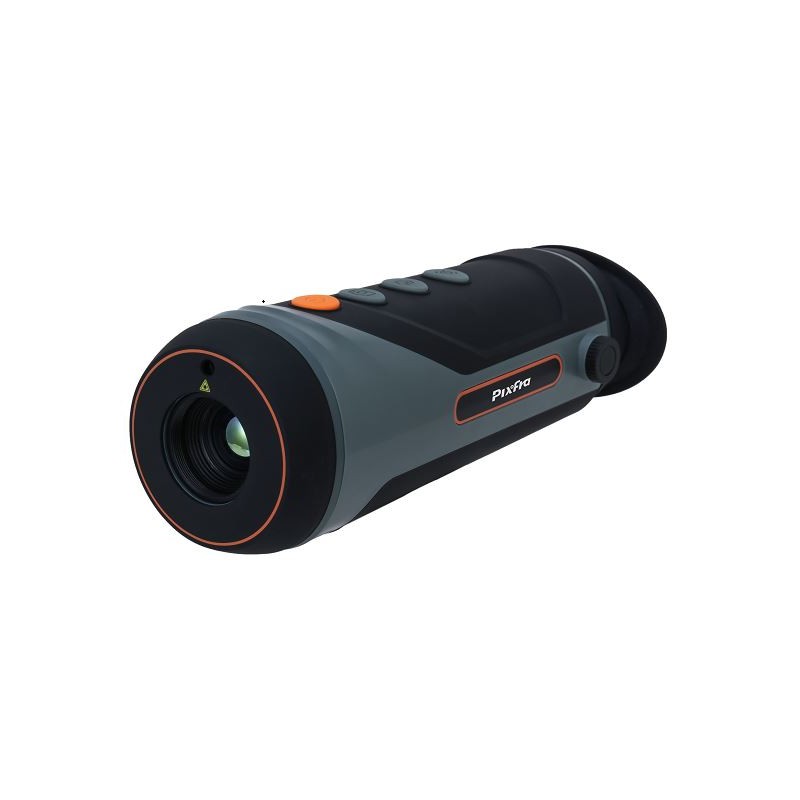

Pixfra PFI-M40-B25-G Thermal Monocular Mile Series
Discover the cutting-edge Pixfra PFI-M40-B25-G Thermal Monocular Mile Series, designed for professionals and enthusiasts who demand precision and reliability in thermal imaging.
Key Features
Fire Detection
- Automatic fire detection capability, ideal for forest management and safety inspections.
- Detect fires up to 1 km away (fire size: 2m x 2m), allowing for rapid response and intervention.
Distance Measurement
- Accurately measure distances by selecting the target type and aligning the measurement line with the target.
Long Battery Life
- Enjoy up to 9 hours of continuous operation.
- Supports USB power supply to ensure constant availability, even in the field.
WiFi Hotspot & Mobile App
- Built-in WiFi hotspot for seamless connectivity with your smartphone.
- Access real-time images and data via a dedicated app.
Smart Standby Mode
- Features a distance sensor to conserve battery life by turning off the display when not in use.
- Quickly resume operation with a simple button press.
Durable and Ergonomic Design
- Ergonomic structure for comfortable handling.
- Rugged build with IP67 protection rating and passed a 2-meter drop test.
- Designed to withstand various environmental conditions.
Technical Specifications
- Product Model: M40
- Detector: Uncooled Vox focal plane array
- Effective Pixels: 400 × 300
- Focal Length: 25mm
- Color Modes: White hot, black hot, rainbow, iron red, alarm (5 adjustable pseudo colors)
- Fire Detection: Yes
- Hot Tracking: Yes
- Wi-Fi: Yes
- USB Port: Micro USB
- Power Supply: 5 VDC, 0.3A or built-in battery
- Operating Time: ≥6 hours
- Operating Temperature: -20℃ to +50℃
- Protection Class: IP67
- Product Size: 187.5mm x 66.5mm x 68.5mm (L x W x H)
- Net Weight: ≤450g
- Installation Mode: Tripod
With its advanced features and robust design, the Pixfra PFI-M40-B25-G Thermal Monocular Mile Series is your reliable companion for thermal imaging needs.
