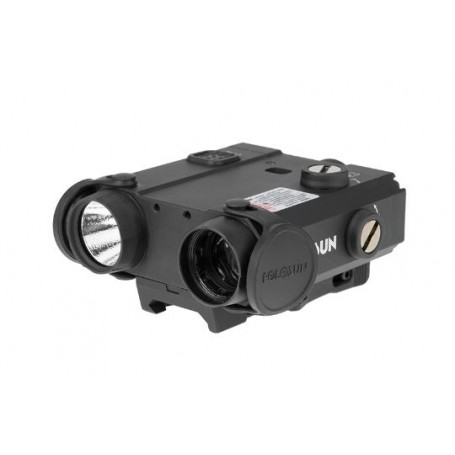

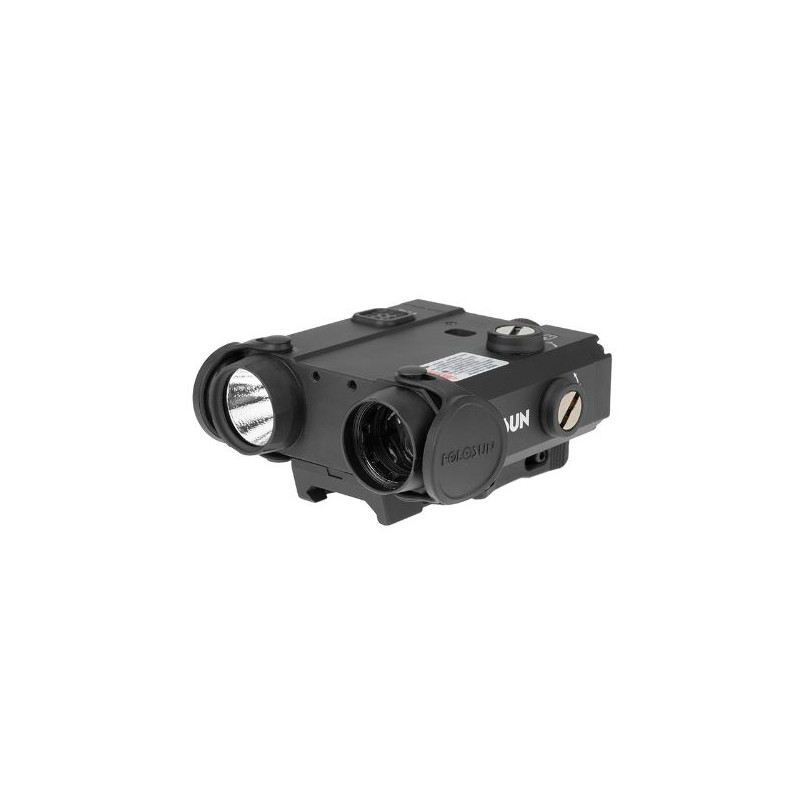

Holosun LS420G laser sight with flashlight

The LS420G is a class IIIa visible green laser aiming device with a coaxial mounted class 2 IR (infrared) laser and IR illuminator for use with night vision devices and a 600-lumen white light. The LS420G features a 7075-aluminum matte black anodized housing with a quick release Picatinny rail mount. The LS420G is powered by two CR123 battery which can provide up to 5000 hours of battery life.

The rear facing selector switch lets the user select between visible low, visible high, IR high, IR illuminator, or IR high with IR illuminator, white light, or white light with visible laser using the included remote pressure switch or turn the unit OFF. The LS420G also includes a top mounted activation button and tactile windage and elevation adjustments for a precision zero.

In the Box

• QD Release Mount
• Remote Cable Switch
• T10 L Key
• User Manual
• CR123A Battery

- SPECIFICATION -

ELECTRONIC SPECS

Power Source Battery

Battery Type CR123A

Battery Life (Hours) Up to modes

Brightness Setting Up to modes

PHYSICAL SPECS

Window Size N/A

Dimension (in) 3.6×2.9×1.6

Weight (oz) 10.6

MECHANICAL SPECS

Housing Material 7075 T6 Aluminum

Surface Finish MAO

Adjustment per Click 0.5 MOA

W&E Travel Range ±50 MOA

ENVIRONMENT SPECS

Storage Temperature -40℃~65℃

Working Temperature -40℃~51℃

Submersion IP67

Vibration 1000G

ILLUMINATOR SPECS

White LED Candela N/A

Laser & Illuminator Type Dual Laser & Dual Illuminator

White LED Output 300 Lumens

IR Illuminator Class IIIB

IR Illuminator Output 0.7mw

IR Pointer Class IIIB

IR Pointer Output 0.1mw(low)/0.7mw(high)

Visible Laser Class IIIA

Visible Laser Output 1mw(low)/5mw(high)
