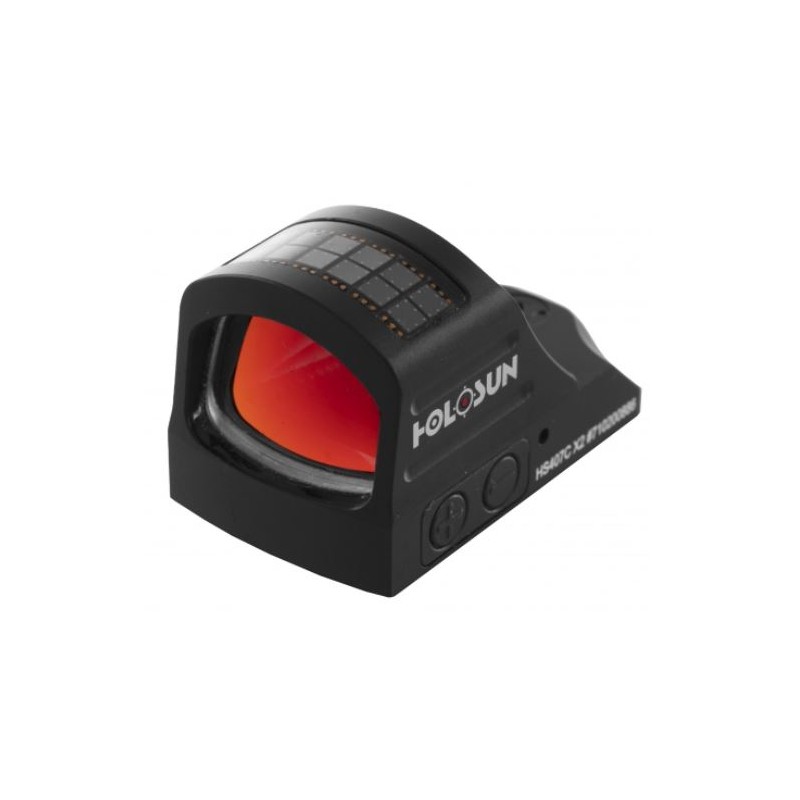

Holosun Micro Red Dot HS407C X2 collimator

The Holosun Micro Red Dot HS407C X2 is an upgraded version of the popular collimator, offering enhanced features such as Solar Failsafe power, Shake Awake battery saving system, and a 2 MOA aiming mark.

Featuring an improved horizontal button layout, the X2 series provides a more comfortable and user-friendly experience. Additionally, the Lock Mode button lock can be activated to disable the buttons and prevent accidental changes to settings.

Constructed with precision milling and 7075 aluminum, the sight boasts a lightweight and durable design, weighing only 42 grams. The base of the collimator follows the widely used RMR mounting standard. The X2 series introduces a new horizontal button layout, which users find more convenient and user-friendly. With a high level of IP67 protection, the device is resistant to various weather conditions and can withstand temporary immersion in water. Furthermore, the aluminum body is finished with a hard anodizing technique, ensuring high resistance to abrasion and scratches. The X2 collimator is also equipped with Lock Mode, which, when activated, disables the buttons to prevent unintentional adjustments to the sight settings.

The Holosun Micro Red Dot HS407C X2 employs lenses coated with multi-layer anti-reflective coatings, guaranteeing high light transmission and a clear, parallax-free image. Its aiming mark is a red dot with a popular 2 MOA size. The control chip and diode are engineered to withstand shock, weapon recoil, and adverse weather conditions, ensuring optimal performance even in harsh field environments.

This collimator is powered by a CR1632 battery, which can provide up to 50,000 hours of operation at a brightness setting of 6. Additionally, the device incorporates a Solar Failsafe solar panel, which supplements the battery's operation in strong light conditions (such as sunlight or artificial light). The panel also automatically adjusts the brightness of the aiming mark and serves as a backup power source in emergency situations when the battery is depleted. Users can opt for automatic brightness adjustment or manually select from 10 daylight settings and 2 night vision settings. Thanks to the Shake Awake system, the device can achieve an impressive runtime of up to 50,000 hours. This system automatically turns off the LED when there is no movement, putting the device into sleep mode. Reactivating the aiming mark simply requires slight movement of the weapon. Users have the flexibility to define the time interval after which the sleep mode activates. Designed for small arms, the Holosun Micro Red Dot HS407C X2 can also function as a backup sight for rifles equipped with optical sights.

Please note that the mounting base shown in the photo is not included.

Technical Data:

• Max. operating time: 50,000 hours
• Spot color: Red
• Type of aiming crosshairs (reticles): 2 MOA dot
• IP protection class: IP67
• Power supply: CR1632 battery (3V)
• Gradual adjustment: 0.5 MOA
• Housing material: Aluminum
• Lens diameter: 23mm
• Overall height: 40mm
• Overall length: 46mm
• Weight: 42g
• Width: 30mm
• Elements of the collimator set: Optics cleaning cloth, battery, collimator
• Manufacturer: Holosun, USA
• Supplier symbol: 30136/20900
