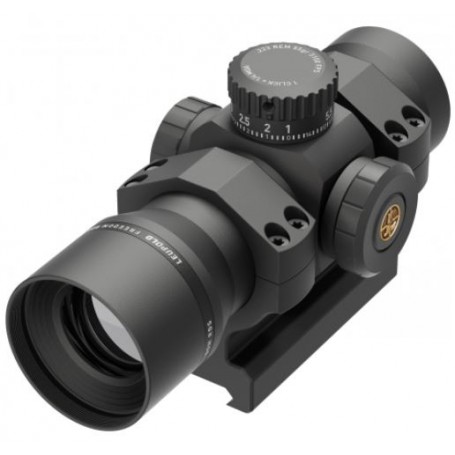

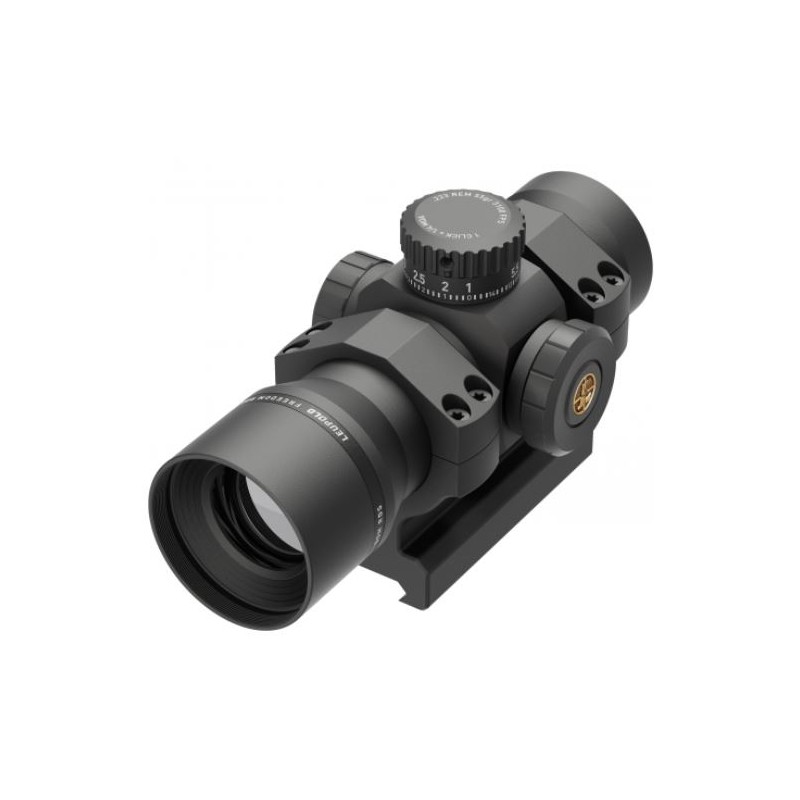

Leupold Freedom RDS 1x34 Red Dot BDC collimator with mount

The Leupold Freedom RDS 1×34 Red Dot BDC 1 MOA is an exceptional collimator sight designed for precise shooting. It features a 1 MOA precision dot and an elevation adjustment knob that is pre-calibrated to the ballistics of .223 Remington ammunition. With its tall Picatinny rail mount, this sight offers versatility and ease of use.

One of the standout features of the Freedom RDS collimator is the Twilight Red Dot System, which enhances image brightness in low-light conditions. This ensures that the sight provides a clear and sharp image even in challenging lighting environments. Additionally, the sight is waterproof, resistant to dew, and equipped with an MST motion sensor that automatically turns off the dot illumination after 5 minutes of inactivity. These features contribute to the durability and longevity of the collimator.

Constructed from lightweight aluminum, the body of the sight is precision-milled to ensure durability and reliability. The collimator is built to withstand evaporation, fog, and even immersion in water up to a depth of 10 meters. This makes it suitable for use in various weather conditions, making it an ideal choice for outdoor activities.

The optical system of the Freedom RDS is designed to provide an unlimited distance from the eye, accommodating users who wear corrective lenses. The premium lenses used in the system deliver high light transmission, resulting in bright and clear images. The lenses are also treated with a black finish on the edges to prevent light scattering, eliminating image blur and stray light reflections.

Aiming with the Leupold Freedom RDS is fast and precise, thanks to its classic 1 MOA red dot. This dot offers a wide field of view, ensuring that the target is not obscured and enabling quick target acquisition. The dot's position can be easily adjusted using the two moletized drums, providing a wide adjustment range of 80 MOA vertically and horizontally. A full rotation of the drums corresponds to a 15 MOA adjustment.

The Freedom RDS 1×34 Red Dot BDC sight incorporates a BDC system, which utilizes an elevation adjustment knob calibrated to standard .223 Rem 55 grs ammunition. This feature allows for quick and convenient adjustments based on the shooting distance, enhancing accuracy and performance.

To maximize battery life, the MST motion sensor automatically turns off the dot illumination after a period of inactivity. When the weapon is moved or repositioned, the dot illumination is switched back on, ensuring that the collimator is always ready for action. On average, the battery life ranges from 4-8 levels of brightness setting, providing approximately 1000 hours of usage.

Here are the technical specifications of the Leupold Freedom RDS 1×34 Red Dot BDC 1 MOA:

• Magnification: 1x
• Spot color: Red
• Type of aiming crosshairs (reticles): 1 MOA dot
• Cell power supply: CR2032 × 1
• Gradual adjustment [MOA]: 0.25
• Housing material: Anodized duralumin
• Max vertical (height) adjustment [MOA]: 80
• Max. horizontal (supply) adjustment [MOA]: 80
• Offset at full rotation [MOA]: 15
• Spot size [MOA]: 1
• Lens diameter [mm]: 41
• Overall length [mm]: 138
• Tube diameter [mm]: 34 mm (1.34")
• Weight [g]: 196
• Elements of the collimator set: Picatinny mount
• Warranty period: Lifetime manufacturer's warranty
• Manufacturer: Leupold, USA
• Supplier symbol: 180093

In summary, the Leupold Freedom RDS 1×34 Red Dot BDC 1 MOA is a feature-packed collimator sight that offers exceptional performance and reliability. With its precise aiming capabilities, durable construction, and advanced technologies, this sight is an excellent choice for hunters and shooters seeking accuracy and ease of use in any shooting scenario.
