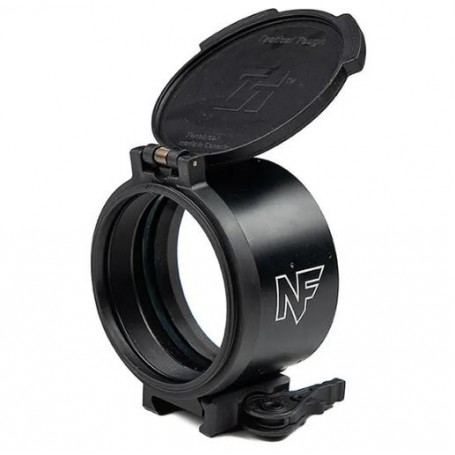

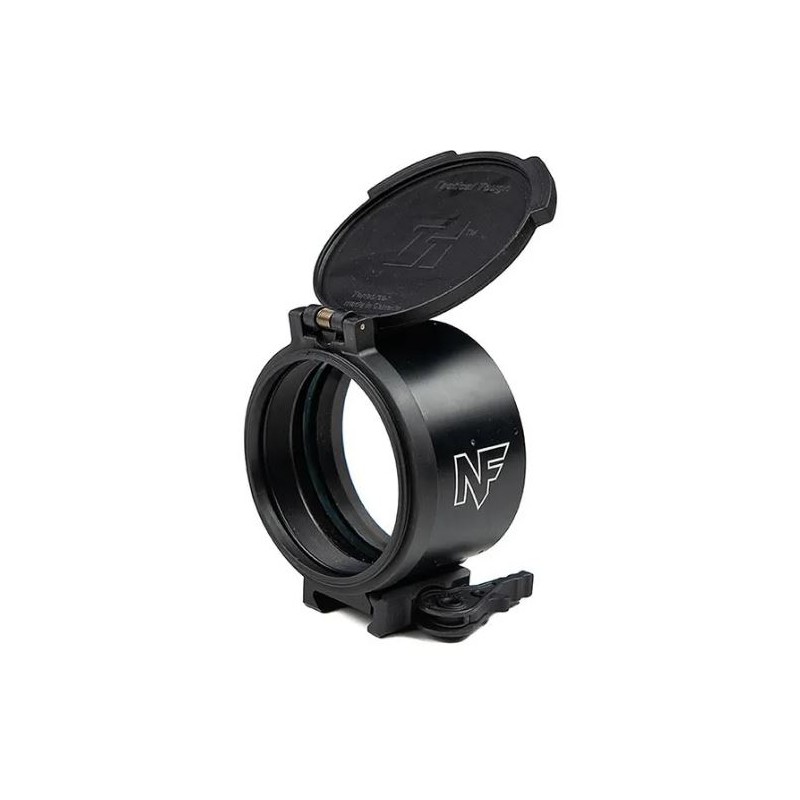

Nightforce Wedge Prism +50MOA/14,5MRAD A540

When shooting at extreme ranges, many shooters find their riflescope lacks the necessary elevation travel. The Nightforce Wedge Prism is offered in 2 variants, 50 MOA or 100 MOA, that install forward of the riflescope to increase the effective elevation travel. The Wedge Prism optically shifts the incoming image to the riflescope by a precise elevation value, which directly adds to the available elevation travel within the riflescope.

• 50 MOA/14.5 MRAD or 100 MOA/29.1 MRAD elevation shift variants available for extreme long-range use
• Quick Detach MIL-STD 1913 attachment ensures consistent elevation shift when installed in the field
• Compatible with all brands of riflescopes
• Exact elevation shift measured for each unit and engraved for reference in the field

Specifications

Optical Shift: 14.5 MRAD*

Length (excluding cover): 1.8"

Width: 2.7"

Height: 3.3"

Glass Centerline: 1.5"

Weight: 9.5 oz

Mounting System: MIL-STD 1913 (1.5" / 3 slots)

*Nominal value. The actual shift varies slightly and is measured and engraved on each unit.
