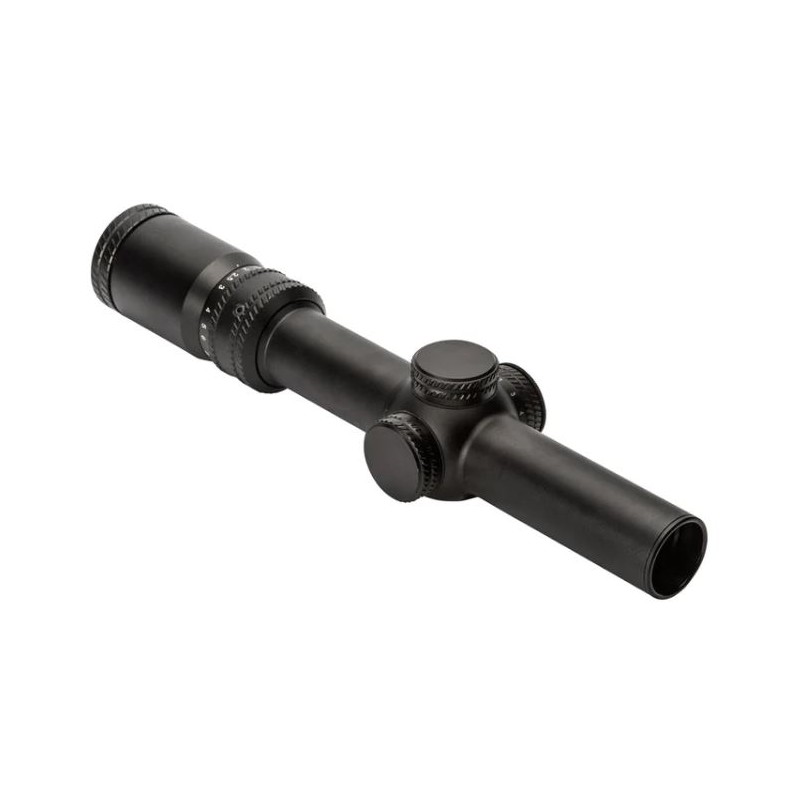

Sightmark Citadel 1-10x24 CR1 SM13138CR1 Riflescope

The Citadel 1-10x24 CR1 riflescope (SM13138CR1) brings close- to mid-range shooters, hunters and law enforcement to the next level. The Citadel 1-10x24 CR1 riflescope comes feature packed with a fully multi-coated lens and fine-etched, red-illuminated reticle with 11 brightness settings. The riflescope includes a second focal-plane CR1 reticle, great for close- to mid-range shooting and quick target acquisition. The Citadel 1-10x24 comes complete with capped low-profile turrets, ½ MOA per click windage and elevation adjustments and BDC reticle calibrated for .223 55-grain ammunition. This riflescope is IP67-rated waterproof, shockproof and fogproof all while including a throw lever and flip-up caps.

Included in Package

Flip up lens covers

Throw lever attachment

CR2032 battery

Batteries Used

Type: CR2032

Quantity: 1

Features

• BDC Reticle calibrated for .223 55-grain ammo
• 10:1 zoom ratio
• Capped low-profile turrets helps protect turrets and remain at zero
• Second focal-plane reticle
• Red-illuminated reticle with 11-brightness settings
• Single piece 30mm tube
• Aircraft-grade aluminum tube
• Hard anodized finish
• Shockproof / Fogproof / Waterproof
• Fully multi-coated lens

Specifications

Reticle, Type CR1

Reticle Etched glass

Reticle, Color Red

Illuminated (yes/no) Yes

Relative Brightness 0-11

Magnification 1-10 x

Diameter, Objective Lens 24 mm

Diameter, Eyepiece 1.6 / 40 in / mm

Diameter, Exit Pupil 11.15 - 2.2 mm

Eye Relief 3.7 3.1 / 93.98 - 78.74 in / mm

Field of view, m@100m 36.76 - 3.6

Field of view, ft@100yd 110.3 - 10.8

Diopter Adjustment +2 to -2

Diameter, Tube 30 / 1.18 mm / in

Parallax Setting 100 yds

MOA Adjustment 1/2 MOA one click =

Windage Range of Adjustment 100 MOA

Elevation Range of Adjustment 100 MOA

Windage & Elevation, Lock No

Maximum Recoil 50 BMG

Battery Type CR2032

Battery life, hours 70 - 100

Battery Voltage, V 3

Sunshade No

Nitrogen Filled Yes

Shockproof Yes

Fog Proof Yes

Focal Plane 2nd

IP Standard IP67 - waterproof and dustproof

Body Material Aluminum

Finish/Color Matte Black

Lens Coating Fully multi-coated

Operating Temperature 0 to 120 / -17 to 49 F / C

Length 11.26 / 286 in / mm

Width 2.2 / 58 in / mm

Height (in/mm) 1.7 / 42 in / mm

Weight, oz 17.5 oz
