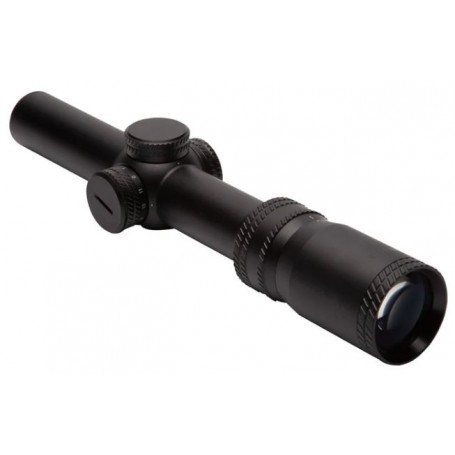

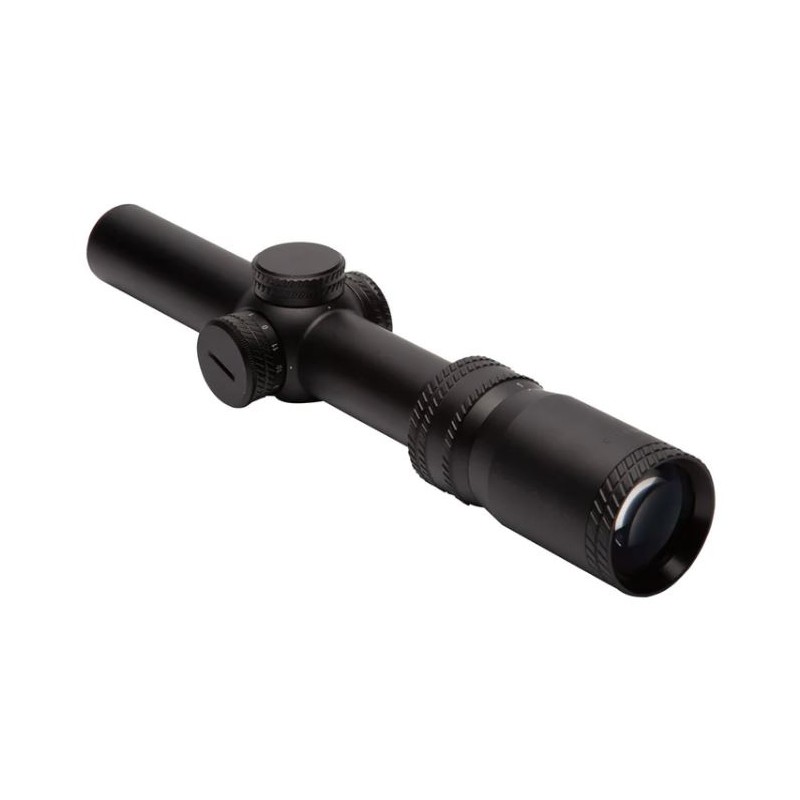

Sightmark Citadel 1-6x24 CR1 SM13038CR1 Riflescope

Offering a wide magnification range for close to mid-range shooting, the Citadel 1-6x24 combines impressive performance with a stealthy appearance. Designed with real shooters in mind, the Citadel 1-6x features a second focal plane BDC reticle calibrated for 55gr 5.56/.223, red reticle illumination for contrast against targets and low light shooting and fully multi-coated optics. Capped, low profile turrets protect zero and add to the Citadel’s no-nonsense, subdued appearance. A single-piece, 30mm tube and aircraft grade aluminum construction make the Citadel extremely durable and IP67 waterproof. Ideal for a variety of firearms, including ARs and bolt actions rifles, the Citadel 1-6x24 CR1 includes flip up lens caps, a handy throw lever and one CR2032 battery.

Included in Package

Flip up lens covers

Throw lever attachment

CR2032 battery

Batteries Used

Type: CR2032

Quantity: 1

Features

• BDC reticle calibrated for .223 55gr
• 6:1 zoom ratio
• Capped
• low-profile turrets
• Second focal plane reticle
• Red illuminated reticle
• Single-piece 30mm tube
• Shockproof
• fogproof
• waterproof

Specifications

Reticle, Type CR1

Reticle Etched glass

Reticle, Color Red

Illuminated (yes/no) Yes

Reticle Brightness Setting 0 - 11

Magnification 1 - 6 x

Objective Lens 24 mm

Diameter, Eyepiece 40 / 1.6 (mm/in)

Diameter, Exit Pupil 3.85 - 8 mm

Eye Relief 2.9 - 3.5 / 73.66 - 88.9 (in/mm)

Field of view, m@100m 6 - 35.5

Field of view, ft@100yd 18 - 106.7

Diopter Adjustment +2 to -2

Diameter, Tube 30 / 1.18 (mm/in)

Parallax Setting 100 yds

Focal Plane 2nd

MOA Adjustment 1/2 MOA

Windage Range of Adjustment 120 MOA

Elevation Range of Adjustment 120 MOA

Windage & Elevation, Lock No

Maximum Recoil .338 Win

Battery Type CR2032

Battery life, hours 70 - 100 Hours

Battery Voltage, V 3 V

Sunshade No

Nitrogen Filled Yes

Shockproof Yes

Fog Proof Yes

IP Standard IP67 - waterproof and dustproof

Operating temperature, F/C 0 to 120 / -17 to 49 F/C

Body Material Aluminum

Finish/Color Matte black

Lens Coating Fully multi-coated

Length (in/mm) 10.7 / 272 (in/mm)

Width (in/mm) 2.2 / 58 (in/mm)

Height (in/mm) 1.7 / 42 (in/mm)

Weight, oz 16.2 oz.
