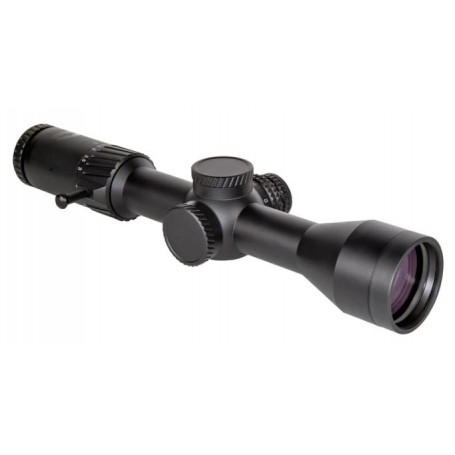

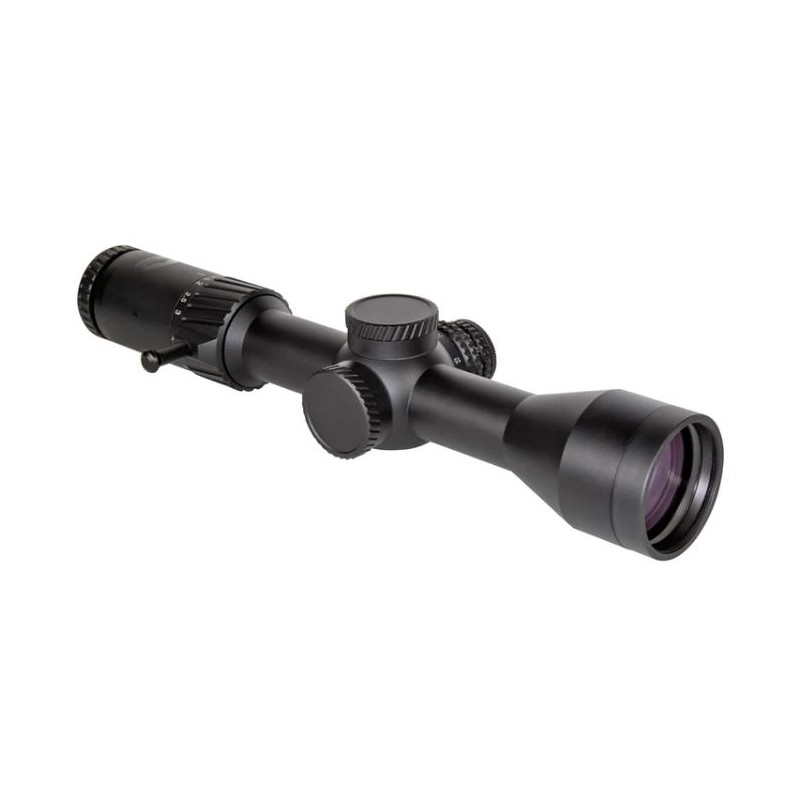

Sightmark Presidio 1,5-9x45 HDR SFP SM13147HDR Riflescope

Offering a wide magnification range for close to mid-range shooting, the Presidio 1.5-9x45 Riflescope combines elite performance with a sleek, stealthy appearance. Designed for hunters, the Presidio 1.5-9x45 features a second focal plane HDR reticle, a red illuminated reticle for low light shooting and fully multi-coated optics.

Its capped, low-profile turrets produce clear, audible clicks and feature aggressive exterior ‘knurling’, to add a distinct tactile feel to give shooters greater confidence when adjusting their windage and elevation. With built-in zero stops, and a single-piece, 30mm tube and aircraft grade aluminum construction, the Presidio is extremely accurate and durable.

IP67 waterproof and dust-proof, the Presidio is ideal for a variety of firearms, including ARs and bolt actions rifles. The Presidio 1.5-9x45 includes a flip-up lens caps, a handy throw lever and one CR2032 battery.

Included in Package

Flip up lens covers

Throw lever attachment

Batteries Used: CR2032

Quantity: 1

Batteries Used

Type: CR2032

Quantity: 1

Features

• HDR reticle
• 6:1 zoom ratio
• Capped, tactile, low-profile turrets
• Second focal plane reticle
• Red illuminated reticle
• Single-piece 30mm tube
• Aircraft-grade Aluminum
• Shockproof
• IP67-Rated dustproof and waterproof

Specifications

Reticle type HDR

Reticle Etched glass

Reticle color Red

Illuminated (yes/no) Yes

Reticle brightness settings 0-6

Magnification (x) 1.5-9

Objective lens diameter (mm) 45

Eyepiece diameter (in/mm) 1.48 in. / 37.5 mm

Exit pupil diameter (mm) 12 -5

Eye relief (in/mm) 3.9 in. / 99.1 mm

Field of view (m @100m) 22.5-3.7

Field of view (ft @100yd) 73.7-12.2

Diopter adjustment (+/-) -2/+2

Tube diameter (mm/in) 1.18in / 30mm

Parallax setting (yds) 10 yds - ∞

MOA adjustment (one click =) 1/4

Windage adjustment range 100 MOA

Elevation adjustment range  100 MOA

Windage & Elevation lock (yes/no) No

Maximum caliber .338

Battery type CR2032

Battery life (hours) Highest: 80 hrs continuous; Lowest: 1000 hrs continuous

Battery voltage (V) 3

Sunshade (yes/no) No

Nitrogen filled (yes/no) Yes

Shockproof (yes/no) Yes

Fog proof (yes/no) Yes

Focal plane 2nd

IP Standard (water rating) IP67 - waterproof and dustproof

Body material Aluminum

Finish/color Matte black

Lens coatings Fully multi-coated

Operating temperature (°F/°C) -4°-149° F / -20° - 65° C

Length (in/mm) 12.00 in. / 304.8 mm

Width (in/mm) 3.21 in. / 81.5 mm

Height (in/mm) 2.07 in. / 52.5 mm

Weight (oz) 24.1 oz / 683 g
