ZWO ASI120MC-S (color) USB 3.0 astronomy camera

Discover the ZWO ASI120MC-S, a high-performance color astronomy camera designed for speed and sensitivity. With USB 3.0 compatibility, it delivers impressive frame rates of up to 60 fps at a full resolution of 1280 x 960 pixels. Perfect for capturing stunning astronomical images, this camera is a must-have for both amateur and professional astronomers seeking quality and efficiency.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

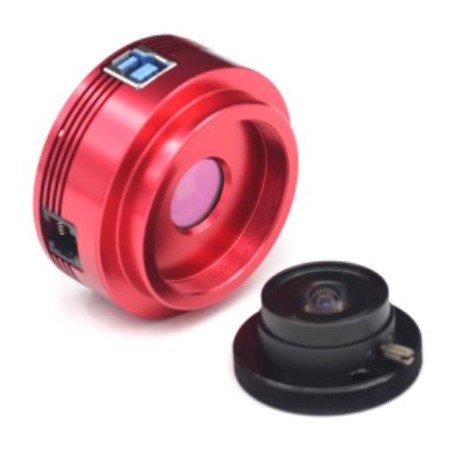

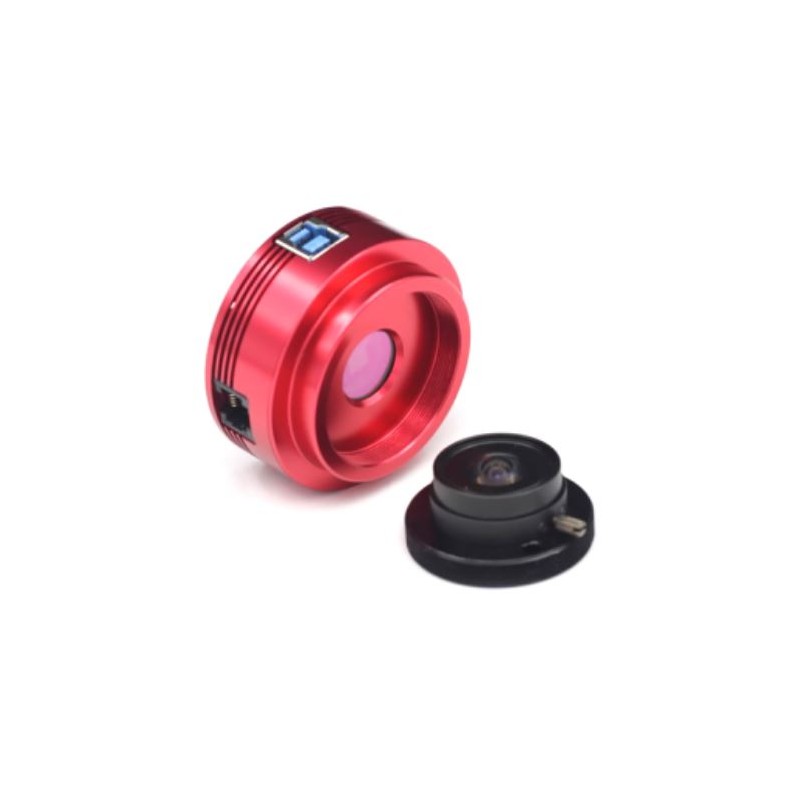

ZWO ASI120MC-S Color USB 3.0 Astronomy Camera

Introducing the ZWO ASI120MC-S Color USB 3.0 Astronomy Camera, a cutting-edge device designed for both speed and sensitivity. This remarkable camera is perfect for astrophotography enthusiasts, providing breathtaking imaging capabilities and seamless connectivity.

Key Features

  • Rapid Data Transfer: Enjoy the ultra-fast data transfer capabilities of USB 3.0, with added compatibility for USB 2.0 for versatile connectivity options.
  • Exceptional Speed and Performance: Capable of capturing up to 60 frames per second at full resolution (1280 x 960 pixels), this camera ensures swift performance and outstanding image quality.
  • Extended Exposure: Supports exposures up to 1000 seconds, allowing flexibility for various astrophotography scenarios.
  • High-Quality Imaging: Features a 1/3-inch AR0130CS matrix with a pixel size of 3.75 micrometers for detailed and high-quality images.
  • Wide Lens Included: Comes with a 2.5 mm wide lens, enhancing your field of view for greater imaging possibilities.
  • ST-4 Autoguiding Port: Equipped with an ST-4 autoguiding port for precise tracking and simplified autoguiding processes.

Package Contents

  • ASI120MC-S Camera
  • USB Cable
  • 2.1 mm Lens
  • ST-4 Cable (2 meters) for guiding
  • T2 to 1.25" Nosepiece
  • Driver Installation Plate

Technical Specifications

  • Matrix: 1/3-inch CMOS AR0130CS color
  • Resolution: 1.2 MPix (1280 × 960)
  • Pixel Size: 3.75 micrometers
  • Thread-to-Die Distance: 14 mm
  • ROI Selection: Supported
  • USB Connection: USB 3.0/2.0
  • Power Supply: Powered via USB
  • Bit Rate: 12-bit
  • Dimensions: Diameter = 62 mm, Height = 28 mm
  • Weight: 100 grams
  • Telescope Connection: T2, M28 * 0.6, 1.25" Nosepiece/Bushing
  • Tripod Connection: 1/4 inch
  • UV/IR Filter: Yes, located before the matrix
  • Binning 2x2: Supported

Operating and Storage Conditions

  • Operating Temperature Range: -5°C to +45°C
  • Storage Temperature Range: -20°C to +60°C
  • Relative Humidity Range (Operating): 20% - 80%
  • Relative Humidity Range (Storage): 20% - 95%

Available Resolutions and Speeds

  • Binning 1 × 1:
    • 1280X960 @ 60FPS
    • 1280X720 @ 98FPS
    • 1280X600 @ 116FPS
    • 1280X400 @ 168FPS
    • 960X960 @ 74FPS
    • 1024X768 @ 90FPS
    • 1024X400 @ 160FPS
    • 800X800 @ 85FPS
    • 800X640 @ 106FPS
    • 800X480 @ 141FPS
    • 640X480 @ 133FPS
    • 512X440 @ 145FPS
    • 512X400 @ 158FPS
    • 480X320 @ 196FPS
    • 320X240 @ 254FPS
  • Binning 2 × 2:
    • 640X480 @ 45FPS

The ZWO ASI120MC-S is a game-changer in the world of astrophotography, offering unparalleled speed, sensitivity, and user-friendly features. Capture the universe with stunning detail and clarity using this exceptional camera.
