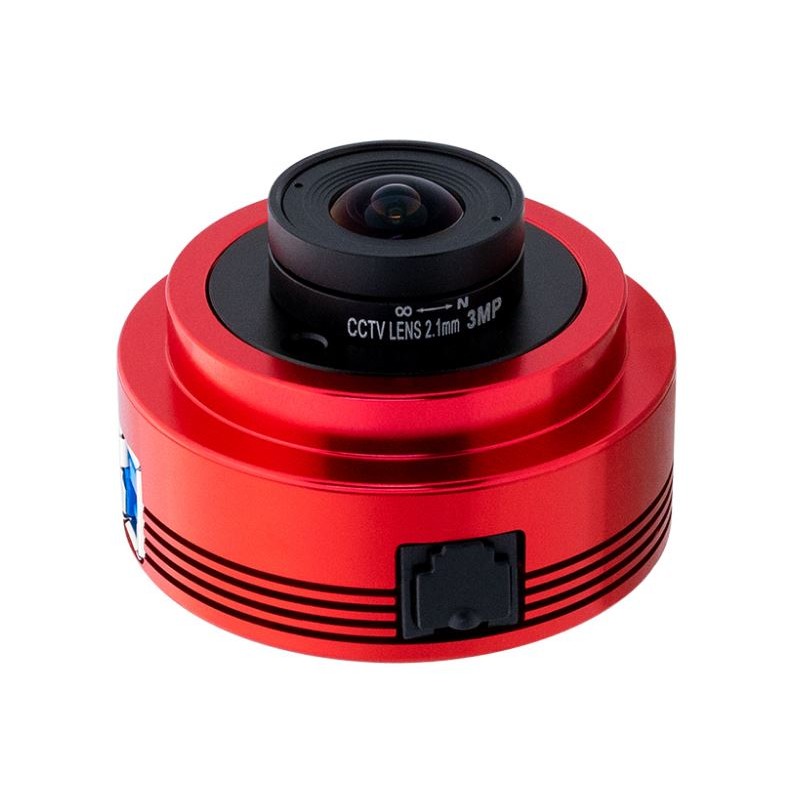

ZWO ASI120MM-S (mono) USB 3.0 astronomy camera

The ASI 120 MC-S is a cutting-edge monochrome camera designed for exceptional performance and versatility. Engineered to operate seamlessly with USB 3.0 technology, this camera offers blazing-fast speeds, allowing you to capture stunning images at an impressive 60 frames per second, all at a full resolution of 1280 x 960 pixels.

233.70 $
Tax included

190 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The ASI 120 MC-S is a cutting-edge monochrome camera designed for exceptional performance and versatility. Engineered to operate seamlessly with USB 3.0 technology, this camera offers blazing-fast speeds, allowing you to capture stunning images at an impressive 60 frames per second, all at a full resolution of 1280 x 960 pixels.

Key Highlights:

USB 3.0 Compatibility: The ASI 120 MC-S is equipped with USB 3.0 connectivity, ensuring rapid data transmission. It's also backward compatible with USB 2.0 for added convenience.

Lightning-Fast: This camera boasts remarkable speed, making it ideal for capturing fast-moving objects and dynamic scenes with precision and clarity.

Extended Exposure: With the ASI 120 MC-S, you can achieve exposures of up to 1000 seconds, enabling you to delve into long-exposure astrophotography.

High-Quality Sensor: Featuring a 1/3" AR0130CS CMOS matrix with a pixel size of 3.75 µm, this camera guarantees exceptional image quality even in low-light conditions.

Comprehensive Kit: The camera comes with a 2.5 mm wide lens and an ST-4 autoguiding port, making it a versatile choice for various imaging applications.



What's in the Box:

  • ASI 120 MC-S Camera
  • USB Cable
  • 2.1 mm Wide Lens
  • ST-4 Cable (2 meters) for Guiding
  • T2 to 1.25" Nosepiece Adapter
  • Driver Plate



Technical Specifications:

Sensor: 1/3" CMOS MT9M034 monochrome

Resolution: 1.2 MPix (1280 × 960)

Pixel Size: 3.75 µm

Thread-to-Die Distance: 14 mm

ROI (Region of Interest) Selection: Supported

Connectivity: USB 3.0 / 2.0

Power Supply: Via USB

Bit Rate: 12-bit

Dimensions: 62 x 28 mm

Weight: 100 g

Telescope Connection: T2, M28 * 0.6, 1.25" Nosepiece

Tripod Connection: 1/4 inch

UV/IR Filter: Included (Pre-mounted)

Binning 2x2 Supported

Operating and Storage Conditions:

Operating Temperature Range: -5°C to +45°C

Storage Temperature Range: -20°C to +60°C

Relative Humidity Range (Operating): 20% - 80%

Relative Humidity Range (Storage): 20% - 95%

Available Resolutions and Speeds:

Binning 1x1:

1280x960 @ 60 FPS

1280x720 @ 98 FPS

1280x600 @ 116 FPS

1280x400 @ 168 FPS

960x960 @ 74 FPS

1024x768 @ 90 FPS

1024x400 @ 160 FPS

800x800 @ 85 FPS

800x640 @ 106 FPS

800x480 @ 141 FPS

640x480 @ 133 FPS

512x440 @ 145 FPS

512x400 @ 158 FPS

480x320 @ 196 FPS

320x240 @ 254 FPS

Binning 2x2:

640x480 @ 45 FPS

The ASI 120 MC-S offers an exceptional combination of speed, sensitivity, and compatibility, making it a valuable asset for a wide range of imaging and astrophotography pursuits. Elevate your imaging capabilities with this outstanding monochrome camera.
