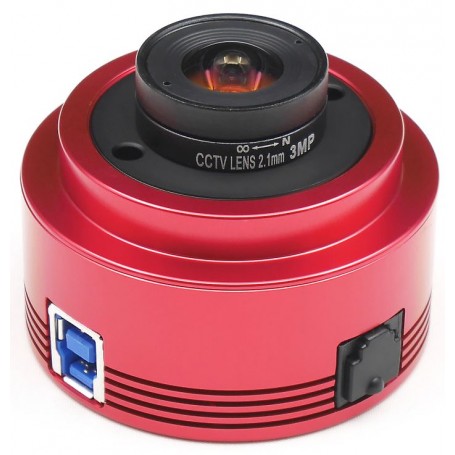

ZWO ASI 224MC astronomy camera
The ZWO ASI224MC camera, featuring the Sony IMX224 sensor, is an uncooled color camera designed for astrophotography enthusiasts. This camera boasts exceptional attributes, including an astonishingly low reading noise of just 1.5 electrons and outstanding sensitivity, particularly in the infrared spectrum. It is particularly adept at capturing planetary objects in the infrared band and smaller deep-sky phenomena such as planetary nebulae.
200 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
The ZWO ASI224MC camera, featuring the Sony IMX224 sensor, is an uncooled color camera designed for astrophotography enthusiasts. This camera boasts exceptional attributes, including an astonishingly low reading noise of just 1.5 electrons and outstanding sensitivity, particularly in the infrared spectrum. It is particularly adept at capturing planetary objects in the infrared band and smaller deep-sky phenomena such as planetary nebulae.
Key Specifications
- Resolution: 1304 x 976 pixels
- Exceptionally low reading noise coupled with high sensitivity
- Remarkable infrared sensitivity
- Adjustable exposure time ranging from 32 microseconds to 1000 seconds
- Comes with complimentary manufacturer software for automated image stacking and camera control (compatible with the FireCapture program), making it ideal for photographing nebulous celestial objects.
Technical Specifications
Version: 1.3
Image Sensor: 1/3" CMOS IMX224/IMX225 by Sony
Resolution: 1.2 megapixels (1304x976)
Individual Pixel Size: 3.75 µm
Sensor Dimensions: 4.8 mm x 3.6 mm
Sensor Diagonal: 6.09 mm
Exposure Time Range: 32 µs to 1000 s
Region of Interest (ROI): Supported
Shutter Type: Rolling Shutter
Binning: Available in 2x2
Focal Plane to Sensor Surface Distance: 12.5 mm
Sensor Protection: Equipped with anti-reflective layered glass
Operating System Compatibility: Mac, Windows, Linux
Connection Options: USB 2.0, USB 3.0
Bit Depth: 12-bit
Telescope Mounting: Supports 2", 1.25" (nose), T2 connections
Diameter: φ 62 mm
Weight: 100 grams
Operating Temperature Range: -5°C to +45°C
Storage Temperature Range: -20°C to +60°C
Operating Humidity Range: 20% to 80%
Storage Humidity Range: 20% to 95%
External Resources
Control software, drivers, and image processing software can be downloaded free of charge from the manufacturer's official website. Comprehensive user instructions provided by the manufacturer are also accessible through the same source.
Warranty
Enjoy peace of mind with a 24-month guarantee.
