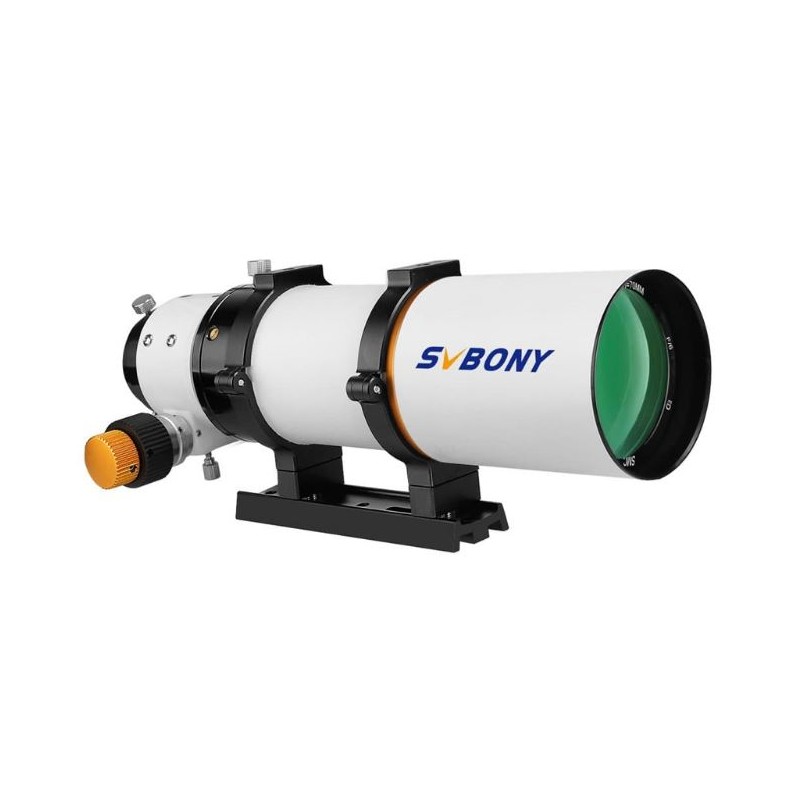

Svbony SV503 Telescope ED 70mm F6 Doublet Refractor for Astronomy (SKU: F9359A)

The SVBONY SV503 70 mm ED F/6 optical tube is a versatile and professional-grade telescope designed to meet the exacting demands of astrophotography enthusiasts. Packed with exceptional resolving power, an extensive stellar range, and a range of carefully optimized parameters, this optical instrument is your ticket to capturing stunning celestial imagery.

At its core, the SV503 is a classic refractor featuring a doublet lens system. To address the perennial challenge of chromatic aberration plaguing lens telescopes, the SVBONY team has incorporated a low dispersion glass lens of the S-FPL51 type. This lens, sourced from the esteemed Japanese company Ohara, is renowned for its optical excellence and plays a pivotal role in minimizing aberrations. Complementing this is the Ultra-wideband coating (SMC) which diligently eliminates unwanted reflections, enhancing image contrast for the crispest results.

The versatility of the SVBONY SV503 70 mm ED F/6 extends beyond astrophotography. It graciously accommodates both 1.25" and 2" eyepieces, making it equally suitable for visual observations.

Beyond its optical prowess, this telescope boasts exceptional mechanical precision and quality. Its robust extension facilitates the installation of heavy astronomical cameras and digital SLR cameras. Meanwhile, the CNC-machined mounting rings and Vixen foot ensure rock-solid stability for your imaging endeavors.

Key Features of the SVBONY SV503 70 mm ED F/6 Telescope:

• High-class refractor with a doublet lens system incorporating a low-dispersion element.
• Ultra-wideband coating (SMC) for superior image contrast.
• Suitable for both visual observations and astrophotography.
• Compatibility with 2" and 1.25" eyepieces and other accessories.
• Sturdy rack & pinion type focuser with an integrated rotator.
• CNC-machined mounting clamps and Vixen foot for uncompromising stability.

Technical Specifications:

Optical Design: Refractor

Lens System: ED doublet with air gap

Low Dispersion Lens Material: S-FPL51 glass

Front Lens Diameter (Aperture): 70 mm

Focal Length: 420 mm

Focal Ratio: f/6

Maximum Usable Magnification: 140x

Stellar Range: 11.3 mag

Light Gathering Ability: 100x

Resolution: 1.97"

Optical System Coating: Ultra-wideband coating (SMC)

Compatible Eyepieces/Diagonals: 1.25"; 2"

Focuser Diameter: 2"

Focuser Type: Rack & pinion, dual-speed with 360° rotator

Focuser Ratio: 1:10

Maximum Focuser Load Capacity: 5 kg

Mounting Bracket: Vixen foot

Tube Material: Aluminum

Tube Diameter: 88 mm

Tube Length: 318 mm

Tube Weight (Without Accessories): 2.2 kg

Tube Weight (With Accessories): 3.35 kg

Included in the Set:

• SVBONY SV503 70 mm ED F/6 Optical Tube
• Mounting Clamps
• Vixen Rail (150 mm)
• 2" / 1.25" Eyepiece Adapter

Enjoy peace of mind with a 12-month guarantee on your SVBONY SV503 70 mm ED F/6 optical tube. Unlock the potential of the cosmos with this exceptional instrument and embark on a journey of celestial discovery like never before.
