GSO 14" F/8 M-LRC Ritchey-Chreien LW (LightWeight) Truss OTA (SKU: RC14B)

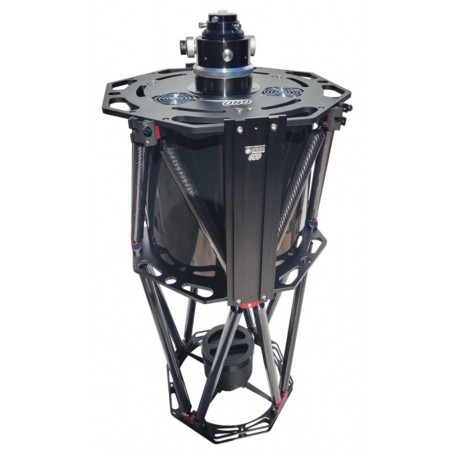

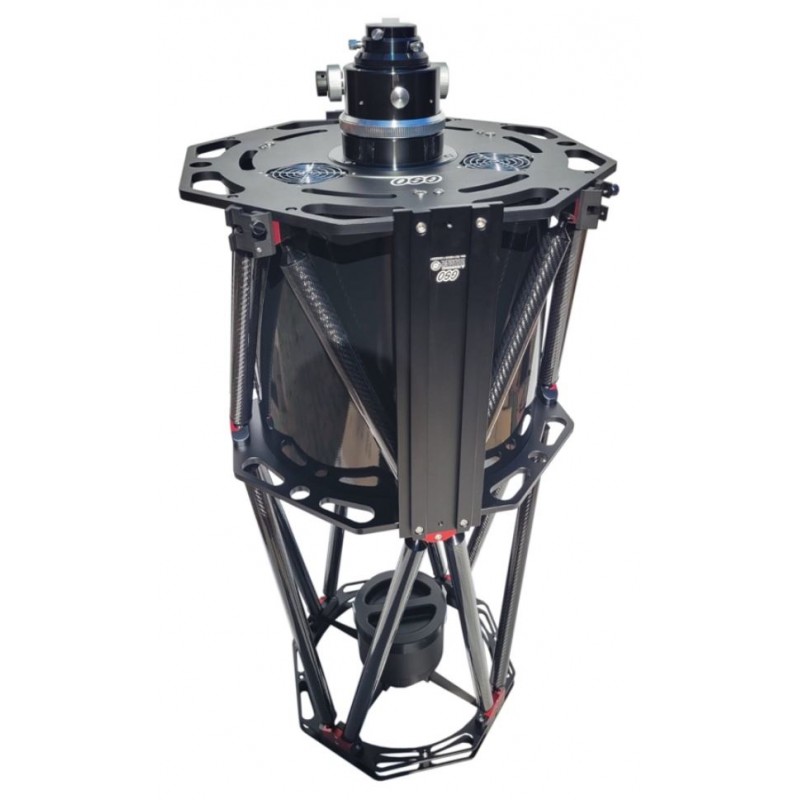

GSO RC Ritchey-Chretien 14" F/8 M-LRC Lightweight Truss Optical Tube Assembly

The GSO RC Ritchey-Chretien 14" F/8 M-LRC Lightweight Truss OTA is a top-tier telescope designed for serious astrophotographers. This advanced instrument is your gateway to capturing stunning images of the cosmos, revealing the intricate details of celestial phenomena such as nebulae and distant galaxies.

Optical Excellence: The Ritchey-Chretien Advantage

At the core of this telescope is the acclaimed Ritchey-Chretien optical design, which is ideal for astrophotography. Unlike other telescopic designs, this system eliminates common optical issues like coma, spherical aberrations, and chromatic aberrations. The GSO RC Ritchey-Chretien 14" features primary and secondary mirrors made from quartz, known for their high thermal stability. These mirrors are enhanced with a 95% reflective coating, ensuring that every image you capture is sharp, with excellent contrast and unmatched detail, thanks to a comprehensive system of internal baffles.

A Design Marvel: Carbon Fiber Frame

The telescope's open truss design is crafted from lightweight carbon fiber, reducing the overall weight while maintaining structural integrity and stability. This material choice not only enhances functionality but also adds a sleek, modern aesthetic. Additionally, the telescope is equipped with a built-in cooling system to speed up temperature equalization, outperforming traditional closed-tube designs.

Key Features of the GSO RC Ritchey-Chretien 14" F/8 M-LRC LW:

• Ritchey-Chretien optical system, eliminating common optical defects
• Advanced internal baffle system to prevent light reflections
• Robust 3.25" extractor with a wide adjustment range
• Quartz primary and secondary mirrors with high-efficiency coatings
• Lightweight, stable carbon fiber frame for fast temperature equalization
• Built-in cooling system with three fans

Technical Specifications:

Optical System: Ritchey-Chretien

Main Mirror Diameter: 14"

Focal Length: 2854 mm

Aperture: f/8

Main Mirror: Hyperbolic, Quartz

Reflective Coating of Main Mirror: Aluminum, 95% Reflectivity

Secondary Mirror: Hyperbolic, Quartz

Reflective Coating of Secondary Mirror: Aluminum, 95% Reflectivity

Lift Type: 3.25", Crayford

Back Focus: 288 mm

Cooling System: Three Fans

Accessory Mounting: Losmandy D Sockets (2 pieces)

Frame Material: Carbon Fiber

Tube Length (without extractor): 1156 mm

Tube Diameter: To Be Determined

Weight (with lift): 27 kg

Included Accessories:

• GSO RC Ritchey-Chretien 14" F/8 M-LRC LW Truss OTA
• 2" - 1.25" Adapter
• 25 mm Lift Extension (2 pieces)
• 50 mm Lift Extension (1 piece)

Warranty:

Enjoy peace of mind with a generous 24-month warranty on your GSO RC Ritchey-Chretien 14" F/8 M-LRC Lightweight Truss OTA, reflecting our commitment to quality and customer satisfaction.
