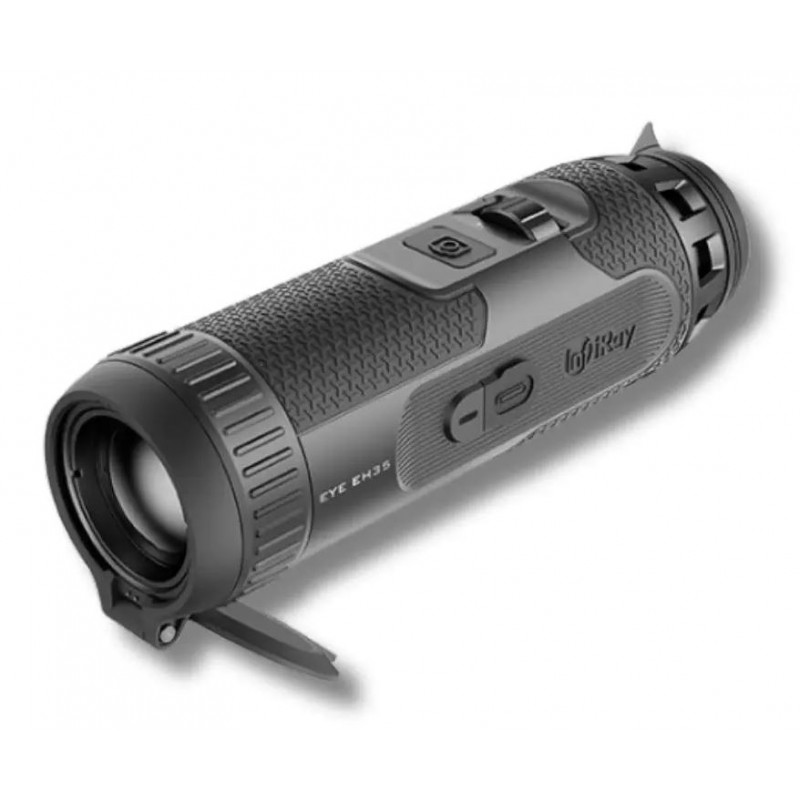

InfiRay Eye III EH35

The InfiRay EH35, a flagship model of the EYE III series, redefines high-end thermal imaging cameras with its remarkable features and exceptional performance. With a 2x optical basic magnification and a 35mm lens paired with a high-resolution sensor, this device offers unparalleled flexibility in various environments, from open fields to dense forests and mixed terrains.

One of the standout features of the EH35 is its cutting-edge detector, boasting a pixel size of just 12µm and an impressive NETD (Noise Equivalent Temperature Difference) of less than 25mK. This advanced technology ensures that you can capture the finest thermal details, even in challenging conditions.

Let's delve into the key specifications of the InfiRay EH35:

Optics:

Lens: 35mm diameter, providing a versatile balance between magnification and field of view.

Magnification: 2x basic magnification, offering a wide viewing cone of 21.9 meters at a distance of 100 meters.

Resolution: The EH35 sensor boasts an impressive resolution of 640x512 pixels, delivering crisp and detailed thermal imagery.

Versatility: Thanks to its technical specifications, the EH35 excels both in short-range applications, such as navigating dense forests, and in long-range scenarios, aiding hunters in identifying targets over 150 meters away.

Exceptional Equipment:

Connectivity: Equipped with WiFi capabilities and a dedicated app, the EH35 enables seamless data sharing and remote control.

Recording: Capture your observations in high-quality video with the built-in recording feature.

Customization: Tailor your viewing experience with a range of image display settings.

Robust Design: The EH35 is built to endure harsh conditions, featuring a cold-resistant battery that ensures up to 8 hours of operation, even in winter.

Quick Start: The auto-start function activates when you open the protective cap, providing an advantage in absolute darkness.

Rapid Charging: Benefit from the quick charge function, which fully replenishes the battery in approximately 2 hours.

Comprehensive Features: Enjoy advanced functionalities such as picture-in-picture, hotspot marking, attitude sensing, and a microphone for enhanced usability.

Technical Specifications:

Detector Resolution: 640x512 pixels

Pixel Size: 12 micrometers

NETD: Less than 25mK

Frame Rate: 50Hz

Optical Details:

Field of View: 12.5° horizontal x 10.0° vertical

Eye Relief: 20mm

Exit Pupil Diameter: 6mm

Diopter Adjustment: -3 to +6D

Detection Range: Up to an impressive 1800 meters

In addition to its exceptional technical capabilities, the InfiRay EH35 offers peace of mind with a generous three-year manufacturer guarantee. This thermal imaging camera is highly recommended for mixed and forested areas due to its moderate 2x optical magnification and the associated wide field of view. With a 35mm lens, AMOLED display, and state-of-the-art sensor, the EH35 delivers outstanding performance for discerning users seeking top-tier thermal imaging capabilities.
