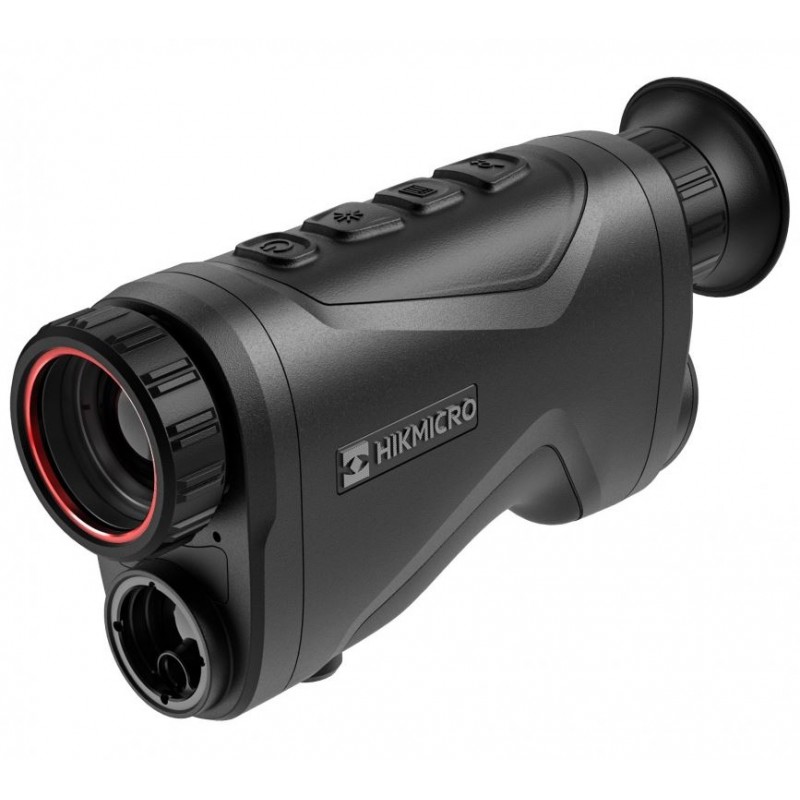

Hikvision Hikmicro Condor CH25L thermal monocular

Introducing the CH25L, a versatile thermal imaging monocular equipped with a robust 384 detector, a 25 mm focal length, and an impressive 2.5x magnification, providing an exceptional field of view spanning 18 meters. Specifically engineered for forest environments, the CH25L showcases unparalleled performance across diverse landscapes.

Delivering unparalleled clarity and detail recognition, the HIKMICRO CONDOR thermal imaging monocular boasts a high sensitivity thermal detector (NETD＜20mK), effortlessly discerning intricate details of objects and backgrounds amidst varying weather and lighting conditions.

Enhanced by purpose-built image algorithms, the HIKMICRO CONDOR ensures stunning image quality and remarkable detail resolution. These algorithms, refined through extensive analysis of hunting scenes and thermal imaging characteristics, optimize image output to perfection.

For precise distance measurement, the integrated laser rangefinder allows users to accurately gauge distances up to 1,000 meters with a deviation of just ±1 meter, ensuring the utmost accuracy in any scenario.

Designed for ergonomic comfort, the HIKMICRO CONDOR features a compact, easy-grasp shape tailored to fit the contours of the human hand, enhancing operational efficiency for both left- and right-handed users.

Constructed with a durable magnesium alloy housing, the HIKMICRO CONDOR ensures longevity and stability under challenging environmental conditions while maintaining a lightweight profile for extended use.

The inclusion of a loss-proof magnetic lens cover facilitates effortless installation and removal, providing added protection for the HIKMICRO CONDOR's SDLC lens.

With rapid 3-second boot-up and three replaceable, rechargeable 18650 batteries, the HIKMICRO CONDOR guarantees extended operational capabilities, allowing for up to 6 hours of continuous use, ideal for capturing thrilling moments during outdoor activities.

Employing an auto screen-off feature to conserve energy and prolong battery life, the HIKMICRO CONDOR automatically enters standby mode when not in use, optimizing efficiency at every turn.

Personalized settings, including customizable contrast, sharpness, and other visual preferences, offer users the flexibility to tailor their viewing experience to their liking, ensuring maximum comfort and usability.

Included

• Hikvision Hikmicro Condor CH25L thermal monocular (x1)
• Protective Bag (x1)
• Quick Start Guide (x1)
• Non-dust Cloth (x1)
• USB Cable (x1)
• Charger (x1)
• Cell (x3)

Technical Specifications:

Thermal Module:

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 384x288

Frame Rate: 50Hz

Pixel Interval: 12μm

Response Waveband: 8μm to 14μm

NETD: Less than 20 mK (@25°C), F#=1.0

Lens (Focal Length): 25mm, F1.0

Detection Range: 1200m

Focus Mode: Focus Ring

Field of View (H × V), Degrees / m @100m: 10.5° × 7.9° / 18.3m × 13.8m @ 100m

Min. Focusing Distance: 2.5m

Magnification: 2.5× - 20.0× (8×)

Image Display:

Display: 1024×768, 0.39 inch, OLED

Contrast Adjustment: Yes

Brightness Adjustment: Yes

Palettes: Black hot, white hot, red hot, fusion

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 4mm

Eye Relief: 15mm

Diopter (Range): -5D to +3D

Image Pro: Yes

Tone Adjustment: Cold, Warm

Zoom Pro: Yes

General:

Protection Level: IP67

Weight: 386g without battery

Dimension: 180.7 mm × 52.7 mm × 85.4 mm (7.11" × 2.07" × 3.36 ")

Working Temperature: -30°C to +55°C

System:

Record Video: Yes

Capture Snapshot: Yes

Hotspot: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64GB)

PIP: Yes

Hot Track: Yes

Distance Measurement: Yes

Audio Recording: Yes

Power Supply:

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: 4.5 hours of continuous running with CVBS and hotspot function off (@25°C, one provided battery), 6 hours of operation (LRF & hotspot on, @25℃, three provided batteries)

Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply

Laser Rangefinder:

Safety Class for Laser: Class 1

Wavelength: 905nm

Max. Measuring Range: 1000m

Measurement Accuracy: ±1m

Min. Measuring Range: 10m
