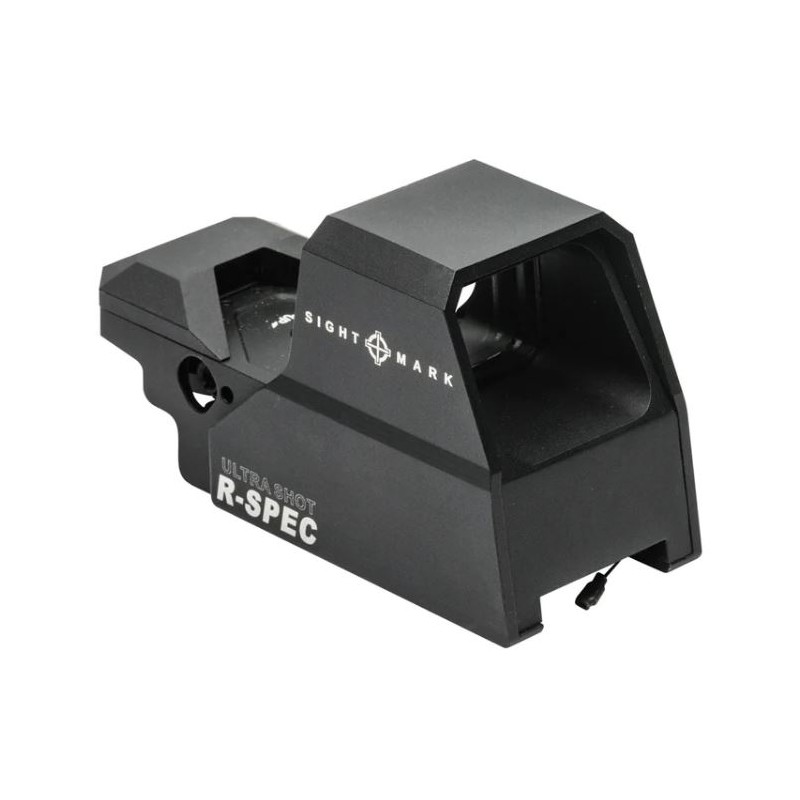

Sightmark Ultra Shot R-Spec Reflex Sight SM26031

The Sightmark Ultra Shot R-Spec Reflex Sight turns up the heat on your range time with ultra-fast target acquisition and seriously long battery life, from 200 to 2,000 hours on a single CR123A battery. The Ultra Shot R-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective silver coating, 4 illuminated red/green reticle options with 10 brightness settings, parallax correction (beyond 25 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability. Built tough, the Ultra Shot R-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly and keep you there with an Interlock internal locking adjustment system, for precise, repeatable shooting from any range your comfortable shooting at 1x magnification. The Ultra Shot R-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty.  Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

US Pat. D872219       US Pat. D872219S1

Included in Package

Neoprene cover

Adjustment tools

Battery

Manual

Batteries Used

Type: CR123A

Quantity: 1

Features

• Rugged lightweight aluminum alloy housing
• Protective aluminum shield
• Quick detach picatinny mount
• Wide lens provides quick target acquisition
• Slotted windage and elevation adjustments
• Red and green reticle illumination
• Low battery indication
• Digital switch controls
• 10 reticle brightness levels
• 1 hour auto shutoff
• Multiple reticle options
• Scratch resistant lens coating
• Interlock internal locking adjustment system

Specifications

Reticle, Type 4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crossshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)

Reticle, Color Red and Green

Magnification 1

Reticle Brightness Setting Off, 1-10

Eye relief (in/mm) Unlimited in/mm

Objective overall dimension (mm) 33x24 mm

Elevation Adjustment 120 MOA

Windage Adjustment 120 MOA

Adjustment Value 1 MOA

Parallax Setting 25 / 23 yd/m

Finish/Color Matte Black

Body Material Aluminum 6061-T6

Maximum Recoil .50 BMG Max caliber

Waterproof IP Standard IP55 - water resistant

Shockproof Yes, 8ft / 2.4m

Fog Proof No

Lens Coating AR Silver

Nitrogen Filled No

Battery Life 200 - 2,000 Hours

Mount Type Picatinny

Battery Type CR123A

Battery Voltage, V 3V

Width 1.96 / 50 in / mm

Length 4.33 / 110 in / mm

Height 2.28 / 58 in / mm

Weight, oz 10.7 oz

Operating temperature, F/C -22 to 160 / -30 to 71 F/C
