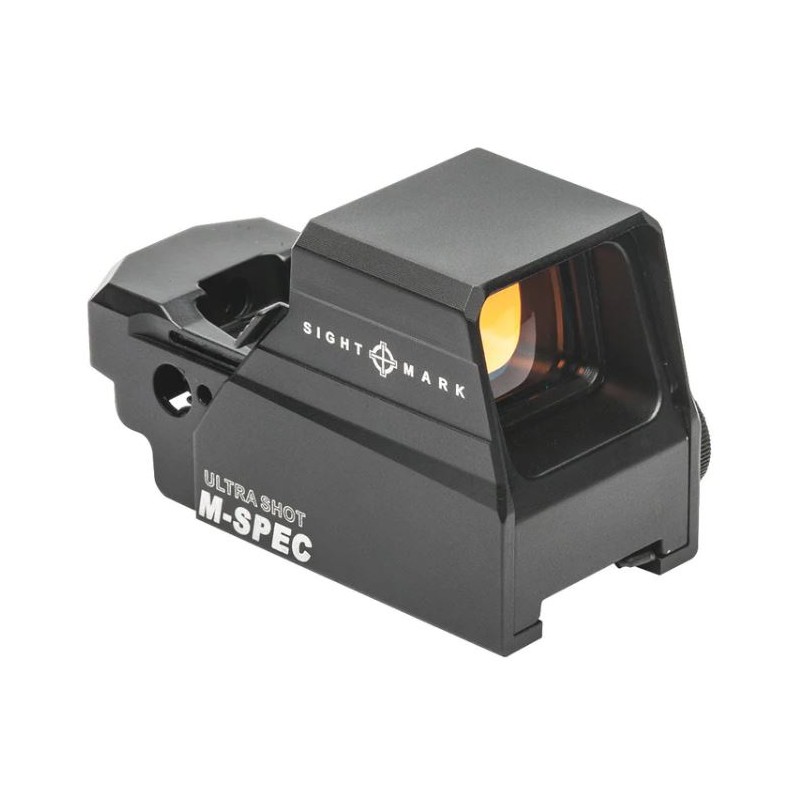

Sightmark Ultra Shot M-Spec LQD Reflex Sight SM26034

Specially designed to handle your hardcore shooting needs, the Sightmark RAM Series Ultra Shot M-Spec LQD Reflex Sight promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shockproof, dustproof, IP68 waterproof, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum protective shield and magnesium alloy body. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach Picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and Neoprene cover.

US Pat. 10139197B1

Included in Package

CR123A battery

Manual

Adjustment tools

Neoprene cover

Batteries Used

Type: CR123A

Quantity: 1

Features

• Patented integrated sunshade
• Advanced AR coated, scratch resistant lens system
• Locking quick-detach picatinny mount
• 12-hr. auto shut-off
• Motion sensing on/off activation
• Low battery indicator
• Red 65-MOA circle-dot reticle with 10 brightness settings
• Night vision brightness modes
• Parallax corrected optical system
• IP55 weather resistant protection

Specifications

Reticle, Type 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)

Reticle, Color Red

Reticle Brightness Setting Off, 1-10, NV

Magnification 1

Objective overall dimension (mm) 33x24 mm

Eye Relief Unlimited

Elevation Range of Adjustment 120 MOA

Windage Range of Adjustment 120 MOA

Adjustment Value 1 MOA

Parallax Setting 10 / 9.1 (yd/m)

Finish/Color Matte black

Body Material Magnesium alloy

Maximum Recoil .50 BMG

IP Rating (waterproof) IP68 - waterproof to 40ft/12m

Nitrogen Filled No

Shock-proofness Yes, 8ft / 2.4m

Fog Proof No

Lens Coating AR red

Mount Type Picatinny

Battery Type CR123A

Battery Life 200-2,000 Hours

Battery Voltage, V 3 V

Operating temperature, F/C -22 to 160 / -30 to 71 F/C

Length (in/mm) 4.01 / 102 (in/mm)

Width (in/mm) 2.24 / 57 (in/mm)

Height (in/mm) 2.32 / 59 (in/mm)

Weight, oz 10.2 oz.
