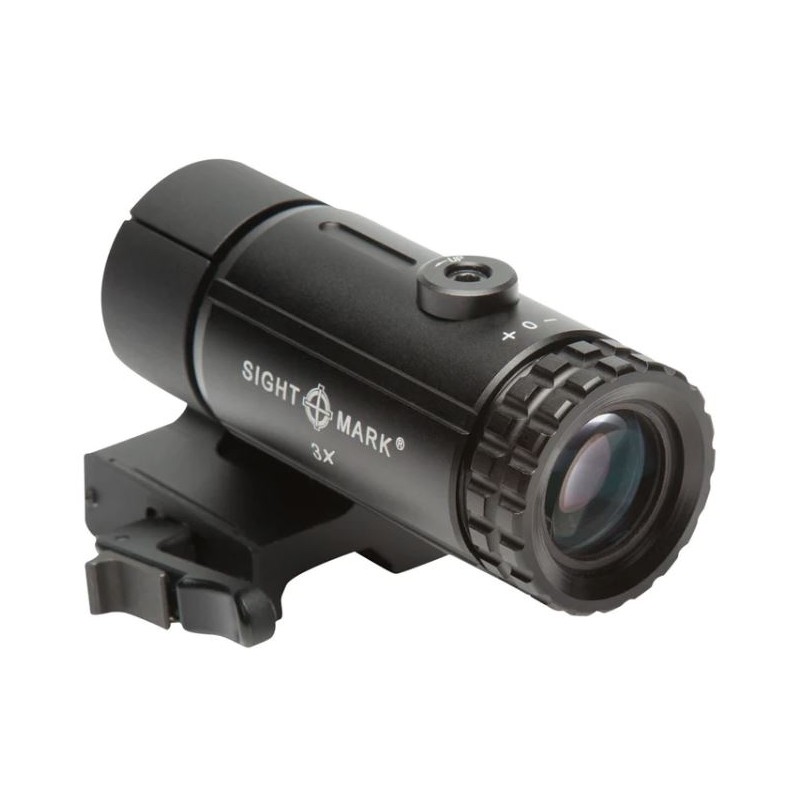

Sightmark T-3 Magnifier with LQD Flip to Side Mount SM19063

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations.

186.82 $
Tax included

151.89 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the center of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

Included in Package

Flip to side LQD mount

Adjustment tools

Manual

Features

  • Locking, quick detach mount for quick and easy removal
  • Flip-to-side mount provides rapid transition between optical systems
  • Fully multi-coated, scratch resistant
  • External windage/elevation adjustment for reticle alignment
  • Increases magnification of accompanying sights for greater engagement range
  • EOTech® and Aimpoint® compatible
  • Aluminum construction



Specifications

Magnification 3x

Diameter, Objective Lens 23 mm

Diameter, Eyepiece 1.26/32 in/mm

Diameter, Exit Pupil 7.6 mm

Eye relief (in/mm) 2.25/57 in/mm

Field of view, m@100m 14.43

Field of view, ft@100yd 43.3

Diopter Adjustment +3 to -3

Diameter, Tube 30 mm

Maximum Recoil .308 Caliber

Shockproof Yes

Fog Proof No

IP Rating (waterproof) IP55 - water resistant

Finish/Color Matte black

Body Material Aluminum

Lens Coating Full Multi-coated

Mount Type Picatinny

Operating temperature, F/C -22 to 160 / -30 to 71 F/C

Length (in/mm) 4 / 103 in/mm

Width (in/mm) 2.6 / 66.2 in/mm

Height (in/mm) 1.67 / 42.5 in/mm

Weight, oz 10.6 oz.
