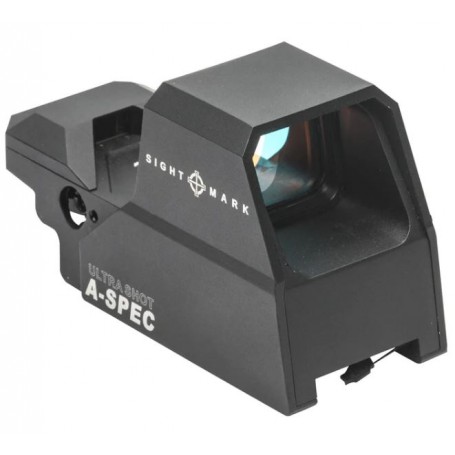

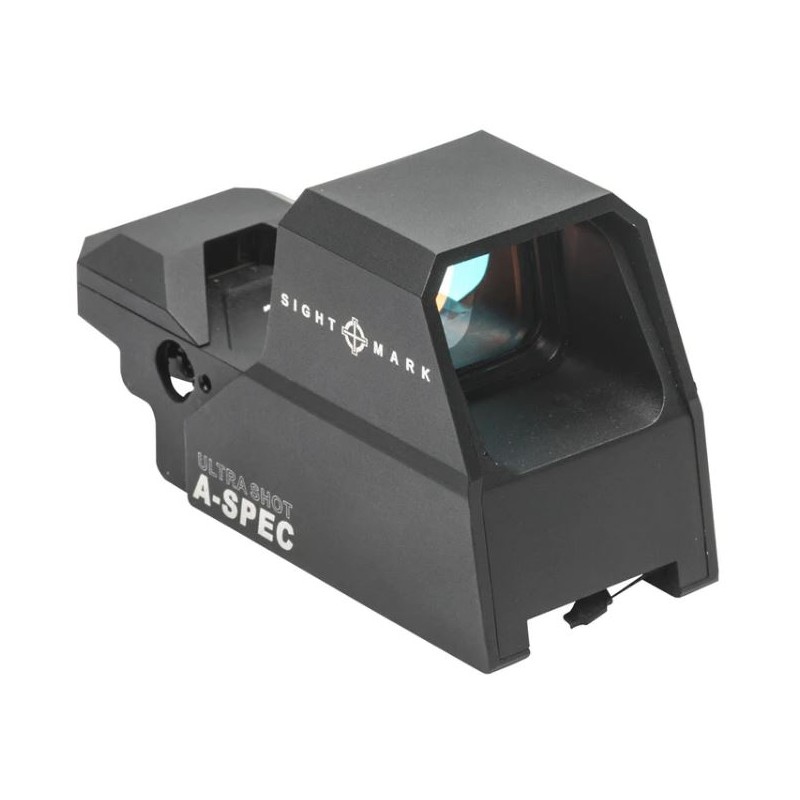

Sightmark Ultra Shot A-Spec Reflex Sight SM26032

Designed to deliver advanced optic performance, the Sightmark Ultra Shot A-Spec Reflex Sight promises repeatable accuracy and ultra-fast target acquisition for recreational, professional and competition shooting environments. The Ultra Shot A-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, 4 illuminated red reticle options with 10 brightness settings, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even when perfect sight alignment isn’t an option. Built tough, the Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty.  The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

US Pat. D872219     US Pat. D872219S1

Included in Package

CR123A battery

Manual

Adjustment tools

Neoprene cover

Batteries Used

Type: CR123A

Quantity: 1

Features

• XT-3 Magnifier compatible
• Advanced AR coated
• Scratch resistant lens system
• Night vision brightness modes
• 4 red reticle options with 10 brightness settings
• Quick detach mount for easy on/off application
• Auto-off capabilities
• Low battery indicator
• Recoil rated up to .50 BMG
• Up to 2000 hours of battery life
• Parallax corrected optical system

Specifications

Reticle, Type 4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)

Reticle, Color Red

Reticle Brightness Setting Off, 1-10, NV

Magnification 1

Objective overall dimension (mm) 33x24 mm

Eye relief (in/mm) Unlimited

Elevation Range of Adjustment 120 MOA

Windage Range of Adjustment 120 MOA

Adjustment Value 1 MOA

Parallax Setting 10 / 9.1 yd/m

Finish/Color Matte black

Body Material Aluminum 6061-T6

Maximum Recoil .50 BMG Max caliber

IP Rating (waterproof) IP55 - water resistant

Nitrogen Filled No

Fog Proof No

Shock-proofness Yes, 8ft / 2.4m

Lens Coating AR red

Mount Type Picatinny

Battery Type CR123A

Battery Life 200-2,000 Hours

Battery Voltage, V 3 V

Operating temperature, F/C -22 to 160 / -30 to 71 F/C

Length (in/mm) 4.33 / 110 in/mm

Width (in/mm) 1.96 / 50 in/mm

Height (in/mm) 2.28 / 58 in/mm

Weight, oz 10.8 oz.
