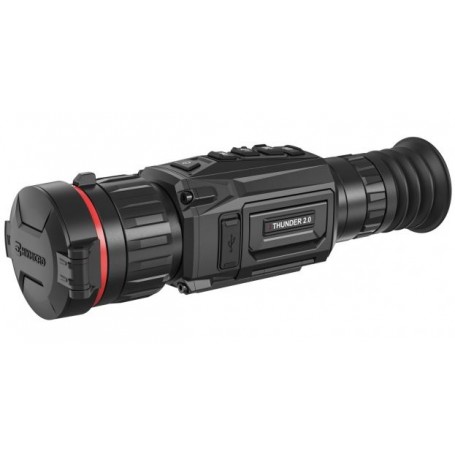

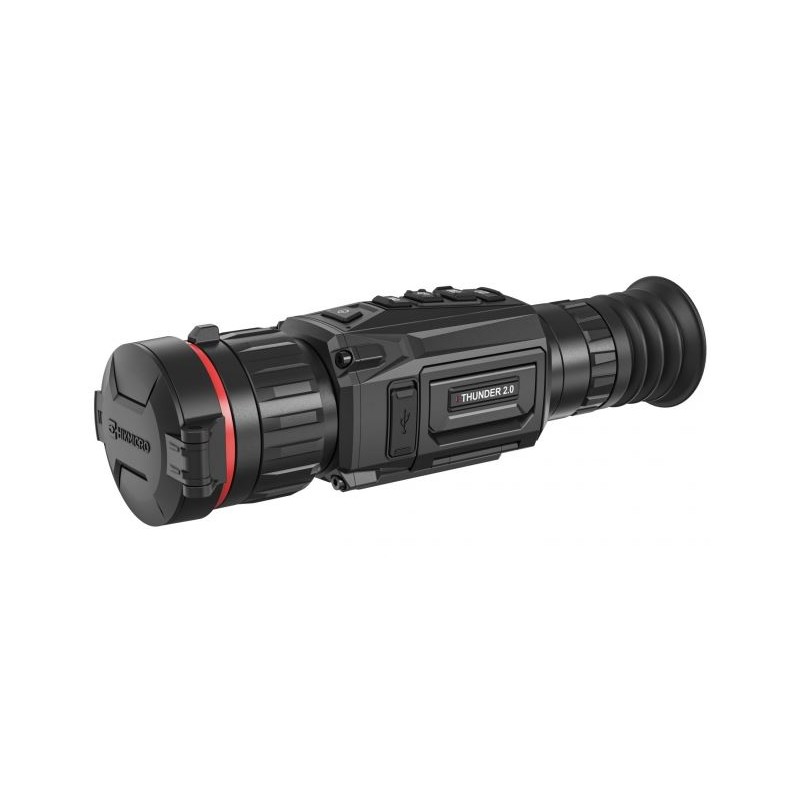

Hikvision Hikmicro Thunder Zoom TH50Z 2.0 thermal imaging scope
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Hikvision Hikmicro Thunder Zoom TH50Z 2.0 thermal imaging scope

The TH50Z 2.0, boasting a magnification range from 2.2x to 34.6x through its 384 detector @20nK, is ideally suited for both wooded and open field environments. Additionally, its F0.8 large aperture enhances your object observation capabilities significantly. Supplier Reference: HM-TR53-2550S1G/W-TH.

3234.90 $
Tax included

2630 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

*** This product is available with delivery restrictions, ensuring that we can only ship it within Poland.

Description

The TH50Z 2.0, boasting a magnification range from 2.2x to 34.6x through its 384 detector @20nK, is ideally suited for both wooded and open field environments. Additionally, its F0.8 large aperture enhances your object observation capabilities significantly.

Capturing Vivid, Informative, and Layered Images

Featuring an exceptionally high thermal sensitivity (NETD<20mK) detector coupled with a robust thermal camera, the Hikmicro thermal scope THUNDER ZOOM 2.0 guarantees sharp, detailed, and multi-dimensional images, even in environments with subtle temperature differentials.

Enhanced Identification Capability with Large Aperture

The generously sized apertures of the THUNDER ZOOM 2.0 ensure superior heat radiation capture, leaving no detail unnoticed. With various lens combinations, distinguishing your target from the surroundings becomes effortless.

Maintaining High-Quality Images with Optical Zoom

Utilizing advanced optical zoom technology, the Hikmicro THUNDER ZOOM 2.0 provides dual Field of View (FOV) options without compromising image quality. This groundbreaking technology, a first in 20mK thermal scopes, ensures clear and detailed visuals even when magnified.

Efficient Zeroing Options

With the choice between One-Time and Separate Zeroing methods, zeroing your scope becomes a breeze. The One-Time Zeroing simplifies the process by automatically adjusting the zero position when switching between lenses, saving both time and ammunition. Note: Zeroing should be performed on the 50mm lens for the TQ50Z 2.0. Alternatively, Separate Zeroing allows for precise adjustments on each lens individually, ensuring optimal accuracy for your game.

Durable Design for Longevity

Crafted from magnesium alloy, the THUNDER ZOOM 2.0 boasts extreme durability with an operating temperature range from -30℃ to 55℃, ensuring reliable performance even in harsh conditions.

High Shock Resistance for Versatility

With a remarkable shock resistance of up to 1000g/0.4ms, the Hikmicro THUNDER ZOOM 2.0 remains unfazed even when subjected to powerful forces, making it suitable for various firearm calibers including .375 H&H, 12-gauge, and 9.3 × 64.

Extended Operation Time and Convenient Charging

Equipped with two new battery packs, the THUNDER ZOOM 2.0 offers extended operational time surpassing 21 hours, with the added convenience of direct charging. Its performance excels, particularly in low-temperature environments.

Efficient Settings for Enhanced Hunting

The Quick Menu allows for swift adjustments to brightness and contrast, aiding in the quick recognition of image details. Additionally, the Picture-in-Picture (PIP) function can be activated with a single press, enhancing efficiency during hunts.

Customizable Reticle Profiles

Choose from 5 reticle groups with 4 colors and 10 reticle types, enabling customization and saving of multiple profiles directly on the THUNDER ZOOM 2.0 for added convenience.

Seamless Sharing with Hikmicro Sight APP

The comprehensive Hikmicro Sight APP supports preview, remote control, browsing, downloading, sharing of memorable moments, and firmware updates for outdoor devices.



Included Accessories:

  • Hikvision Hikmicro Thunder Zoom TH50Z 2.0 thermal imaging scope (x1)
  • Battery Charger (x1)
  • Type-C Cable (x1)
  • Lint-free Cloth (x1)
  • Quick Start Guide (x1)
  • Batteries (x2)
  • Bag (x1)



Technical Specifications:

Thermal Module

Image Sensor: Uncooled Focal Plane Arrays

Maximum Resolution: 384x288

Frame Rate: 50Hz

Pixel Interval: 12μm

NETD: Less than 20mK (25°C, F#=1.0)

Lens (Focal Length): 25mm, F0.8 and 50mm, F1.0

Detection Range: 1200m / 2600m

Focus Mode: Optical Zoom, Focus Ring

Field of View (H × V), Degrees / m @100m: 10.5° × 7.9° / 18.4m × 13.8m; 5.3° × 4.0° / 9.2m × 6.9m

Min. Focusing Distance: 25mm: 4m / 50mm: 10m

Magnification: 2.2x-17.4x / 4.3x-34.6x (8x)

Image Display

Display: 1024x768, 0.39 inch, OLED

Brightness Adjustment: Yes

Palettes: Black hot, white hot, red hot, fusion

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 6mm

Eye Relief: 45mm

Diopter (Range): -5D to 5D

Tone Adjustment: Cold, Warm

General

Protection Level: IP67

Weight: 750g without battery

Dimension: 241.2mm × 67.0mm × 73.4mm

Working Temperature: -30°C to +55°C (-22°F to 131°F)

System

Record Video: On-board video recording

Capture Snapshot: Yes

Hotspot: Yes

Standby Mode: Yes

Storage: Built-in EMMC (16 GB)

PIP: Yes

DPC: Yes

Hot Track: Yes

Distance Measurement: Yes

Audio Recording: Yes

Recoil-activation Recording: Yes

Max. Recoil: 1000g/0.4ms

Zeroing Profiles: 5

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: ≥10.5h (25°C, with hotspot off)

Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply
