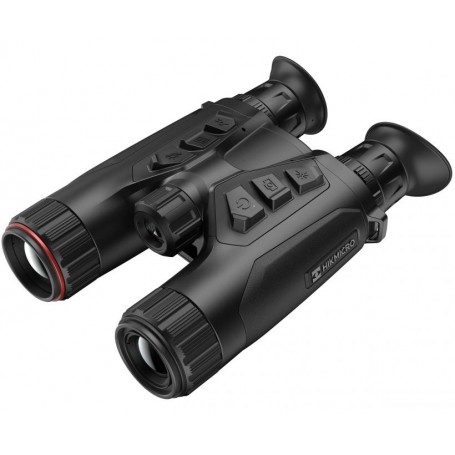

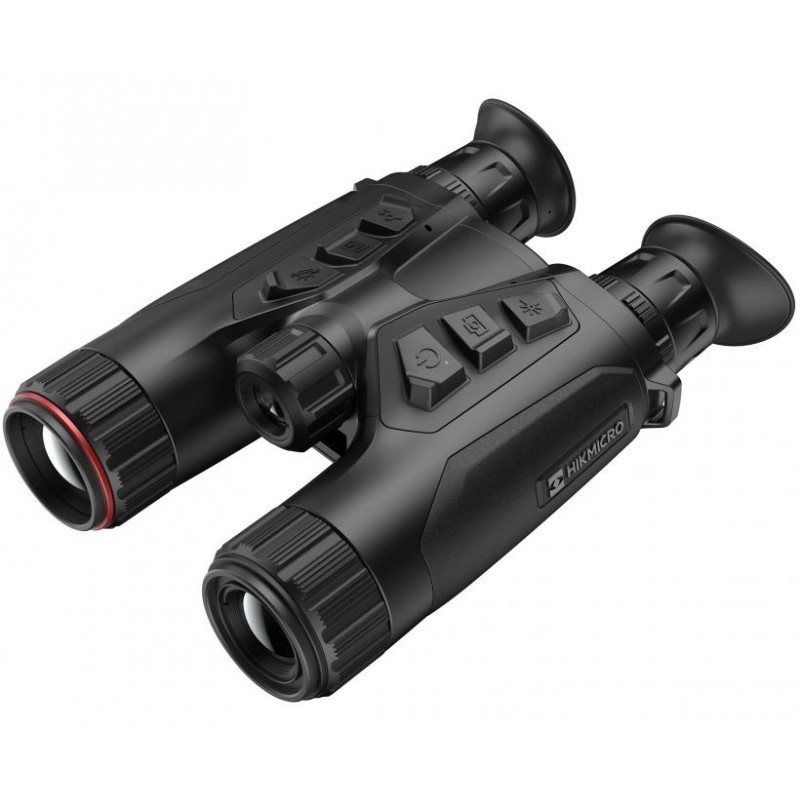

Hikvision Hikmicro Habrok HQ35LN LRF 940 nm thermal binoculars

Experience unparalleled accuracy and clarity with the HQ35LN, featuring a potent combination of a 640 thermal detector, 2560 CMOS detector, and a 35mm/F1.0 lens boasting a basic 3x magnification, ideal for a wide array of hunting scenarios.

Crystal-Clear Imaging and Exceptional Detail Recognition

The HIKMICRO HABROK multi-spectrum binocular integrates a high-sensitivity (NETD<20mK) thermal detector, facilitating effortless and precise identification of objects, details, and backgrounds across diverse weather and lighting conditions.

High-Definition Digital Camera with 2560x1440 Resolution

Equipped with a robust 0.001Lux Starlight Camera, the HABROK captures subjects vividly during daylight and delivers exceptional detail even in low-light conditions.

Cutting-Edge Image Algorithm for Superior Quality

Leveraging HIKMICRO's self-developed Zoom Pro image algorithm, the HABROK produces ultra-clear images with remarkable detail and minimal pixilation, particularly evident during digital zoom.

Versatile All-in-One Design for Varied Scenarios

The HIKMICRO HABROK combines a thermal camera, digital day & night camera, IR Emitter, and Laser Rangefinder module, making it ideal for all-day and night activities.

Essential Features for Enhanced Functionality:

IR Emitter: Built-in emitter with adjustable beam angle for use in total darkness (940nm).

LRF: Integrated laser rangefinder with up to 1,000m range @± 1m accuracy for precise distance measurements.

Compact and Ergonomic Design for Comfortable Use

Maintaining the classic daytime binocular appearance, the HABROK features a lightweight (<780g) magnesium alloy housing with an ergonomic design and intuitive button arrangement for comfortable handling.

Customizable Visual Experience

Both lenses support focus adjustment, and the interpupillary distance is adjustable to accommodate various users. The 1920x1080 sub-round 0.49’’ large OLED display offers immersive observing perspectives for an enhanced hunting experience.

Robust Construction for Extended Durability

Crafted from magnesium alloy, the HABROK boasts a robust structure capable of withstanding harsh environmental conditions, ensuring long-lasting durability.

Convenient Replaceable and Rechargeable Batteries

The HABROK comes with four 18650 batteries, offering an impressive 6-hour continuous operation per charge, eliminating power concerns and allowing users to capture every moment.

Energy-Efficient Auto Screen-Off Function

Featuring a smart algorithm, the HABROK automatically activates the screen-off function when tilted laterally at 75° or upward/downward at 70°, conserving battery energy effectively.

Included

• Hikvision Hikmicro Habrok HQ35LN LRF 940 nm thermal binoculars (x1)
• Neck Strap (x1)
• Type-C Cable (x1)
• Tripod Adapter (x1)
• Battery (x4)
• Quick Start Guide (x1)
• Lint-free Cloth (x1)
• Battery Charger (x1)

Technical Specifications:

Thermal Module:

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 640 x 512

Frame Rate: 50Hz

Pixel Interval: 12μm

Response Waveband: 8μm to 14μm

NETD: Less than 20 mK (@25°C), F#=1.0

Lens (Focal Length): 35mm, F1.0

Detection Range: 1800m

Focus Mode: Focus Ring

Field of View (H × V), Degrees / m @100m: 12.5°×10.1°/ 22.0m×17.6m

Min. Focusing Distance: 3.5m

Magnification: 3.0x-24.0x (8x)

Optical Module:

Image Sensor: 1.88'' Progressive Scan CMOS

Max. Resolution: 2560 x 1440

Min. Illumination: 0.001 lux @ (F1.0 , AGC On)

Field of View (H × V), Degrees/m @100 m: 13.9°x7.8° / 24.4m × 13.6m

Focal Length: 31mm, F1.2

Min. Working Distance: 3m

Viewing Range at Night: 350m

Magnification: 2.9x-23.2x（8x)

Focus Mode: Focus Ring

Smart IR: Yes

Image Display:

Display: 0.49 inch, OLED, 1920 ×1080

Contrast Adjustment: Yes

Brightness Adjustment: Yes

Palettes: Thermal (Black Hot, White Hot, Red Hot, Fusion); Optical (Day, Night, Auto)

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 8mm

Eye Relief: 15mm

Diopter (Range): -5D~+3D

Tone Adjustment: Cold, Warm

Zoom Pro: Yes

General:

Protection Level: IP67

Weight: 780g without batteries

Dimension: 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4")

Working Temperature: -30℃ ~ +55℃

Interpupillary Adjustment Range: 60 mm to 74 mm

Mounting Adapter: 1/4“-20-UNC

System:

Record Video: Yes

Capture Snapshot: Yes

Hotspot: Yes

GPS: Yes

Digital Magnetic Compass: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Hot Track: Yes

Audio Recording: Yes

Local Album: Yes

Power Supply:

Battery Type: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: ≥6h (25 °C, with hotspot off)

Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply

Laser Rangefinder:

Safety Class for Laser: Class 1

Wavelength: 905nm

Max. Measuring Range: 1000m

Measurement Accuracy: ±1m

Min. Measuring Range: 10m

Infrared Illuminator:

Emitter: LED

IR Wavelength: 940nm

Beam Angle Adjustable: 7.6-11.5°
