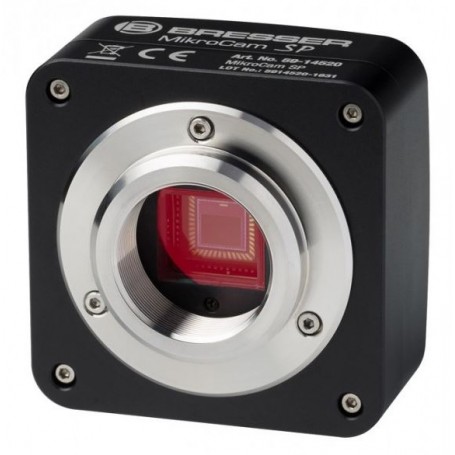

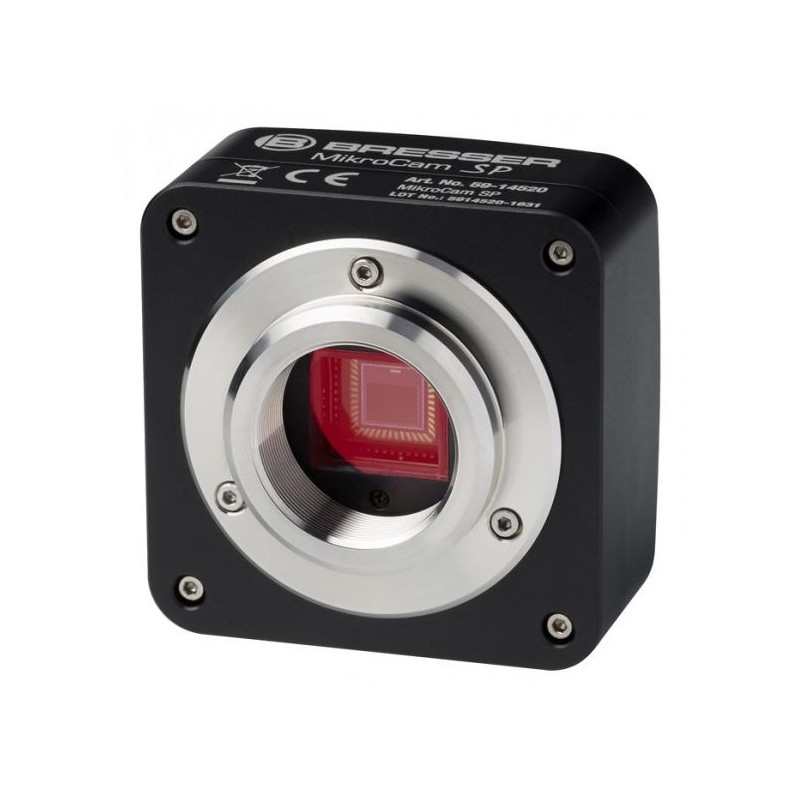

Bresser MicroCam 5,0 MP PC ocular for microscopes

Introducing the MicroCam: a cutting-edge electronic eyepiece designed for microscopes, boasting an impressive 5 million pixel physical resolution!

The MicroCam, a PC eyepiece and USB camera for microscopes, represents a technological leap in microphotography. By seamlessly replacing the traditional eyepiece with the MicroCam, you can instantly view your subject on your computer screen, revolutionizing the way you engage with microscopy. This innovative device empowers you to effortlessly create photographic documentation of microscopic specimens. Furthermore, its adaptable resolution settings cater to your specific requirements, offering three fundamental modes: single shots, photo sequences, and movie recording. Connecting to your computer is a breeze, thanks to its USB compatibility.

In addition to the MicroCam itself, the kit includes professional software that serves as a versatile platform for editing captured images. It features built-in measuring tools for precise dimensioning of intriguing specimen components, as well as a counting function for accurate object quantification. The software also provides a wealth of useful settings and filters to help you obtain optimal images.

Key Features:

• Effortless and speedy installation
• Simple eyepiece replacement in the microscope tube
• Quick USB connection to your computer
• Compatible with microscopes featuring 23, 30, and 30.5 mm tube diameters
• Ability to capture images in both graphical and video formats
• Built-in measuring and counting functions

Technical Specifications:

Resolution: 5.0 MPix

Magnification: Approximately 10x

Matrix Type: CMOS

Maximum Resolution: 2592x1944 pixels

Single Pixel Size: 2.2 x 2.2 µm

Active Area Size: 5.7 x 5.7 mm

Capture Speed for Maximum Resolution: 8 frames per second (fps)

Capture Speed for 640x480 Resolution: 30 frames per second

Exposure Selection Modes: Automatic and Manual

White Balance Selection Modes: Automatic and Manual

System Requirements:

Operating System: Windows 2000 / XP / Vista 32

Minimum RAM: 1GB

Minimum Free Disk Space: 2GB

USB Port: 2.0

Additional Included Equipment:

Software on CD

USB cable for computer connection

Adapters for 30 mm and 30.5 mm microscope tubes

Warranty: Enjoy peace of mind with a 2-year warranty.
