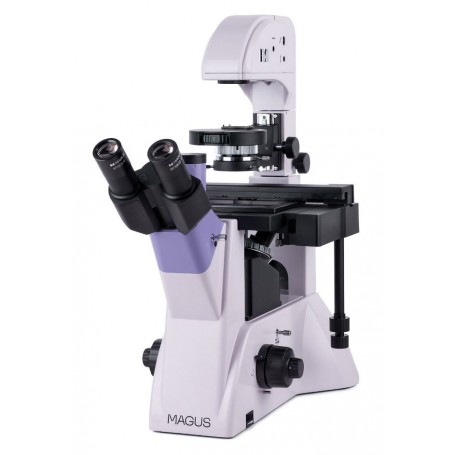

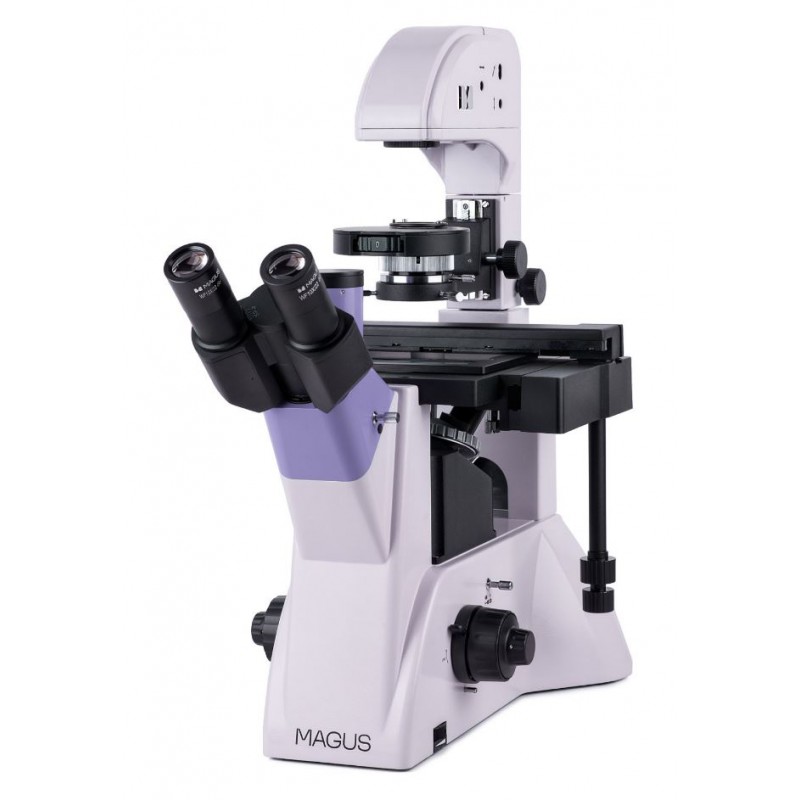

MAGUS Bio V350 Biological Inverted Microscope

MAGUS Bio V350 is a biological inverted microscope, which is used for studying stained and unstained samples in laboratory ware – Petri dishes, flasks, plates. The height of the dishes can be 55mm, and if you tilt the illuminator stand – up to 165mm. The bottom thickness of compatible ware is up to 1.2mm. The microscope, which utilizes the brightfield field and phase contrast microscopy techniques in the transmitted light, has a trinocular tube/side port camera for mounting a digital camera and monitor. It is used for routine laboratory and research work as well as teaching.

Optics

When assembling the microscope, you can select the position of the trinocular head: It can be rotated 180° to adjust the height of the exit pupil. Use the vertical tube to mount the monitor and the side port on the microscope body to mount a digital camera. The beam splitting on the body is 100/0 or 0/100 as well as 50/50 on the trinocular tube (when it is open) or 100/0 (when it is closed).

Four infinity plan achromatic objectives are included, one of which is a phase objective. Once four of them are installed in the revolving nosepiece, one slot is left free for an additional objective.

Illumination

The phase-contrast condenser enables easy and convenient switching between microscopy techniques. It has four working positions: a free aperture for the brightfield technique as well as 10x, 20x, and 40x apertures for phase contrast using a suitable magnification objective.

The transmitted light source is a 30W halogen bulb that emits light of the color temperature that allows for comfortable work. It is brightness adjustable and is AC powered. The illumination system offers the use of the Köhler illumination to enhance image quality.

Stage and focusing mechanism

Four dish holders for the stage are included. They can be moved along the X and Y axes using a mechanical attachment, while the stage itself remains stationary. The holders are designed to hold labware of various sizes.

The focusing mechanism runs smoothly. The coarse focusing mechanism has a lock knob and tension adjustment. Fine focusing scale value: 2μm. The knobs are located at the base of the microscope so you can keep your hands in a more relaxed position while working.

Accessories

There are additional eyepieces, phase objectives, digital cameras, and calibration slides for the microscope to maximize the capabilities of the microscope.

Key features:

• For viewing samples in laboratory ware up to 55mm high and a bottom thickness up to 1.2mm
• If the illuminator stand is tilted, you can use dishes up to 165mm high
• Brightfield and phase-contrast techniques; phase-contrast condenser with a field diaphragm
• Stage with 4 dish holders of different sizes; mechanical attachment for moving the sample along two horizontal axes
• The microscope head rotates at 180°
• Two options for camera and monitor mounting: in the vertical tube and on the microscope body
• Transmitted light source – 30W halogen lamp powered by an AC power supply
• A wide range of optional accessories

The kit includes:

• Base with a power input, transmitted light source, focusing mechanism, condenser, and revolving nosepiece
• Trinocular head
• Infinity plan achromatic objective: PHP2 10x/0.25 phase WD 4.27mm
• Infinity plan achromatic objective: PL 10x/0.25 WD 4.27mm
• Infinity plan achromatic objective: PL 20х/0.40 WD 8.0mm
• Infinity plan achromatic objective: PL 40х/0.60 WD 3.5mm
• Eyepieces 10x/22mm with long eye relief (2 pcs.)
• Fixed stage
• Mechanical attachment for moving the specimen
• Dish holders (4 pcs.)
• Power cord
• Dust cover
• User manual and warranty card

Specifications

Product ID 82907

Brand MAGUS

Warranty 5

EAN 5905555018119

Package size (LxWxH) 49.5x34.5x73

Shipping Weight 19.5

Type biological, light/optical

Head trinocular

Nozzle Siedentopf, rotatable 180°

Head inclination angle 45 °

Magnification, x 100–400 basic configuration (*optional: 100–500/600/800/1000)

Eyepiece tube diameter, mm 30

Eyepieces 10х/22mm, eye relief: 10mm (*optional: 10x/22mm with scale, 12.5x/14; 15x/15; 20x/12; 25x/9)

Objectives infinity plan achromatic: PL 10x/0.25, PL 20x/0.40, PL 40x/0.60, PHP2 10x/0.25 phase; parfocal distance 45mm (*optional: PHP2 20x/0.40 phase, PHP2 40x/0.60 phase)

Revolving nosepiece for 5 objectives

Working distance, mm 4.27 (10x); 8.0 (20х); 3.5 (40x)

Interpupillary distance, mm 48 — 75

Stage, mm 227x208

Stage moving range, mm 77/114

Stage features fixed, with glass plate Ø118mm and mechanical attachment; dish holders: 86x129.5, Ø90mm; 34x77.5mm, Ø68.5mm; 57x82mm, Ø60mm; 29x77.5mm, Ø35mm

Condenser NA 0.6, working distance: 55mm; phase contrast turret

Diaphragm adjustable aperture diaphragm, adjustable iris field diaphragm

Focus coaxial, coarse (with coarse focusing tension adjustment and a lock knob), and fine (0.002mm)

Illumination halogen

Brightness adjustment yes

Power supply 220±22V, 50Hz, AC network

Light source type 12V/30W

Operating temperature range,°C 5...+35

Special features phase contrast condenser (turret) with a free slot and phase annuli plates for 10x, 20x and 40x objectives; centering auxiliary microscope

User level experienced users, professionals

Assembly and installation difficulty level complicated

Application laboratory/medical

Illumination location lower

Research method bright field, phase-contrast microscopy

Pouch/case/bag in set dust cover
