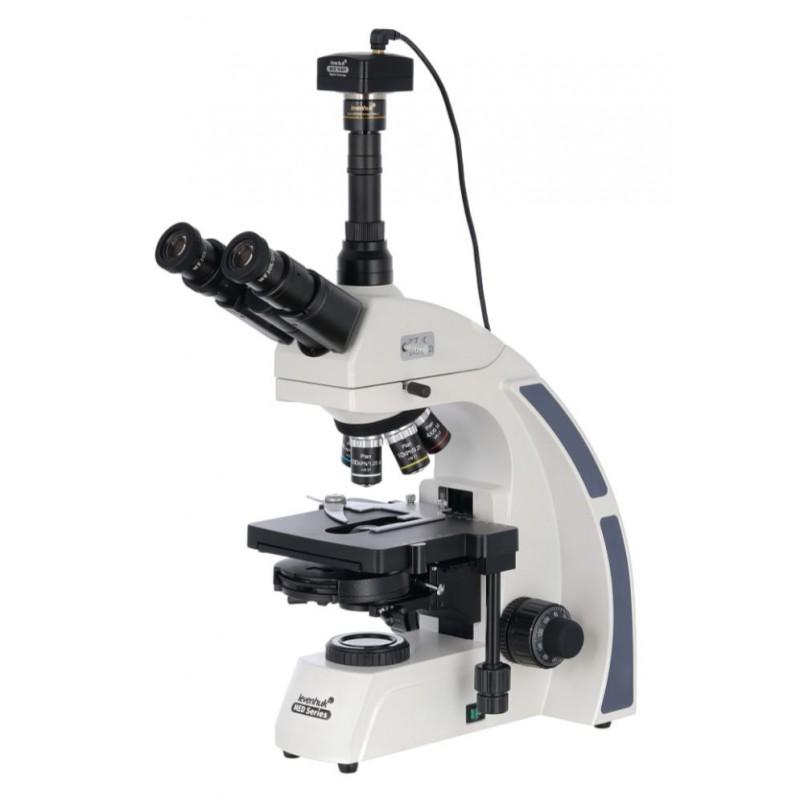

Levenhuk MED D45T Digital Trinocular Microscope

Levenhuk MED D45T trinocular microscope is equipped with a 16 MP digital camera that allows for taking high-resolution photos and videos. The microscope is suitable for phase contrast observations as well as for bright field and dark field ones. It is the perfect asset for a clinical diagnostic center, biochemical laboratory, or microbiological laboratory. The microscope has a provision or Köhler illumination adjustment; all observations are made with a magnification of 40x to 1000x.

The microscopes in the Levenhuk MED 45 series are equipped with an infinity-corrected optical system that is used in professional and high-class microscopes. This system includes Infinity PlanAchromat objectives and allows for obtaining clear, high contrast images with a high level of flatness.

One of the most important features of an infinity-corrected optical system is that it allows for installing any additional parts in the optical path between objective lenses and an ocular tube. The additional parts include polarizers and epi-fluorescence light. All in all, modular design and simple operation make Levenhuk MED 45 optimal microscopes for use in different kinds of microscopy and working in hematological, histological, microbiological, and other laboratories.

The trinocular head consists of the binocular visual part inclined by 30 degrees and the vertical eyepiece tube where the digital camera is positioned. The kit includes a camera with a 16 MP sensor. It can be used to transmit images from the objective to an external screen as well as to take photos of specimens and videos of studies. The camera is connected to the PC via a USB cable included in the kit. In addition, image editing software can be installed from the disc.

Optical accessories include phase contrast plan achromatic objective lenses of various magnification and 10x wide field eyepieces with diopter adjustment. Objective lenses 40x and 100x are fitted with spring rims that protect the optics from incidental damage. The optical system produces clear and high-contrast images without chromatic aberration. A 100x objective lens is used for oil immersion. All accessories are made of optical glass with anti-fungal coating.

The double-coordinate stage has a mechanical scale that helps to promptly and accurately place specimens under the objective. Coarse and fine focusing is available. Köhler illumination adjustment is available. An LED light is located at the bottom and has a brightness adjustment. The phase contrast condenser can be used for dark field studies by the “dry” method.

The light is powered by an AC power supply.

Features:

• Trinocular head, magnification range of 40x to 1000x
• Infinity-corrected phase contrast plan achromatic optical system
• Wide-field eyepieces with diopter adjustment
• Phase contrast condenser with dark field
• Lower LED light with brightness adjustment
• Köhler illumination is available
• 16MP digital camera is included

Caution:

Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Levenhuk MED D45T Digital Trinocular Microscope is also compatible with other Levenhuk digital cameras (additional cameras are purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece. This microscope is also compatible with any other digital microscope cameras.

The kit includes:

• Microscope base with a stand
• 360° rotatable trinocular head
• Infinity-corrected phase contrast plan achromatic objective lenses: 4x, 10x, 40xs, 100xs (oil) with anti-fungal coating
• Wide-field eyepieces: WF10x/22mm with anti-fungal coating (2 pcs)
• Phase contrast device (dark field)
• Filters: blue, green, yellow
• Bottle of immersion oil
• LED (5 W)
• Fuse (2 pcs)
• Power cord for microscope
• Dust cover
• 16MP digital camera
• Camera adapter
• Camera mount
• USB cable for connecting and charging the camera
• CD with software and drivers
• User manual and lifetime warranty

Specifications

Product ID 74010

Brand Levenhuk, Inc., USA

Warranty lifetime

EAN 5905555005089

Package size (LxWxH) 50x43x28

Shipping Weight 10.5

Type biological, light/optical, digital

Head trinocular

Optics material optical glass with anti-fungal coating

Nozzle 360 ° rotatable

Head inclination angle 30 °

Magnification, x 40 — 1000

Eyepiece tube diameter, mm 30mm (binocular head), 23.2 mm (third vertical tube)

Eyepieces WF10x/22mm, wide-field with diopter adjustment (2 pcs.)

Objectives infinity-corrected phase contrast plan achromatic: 4x, 10x, 40xs, 100xs (oil)

Revolving nosepiece for 5 objectives

Interpupillary distance, mm 48 — 75

Stage, mm 180x150

Stage moving range, mm 75/50

Stage features mechanical double-layer

Eyepiece diopter adjustment, diopters ±5

Condenser phase contrast (with dark field)

Focus coaxial, coarse (0.5 mm) and fine (0.002 mm), with rack and pinion

Body metal

Illumination LED

Brightness adjustment yes

Power supply 100–240V

Light source type 5W, 85–230 V AC

Light filters blue, green, yellow

Additional collector lens, Köhler illumination

User level experienced users, professionals

Assembly and installation difficulty level complicated

Application laboratory/medical

Illumination location lower

Research method bright field, dark field, phase-contrast microscopy

Digital camera included yes

Pouch/case/bag in set dust cover

Maximum resolution 4632x3488

Megapixels 16

Sensor element 1/2.33"

Pixel size, μm 1.335x1.335

Video recording yes

Image format *.jpg, *.bmp, *.png, *.tif and others

Video format output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later)

Spectral range, nm 380–650

White balance manual, automatic

Exposure control 0.2–2000μs

Frame rate 2@4632x3488, 8@2320x1740, 11@1536x1160

Usage location the third 23.2mm ocular tube of the microscope

Software, drivers LevenhukLite

Programmable options image size, brightness, shutter time

Output USB 2.0

System requirements Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM

Camera power supply via USB cable
