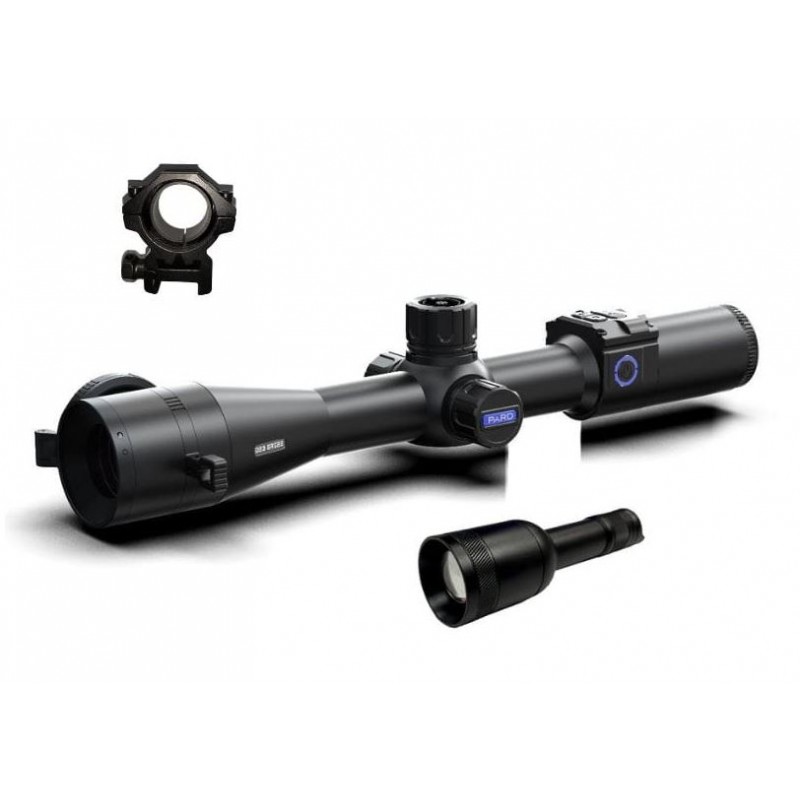

PARD DS35 Night Vision Scope + NOXAR 940 bundle

Ultra-clear Display. Beautifully Vibrant

The DS3x series uses an 800*800 LTPS circular display, which delivers high-clarity images with rich contrast and has an extra-wide field of view for enhanced situational awareness. Viewing feels more natural, like you are viewing from a traditional day scope.

Innovative Image Shift Zero

It’s now easier and more convenient to zero your scope. The image will shift to align with the impact point, instead of shifting the position of the reticle. The crosshairs will always remain fixed in the center allowing you to use the entire field of view.

• Easier to sight your scope
• Wide field of view

Focus-free Lens Cap

The lens cap was designed based on the pinhole theory, so that when it gets too bright during the day, you can use the lens cap as a sunshade and then open the small hole. There is no need to refocus the scope, when observing different targets at different distances.

Extremely Sensitive CMOS Sensor

The CMOS 0.001 low lux image sensor performs well in low light and delivers higher resolution images. The DS35 has a 2560*1440 (2K) sensor to suit your needs.

Accurate Ballistic Calculator

The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. The advanced technology helps you to improve your accuracy by calculating precise aiming points for your next shot placement.

• Quickly indicate the precise aiming point
• Accurately place your shot

Direction Adjustable IR Light

You can unscrew the IR head and point the IR light in your desired direction. The IR light helps in target identification and is ideal for spotting and navigation.

Model DS35

Sensor

Resolution(px) 2560*1440

Pixel size(um) 2.9um

Sensitivity(lux) 0.001lux

Frame rate(fps) 30fps(night); 60fps (day)

Image Engine PARD VLEA

Optics

Objective lens 70mm F2.4

Optical Magnification(x) 5.6x

Digital zoom(x) 2x

PIP(x) 2x

Continuous digital zoom 5.6-22.4x

Field of view (HxV) 3.4º, 3.4º, 4.8º

Focus range 5m-∞

Eye relief(mm) 100mm

Exit pupil(mm) 10mm

Diopter adjustment(°) TBD

IR Illuminator

IR Type VCSEL

IR power 5W

IR illuminating level 3 levels

IR distance(m) 350m

IR Wavelength(nm) 940nm

Display

Type IPS LCD

Resolution(px) 800*800

Reticle Style 6

Reticle Color white,yellow,green

Color mode Color,Mono BW,Mono Green,Mono Yellow

Photo / Video

Photo resolution(px) 2560*1440

Photo format JPG

Video resolution(px) 1920*1080

Video format MP4

Storage(GB) TF card(128GB)

Main function

PIP Yes

Ballistic calculator Yes

Range unit selection meter/yard

Gyroscope Yes

Self-activated recording Yes

Auto recording Yes

Loop recording Yes

Time stamp Yes

Record audio Yes

Beep sound Yes

Exposure compensation Yes

Interfaces

USB Type-C TYPE C

HDMI Output Yes

Connections

WiFi Yes

Supported Apps PardVision

Power Supply

Battery type Lithium Ion18650

Output voltage(V) 3.7

Operating time(h,max) 8

External power supply(V) USB Type-C

Environmental characteristic

Degree of protection IP67

Operating temp(°C) -20 – 50

Recoil Power(J) 1000G

Material

Housing Aluminium Alloy

Objective lens Glass

Measurement

Product dimension(L x W x H, mm) L350mm*W88mm*H95mm(W/O Long Eyepiece) L410mm*W88mm*H95mm(W/ Long Eyepiece)

N.W/pcs(without battery, g) 680g(W/O Battery)
