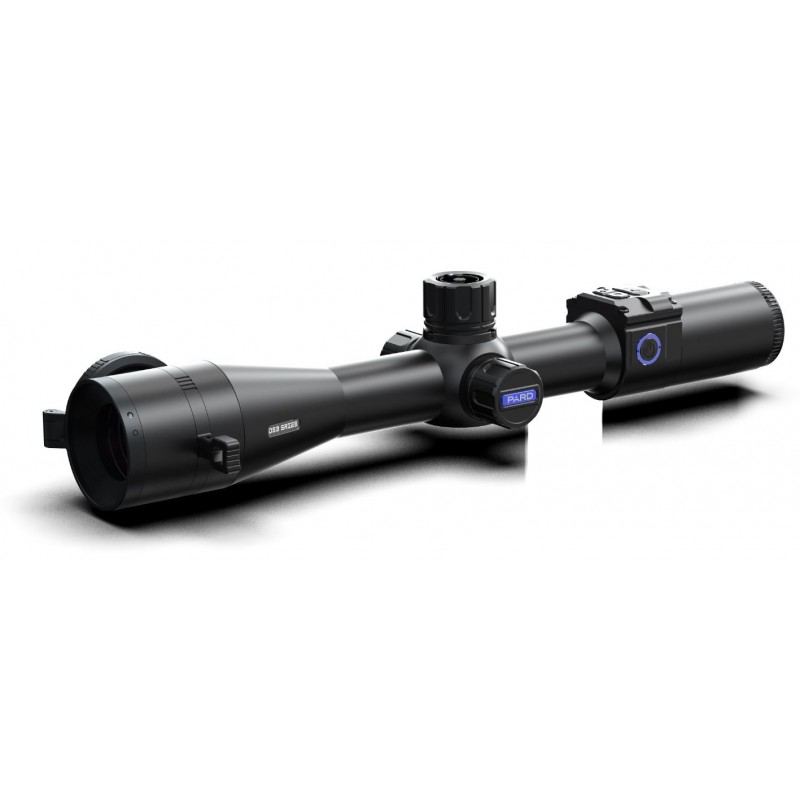

PARD DS35 850 nm Night Vision Scope with Ultra-Clear Display and Advanced Features

Ultra-clear Display. Beautifully Vibrant

Experience unparalleled clarity with the PARD DS35 Night Vision Scope featuring an 800x800 LTPS circular display. This scope provides high-clarity images with rich contrast and an extra-wide field of view, ensuring a natural viewing experience akin to traditional day scopes.

Innovative Image Shift Zero

Zeroing your scope has never been easier. The image shifts to align with the impact point, allowing the crosshairs to remain centered. This ensures you can use the entire field of view for greater accuracy.

• Easier to sight your scope
• Wide field of view

Focus-free Lens Cap

Utilizing the pinhole theory, the lens cap doubles as a sunshade, allowing you to maintain focus without adjustments, even when switching targets at varying distances during bright daylight.

Extremely Sensitive CMOS Sensor

Equipped with a CMOS 0.001 low lux image sensor, the DS35 excels in low light, delivering high-resolution images. The 2560x1440 (2K) sensor is designed to meet your night vision needs.

Accurate Ballistic Calculator

Enhance your shooting precision with an integrated ballistic calculator that computes bullet trajectory parameters like velocity, weight, and zero range, providing precise aiming points for your next shot.

• Quickly indicate the precise aiming point
• Accurately place your shot

Direction Adjustable IR Light

Customize your IR illumination by adjusting the IR head, perfect for target identification and navigation. The IR light helps in spotting and extends up to 350 meters.

Technical Specifications

Model: DS35

Sensor

Resolution: 2560x1440

Pixel size: 2.9um

Sensitivity: 0.001 lux

Frame rate: 30fps (night); 60fps (day)

Image Engine: PARD VLEA

Optics

Objective lens: 70mm F2.4

Optical Magnification: 5.6x

Digital zoom: 2x

Continuous digital zoom: 5.6-22.4x

Field of view: HxV 3.4º, 3.4º, 4.8º

Focus range: 5m - ∞

Eye relief: 100mm

Exit pupil: 10mm

IR Illuminator

Type: VCSEL

Power: 5W

Illuminating levels: 3 levels

Distance: up to 350m

Wavelength: 850nm

Display

Type: IPS LCD

Resolution: 800x800

Reticle Style: 6 styles

Reticle Color: White, Yellow, Green

Color Modes: Color, Mono BW, Mono Green, Mono Yellow

Photo / Video

Photo resolution: 2560x1440

Photo format: JPG

Video resolution: 1920x1080

Video format: MP4

Storage: TF card (128GB)

Main Functions

• PIP: Yes
• Ballistic calculator: Yes
• Range unit selection: Meter/Yard
• Gyroscope: Yes
• Self-activated recording: Yes
• Auto recording: Yes
• Loop recording: Yes
• Time stamp: Yes
• Record audio: Yes
• Beep sound: Yes
• Exposure compensation: Yes

Interfaces

USB Type-C: Yes

HDMI Output: Yes

Connections

WiFi: Yes

Supported Apps: PardVision

Power Supply

Battery type: Lithium Ion 18650

Output voltage: 3.7V

Operating time: Up to 8 hours

External power supply: USB Type-C

Environmental Characteristics

Degree of protection: IP67

Operating temperature: -20°C to 50°C

Recoil power: 1000G

Material

Housing: Aluminium Alloy

Objective lens: Glass

Measurements

Dimensions: L350mm x W88mm x H95mm (without Long Eyepiece), L410mm x W88mm x H95mm (with Long Eyepiece)

Weight: 680g (without battery)
