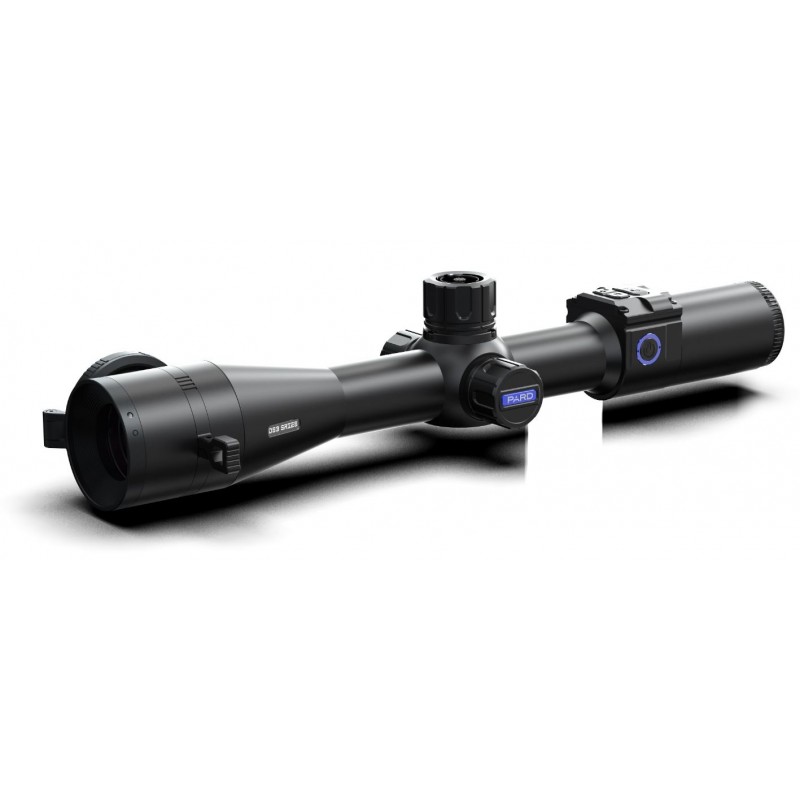

PARD DS35 940 nm Night Vision Scope

PARD DS35 940 nm Ultra-Clear Night Vision Scope

Experience Unmatched Clarity and Performance with the PARD DS35 Night Vision Scope

The PARD DS35 Night Vision Scope is designed for those who require precision and clarity in their nighttime viewing. With its advanced features and durable construction, this scope is perfect for professionals and enthusiasts alike.

Key Features:

Ultra-clear Display with Vibrant Imaging

• 800x800 LTPS circular display for high-clarity images.
• Rich contrast with an extra-wide field of view.
• Natural viewing experience similar to traditional day scopes.

Innovative Image Shift Zero

• Convenient zeroing by aligning the image with the impact point.
• Crosshairs remain fixed in the center of the field of view.
• Improved ease of sighting and wide field of view.

Focus-free Lens Cap

• Designed based on pinhole theory for use as a sunshade.
• No need to refocus when observing targets at varying distances.

Extremely Sensitive CMOS Sensor

• 0.001 lux image sensor for excellent performance in low light.
• 2560x1440 (2K) sensor resolution for high-quality imagery.

Accurate Ballistic Calculator

• Calculates bullet trajectory parameters for improved accuracy.
• Quickly indicates precise aiming points for shot placement.

Direction Adjustable IR Light

• IR head can be unscrewed and directed as needed.
• Ideal for target identification, spotting, and navigation.

Technical Specifications:

Model and Sensor

• Model: DS35
• Resolution: 2560x1440 pixels
• Pixel Size: 2.9 μm
• Sensitivity: 0.001 lux
• Frame Rate: 30fps (night), 60fps (day)
• Image Engine: PARD VLEA

Optics

• Objective Lens: 70mm F2.4
• Optical Magnification: 5.6x
• Digital Zoom: 2x
• Continuous Digital Zoom: 5.6-22.4x
• Field of View (HxV): 3.4º, 3.4º, 4.8º
• Focus Range: 5m to ∞
• Eye Relief: 100mm

IR Illuminator

• Type: VCSEL
• Power: 5W
• Illuminating Levels: 3 levels
• Distance: 350m
• Wavelength: 940nm

Display

• Type: IPS LCD
• Resolution: 800x800 pixels
• Reticle Styles: 6 options
• Reticle Colors: White, Yellow, Green
• Color Modes: Color, Mono BW, Mono Green, Mono Yellow

Photo / Video

• Photo Resolution: 2560x1440 pixels
• Photo Format: JPG
• Video Resolution: 1920x1080 pixels
• Video Format: MP4
• Storage: TF card (128GB)

Main Functions

• PIP: Yes
• Ballistic Calculator: Yes
• Range Unit Selection: Meter/Yard
• Gyroscope: Yes
• Self-activated Recording: Yes
• Auto Recording: Yes
• Loop Recording: Yes
• Time Stamp: Yes
• Record Audio: Yes
• Beep Sound: Yes
• Exposure Compensation: Yes

Interfaces

• USB Type-C: TYPE C
• HDMI Output: Yes

Connections

• WiFi: Yes
• Supported Apps: PardVision

Power Supply

• Battery Type: Lithium Ion 18650
• Output Voltage: 3.7V
• Operating Time: Up to 8 hours
• External Power Supply: USB Type-C

Environmental Characteristics

• Degree of Protection: IP67
• Operating Temperature: -20°C to 50°C
• Recoil Power: 1000G

Material

• Housing: Aluminium Alloy
• Objective Lens: Glass

Measurements

• Dimensions (L x W x H): L350mm x W88mm x H95mm (without Long Eyepiece), L410mm x W88mm x H95mm (with Long Eyepiece)
• Weight: 680g (without battery)

The PARD DS35 940 nm Night Vision Scope is your ultimate companion for night-time adventures, offering unparalleled clarity, precision, and ease of use. Enhance your situational awareness and accuracy with this advanced optical device.
