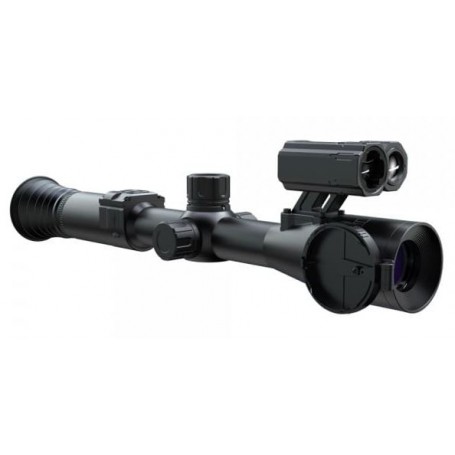

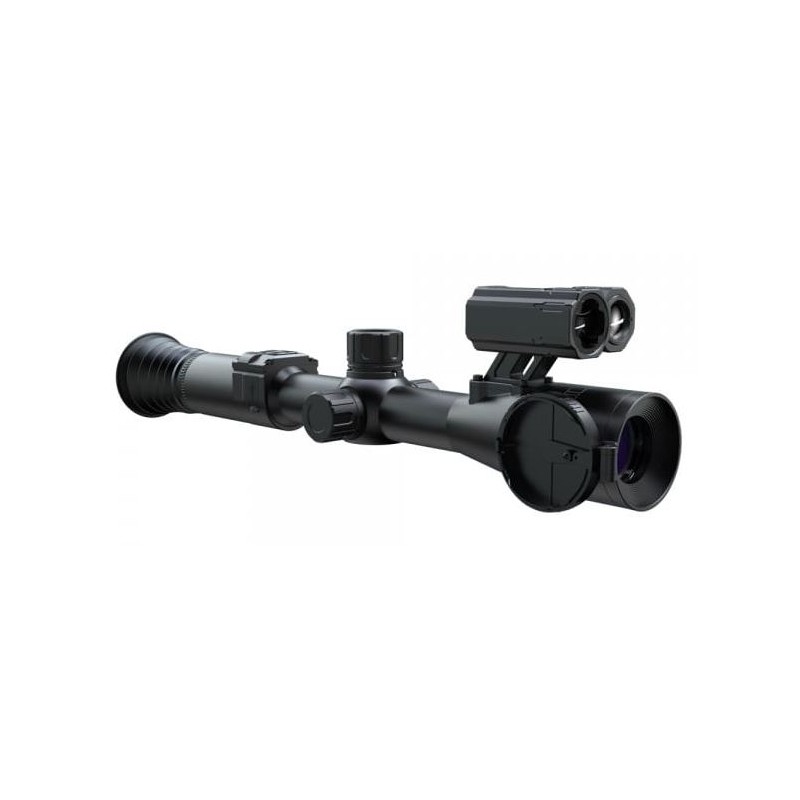

PARD DS35 LRF 850 nm Night Vision Scope

The PARD DS35 LRF 850 nm Night Vision Scope offers cutting-edge technology for enhanced visibility and precision in low-light conditions. With its advanced features and robust design, this scope is perfect for hunters and tactical professionals seeking superior performance.

Ultra-clear Display with Vibrant Clarity

Experience a display like no other with the DS35's 800*800 LTPS circular screen. It provides high-clarity images with rich contrast and an extra-wide field of view for improved situational awareness, mimicking the natural feel of a traditional day scope.

Innovative Image Shift Zero Technology

Enjoy the ease of zeroing your scope with the innovative Image Shift Zero. The image itself shifts to align with your impact point, keeping the crosshairs fixed in the center and allowing you to utilize the entire field of view.

• Effortless sighting of your scope
• Expansive field of view

Focus-free Lens Cap

Utilizing pinhole theory, the focus-free lens cap acts as a sunshade on bright days. Simply open the small hole without needing to refocus, regardless of target distance.

Extremely Sensitive CMOS Sensor

The DS35 is equipped with a CMOS 0.001 low lux image sensor, delivering high-resolution images even in low light. Its 2560*1440 (2K) sensor ensures you never miss a detail.

Accurate Ballistic Calculator

Integrated ballistic calculator helps you calculate bullet trajectory parameters, enhancing accuracy by providing precise aiming points for your next shot.

• Quickly identifies precise aiming points
• Ensures accurate shot placement

Adjustable Directional IR Light

Customize your IR light direction with an adjustable IR head, perfect for target identification, spotting, and navigation.

Technical Specifications

Model

DS35

Sensor

• Resolution: 2560*1440 pixels
• Pixel size: 2.9μm
• Sensitivity: 0.001 lux
• Frame rate: 30fps (night), 60fps (day)
• Image Engine: PARD VLEA

Optics

• Objective lens: 70mm F2.4
• Optical Magnification: 5.6x
• Digital zoom: 2x
• Continuous digital zoom: 5.6-22.4x
• Field of view: 3.4º, 3.4º, 4.8º
• Focus range: 5m to ∞
• Eye relief: 100mm
• Exit pupil: 10mm

IR Illuminator

• Type: VCSEL
• Power: 5W
• Illuminating levels: 3
• Distance: 350m
• Wavelength: 850nm

Display

• Type: IPS LCD
• Resolution: 800*800 pixels
• Reticle styles: 6
• Reticle colors: White, Yellow, Green
• Color modes: Color, Mono BW, Mono Green, Mono Yellow

Photo / Video

• Photo resolution: 2560*1440 pixels
• Photo format: JPG
• Video resolution: 1920*1080 pixels
• Video format: MP4
• Storage: TF card up to 128GB

Main Functions

• PIP: Yes
• LRF detection range: 1000m
• Ballistic calculator: Yes
• Range unit selection: Meter/Yard
• Gyroscope: Yes
• Self-activated recording: Yes
• Auto recording: Yes
• Loop recording: Yes
• Time stamp: Yes
• Record audio: Yes
• Beep sound: Yes
• Exposure compensation: Yes

Interfaces

• USB Type-C
• HDMI Output: Yes

Connections

• WiFi: Yes
• Supported Apps: PardVision

Power Supply

• Battery type: Lithium Ion 18650
• Output voltage: 3.7V
• Operating time: Up to 8 hours
• External power supply: USB Type-C

Environmental Characteristics

• Degree of protection: IP67
• Operating temperature: -20 to 50°C
• Recoil Power: 1000G

Material

• Housing: Aluminium Alloy
• Objective lens: Glass

Measurements

• Dimensions (L x W x H): 350mm x 88mm x 95mm (without Long Eyepiece), 410mm x 88mm x 95mm (with Long Eyepiece)
• Weight (without battery): 680g
