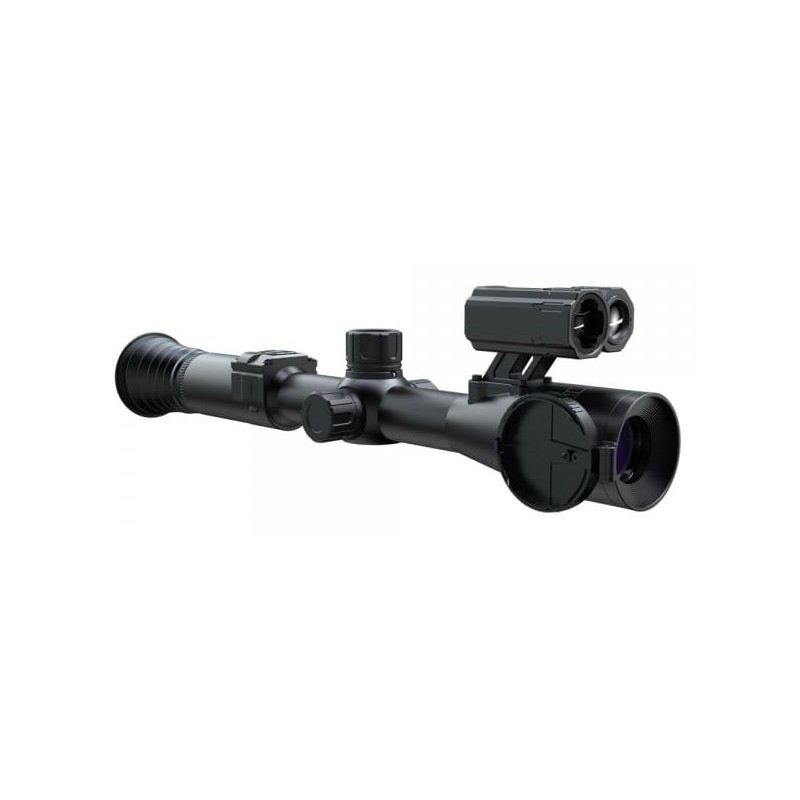

PARD DS35 LRF 940 nm Night Vision Scope

PARD DS35 LRF 940 nm Night Vision Scope - Advanced Night Vision Technology with Precision Features

Ultra-clear Display. Beautifully Vibrant

Experience the ultra-clear display of the PARD DS35 LRF 940 nm Night Vision Scope, which features an 800x800 LTPS circular display. This advanced display offers high-clarity images with rich contrast and an extra-wide field of view, providing a viewing experience that feels natural, akin to using a traditional day scope.

Innovative Image Shift Zero

Zeroing your scope has never been easier with the innovative Image Shift Zero technology. Instead of moving the reticle, the image shifts to align with the impact point, keeping the crosshairs fixed in the center to utilize the entire field of view efficiently.

• Easier to sight your scope
• Wide field of view

Focus-free Lens Cap

The unique lens cap, based on pinhole theory, acts as a sunshade in bright conditions. Simply open the small hole to maintain clarity without the need for refocusing, even when observing various targets at different distances.

Extremely Sensitive CMOS Sensor

Equipped with a CMOS 0.001 low lux image sensor, the scope excels in low light conditions, delivering higher resolution images. The DS35 features a 2560x1440 (2K) sensor to meet demanding visibility requirements.

Accurate Ballistic Calculator

Enhance your shooting accuracy with the integrated ballistic calculator. It calculates bullet trajectory parameters such as velocity, bullet weight, and zero range, providing precise aiming points for improved shot placement.

• Quickly indicate the precise aiming point
• Accurately place your shot

Direction Adjustable IR Light

The IR light is directionally adjustable by unscrewing the IR head, making it ideal for target identification, spotting, and navigation.

Technical Specifications

Model: DS35

Sensor

• Resolution (px): 2560x1440
• Pixel size (µm): 2.9
• Sensitivity (lux): 0.001
• Frame rate (fps): 30 (night), 60 (day)
• Image Engine: PARD VLEA

Optics

• Objective lens: 70mm F2.4
• Optical Magnification: 5.6x
• Digital zoom: 2x
• PIP: 2x
• Continuous digital zoom: 5.6-22.4x
• Field of view (HxV): 3.4º, 3.4º, 4.8º
• Focus range: 5m-∞
• Eye relief (mm): 100
• Exit pupil (mm): 10
• Diopter adjustment (°): TBD

IR Illuminator

• IR Type: VCSEL
• IR power: 5W
• IR illuminating level: 3 levels
• IR distance (m): 350
• IR Wavelength (nm): 940

Display

• Type: IPS LCD
• Resolution (px): 800x800
• Reticle Style: 6
• Reticle Color: white, yellow, green
• Color mode: Color, Mono BW, Mono Green, Mono Yellow

Photo / Video

• Photo resolution (px): 2560x1440
• Photo format: JPG
• Video resolution (px): 1920x1080
• Video format: MP4
• Storage (GB): TF card (128GB)

Main Function

• PIP: Yes
• LRF detection range (m): 1000
• Ballistic calculator: Yes
• Range unit selection: meter/yard
• Gyroscope: Yes
• Self-activated recording: Yes
• Auto recording: Yes
• Loop recording: Yes
• Time stamp: Yes
• Record audio: Yes
• Beep sound: Yes
• Exposure compensation: Yes

Interfaces

• USB Type-C: Yes
• HDMI Output: Yes

Connections

• WiFi: Yes
• Supported Apps: PardVision

Power Supply

• Battery type: Lithium Ion 18650
• Output voltage (V): 3.7
• Operating time (h, max): 8
• External power supply (V): USB Type-C

Environmental Characteristics

• Degree of protection: IP67
• Operating temp (°C): -20 – 50
• Recoil Power (J): 1000G

Material

• Housing: Aluminium Alloy
• Objective lens: Glass

Measurement

• Product dimension (L x W x H, mm): L350mm x W88mm x H95mm (W/O Long Eyepiece), L410mm x W88mm x H95mm (W/ Long Eyepiece)
• N.W/pcs (without battery, g): 680g (W/O Battery)
